Configuration; Chapter 15. Call Control (Only For Vigor2500Vi Series) - Draytek Vigor2500V Manual

15.2

Configuration

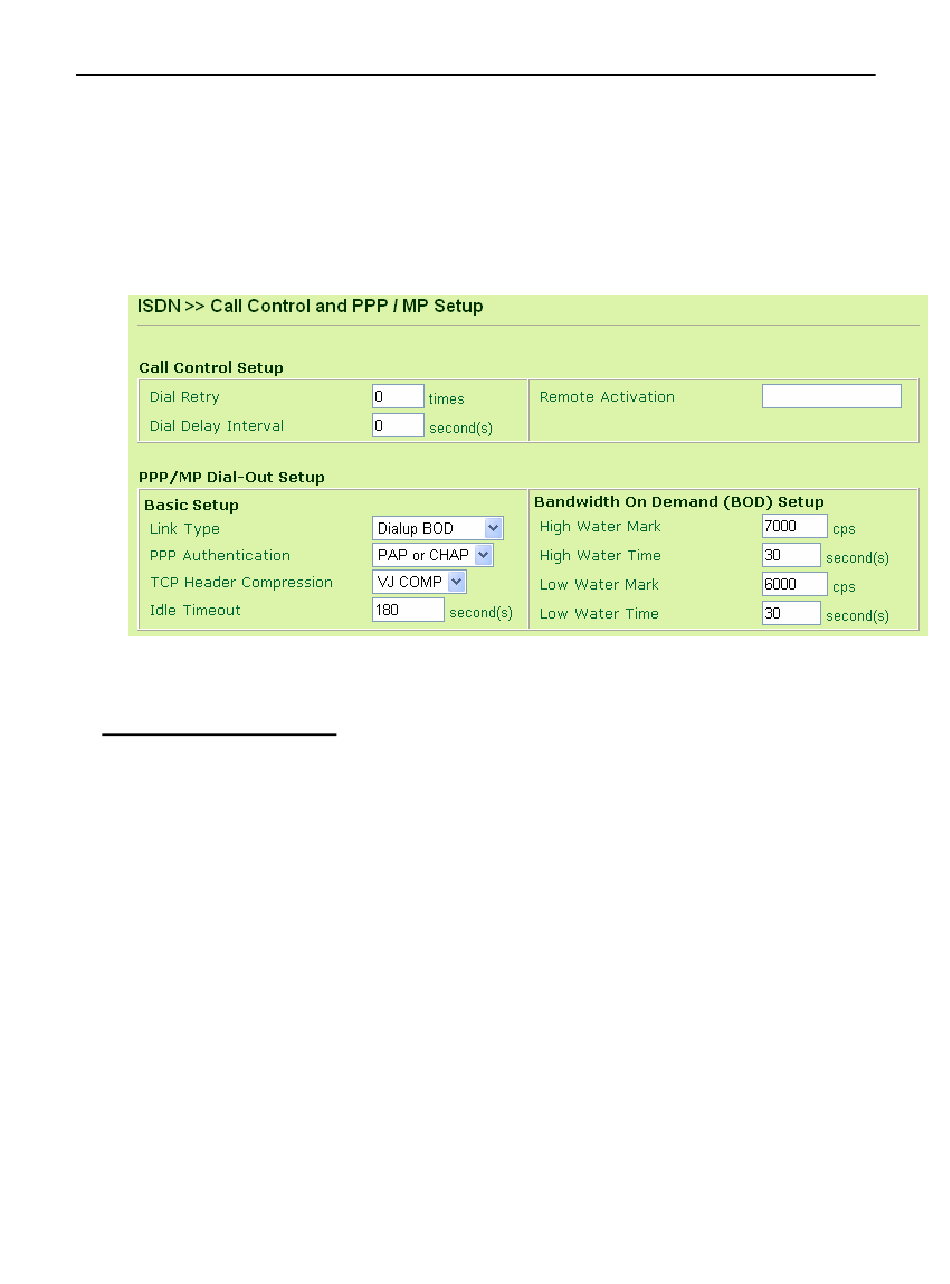

After you click Call Control and PPP/MP Setup. The following screen will
automatically appear on your browser.
Call Control Setup:
On the Call Control and PPP/MP Setup setup page, you will see Dial Retry
and Dial Delay Interval. These two parameters set global settings for ISDN
dialup access.
Dial Retry: Specify the dial retry counts per triggered packet. A triggered
packet is any packet whose destination is outside the local network. The
default setting is no dial retry. If set to 5, for each triggered packet, the
router will dial 5 times until it is connected to the ISP or remote access
router.
Dial Delay Interval: Specify the interval between dialup retry. By default,
the interval is 0 seconds.
Call Control
15-2
