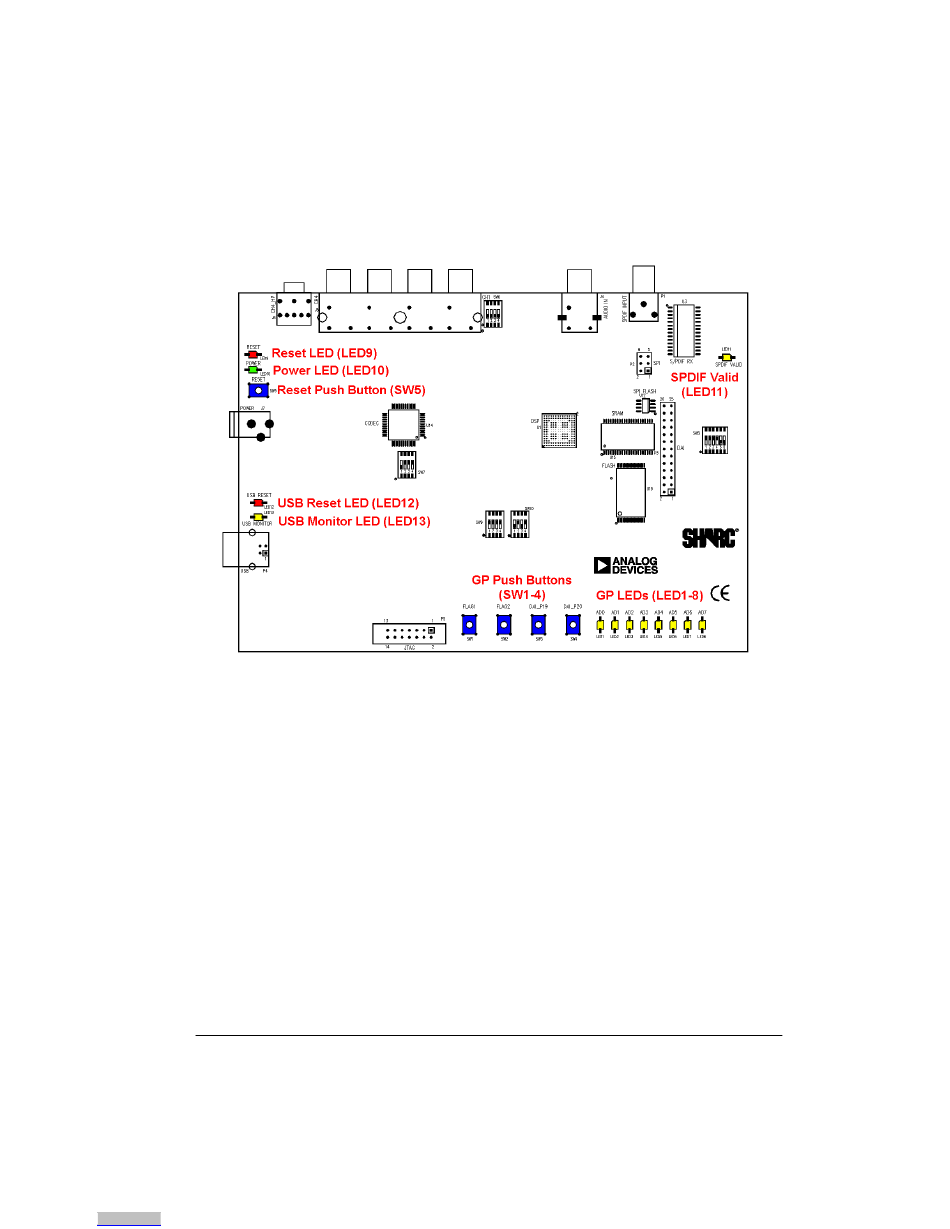

Figure 3-6. LED and Push Button Locations
General Purpose LEDs (LED8–1)
Eight general-purpose LEDs are connected to the DSP through a latch on
signals
. These LEDs can be accessed by writing to the
AD7–0
or by writing to a memory address. Refer to
tons" on page 2-6
for more information.
ADSP-21262 EZ-KIT Lite Evaluation System Manual
EZ-KIT Lite Hardware Reference
"Using LEDs and Push But-
registers
FLAG
3-13
