3. Select the Start button on the Windows taskbar, then choose
Programs–>Analog Devices–>VisualDSP++ 3.5 for 32-bit proces-
sors–>VisualDSP++ Environment.
If you are running VisualDSP++ for the first time, go to step 5. If
you already have existing sessions, the Session List dialog box
appears on the screen.
4. Click New Session.
5. The New Session dialog box, shown in
screen.

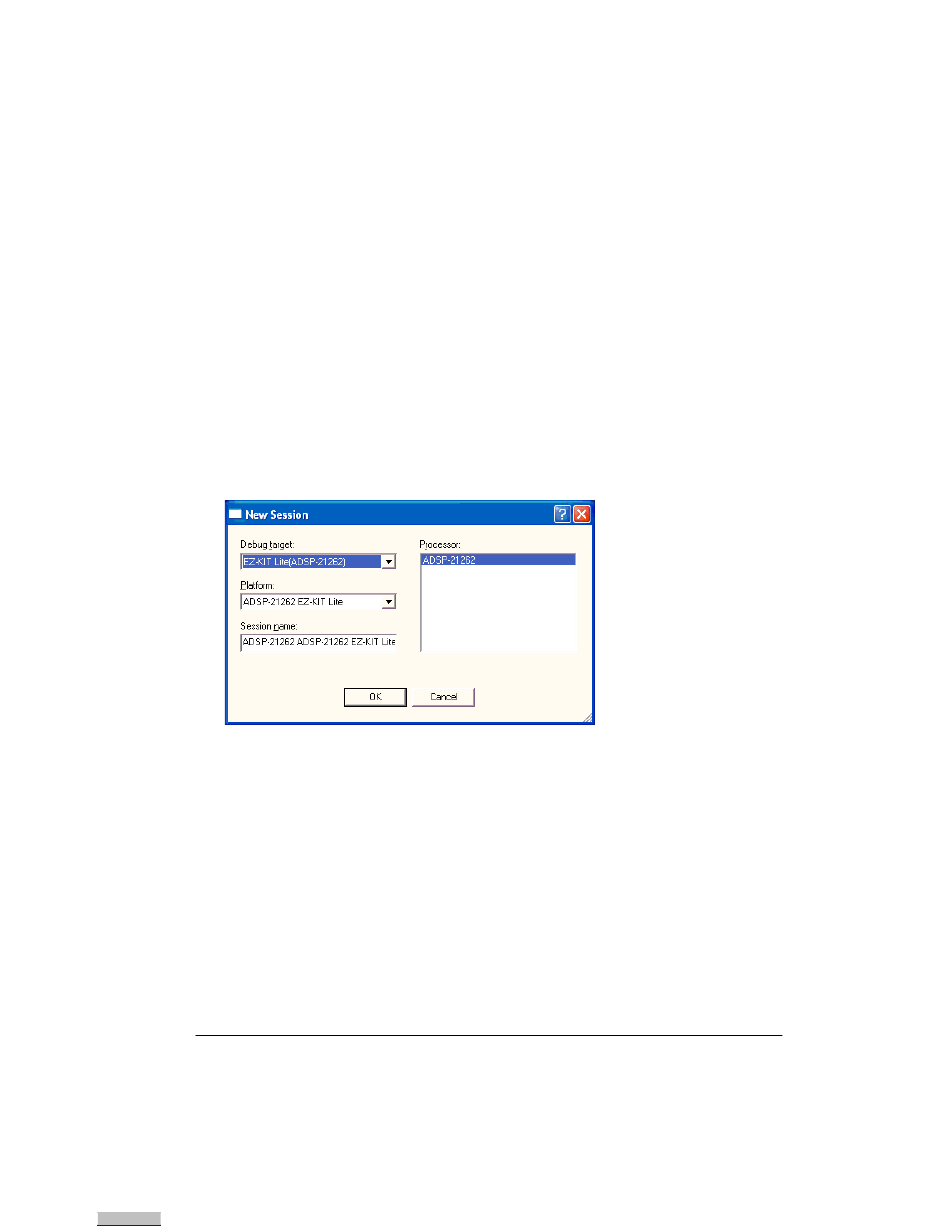

Figure 1-13. New Session Dialog Box
6. In Debug Target, choose EZ-KIT Lite (ADSP-21262).
7. In Processor, choose the appropriate processor, ADSP-21262.
8. Type a new target name in Session Name or accept the default
name.
9. Click OK to return to the Session List. Highlight the new session
and click Activate.
ADSP-21262 EZ-KIT Lite Evaluation System Manual
Getting Started
Figure 1-13, appears on the
1-17
