Main Window (LCD)
The Main Window displays information concerning the
RF levels at each antenna per channel, the condition
of the Pilot Tone (Hybrid) or Link (digital), and battery
conditions for both the receiver and the associated
transmitters. It is also the access portal to menu selec-
tions for setting up the receiver and searching for clear
frequency channels. (See Menu Selections from Main
window and Frequency Scan Mode.)

Navigating the Menus

From the Main Window, press MENU/SEL to enter the
menu, then navigate with the UP and DOWN arrows to
highlight the desired setup item. Press MENU/SEL to
enter the setup screen for that item. Refer to the menu
map on the following pages.
Replacing the Batteries
Lift the battery door to unlatch, push slightly forward
and and open it.
Observe the battery contacts inside the compartment.
The larger contact is the neg. (-) terminal and the
smaller contact is the pos. (+) terminal.
Insert the contact end of the battery first, making sure
the large terminals are aligned with the large contacts in
the compartment.
Depress the batteries slightly to allow the door to close,
then push slightly forward to latch shut. The battery con-
tacts are spring loaded to maintain constant pressure.
The door with snap into place when it is fully closed.
CAUTION: Lithium batteries will expand and
swell if allowed to go into a deep discharge.
Be sure to remove lithium batteries as soon
as possible after they are depleted. If lithium
batteries are allowed to fully discharge while
still inside the battery compartment, they will
be very difficult to remove.
Stuck lithium batteries can be avoided by
removing the label wrapping around the
battery before use. This will allow the battery
to swell but will still leave enough room in
the compartment for the battery to fall out
normally.
Rio Rancho, NM

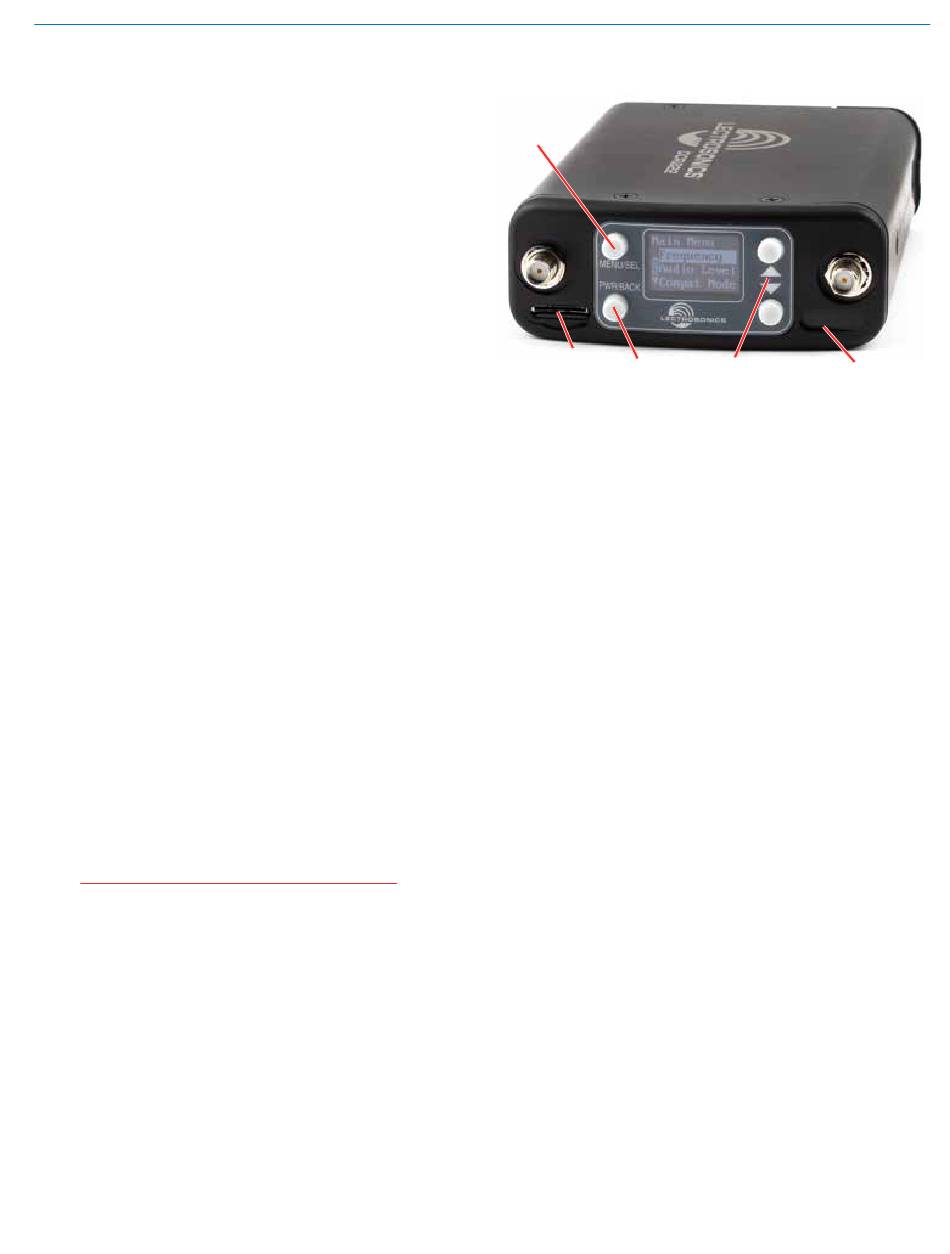

Dual Channel Digital Reciever
MENU/SEL
button
SD Card Slot
PWR/BACK
button
UP/DOWN Arrow
IR Port
buttons
