DCR822

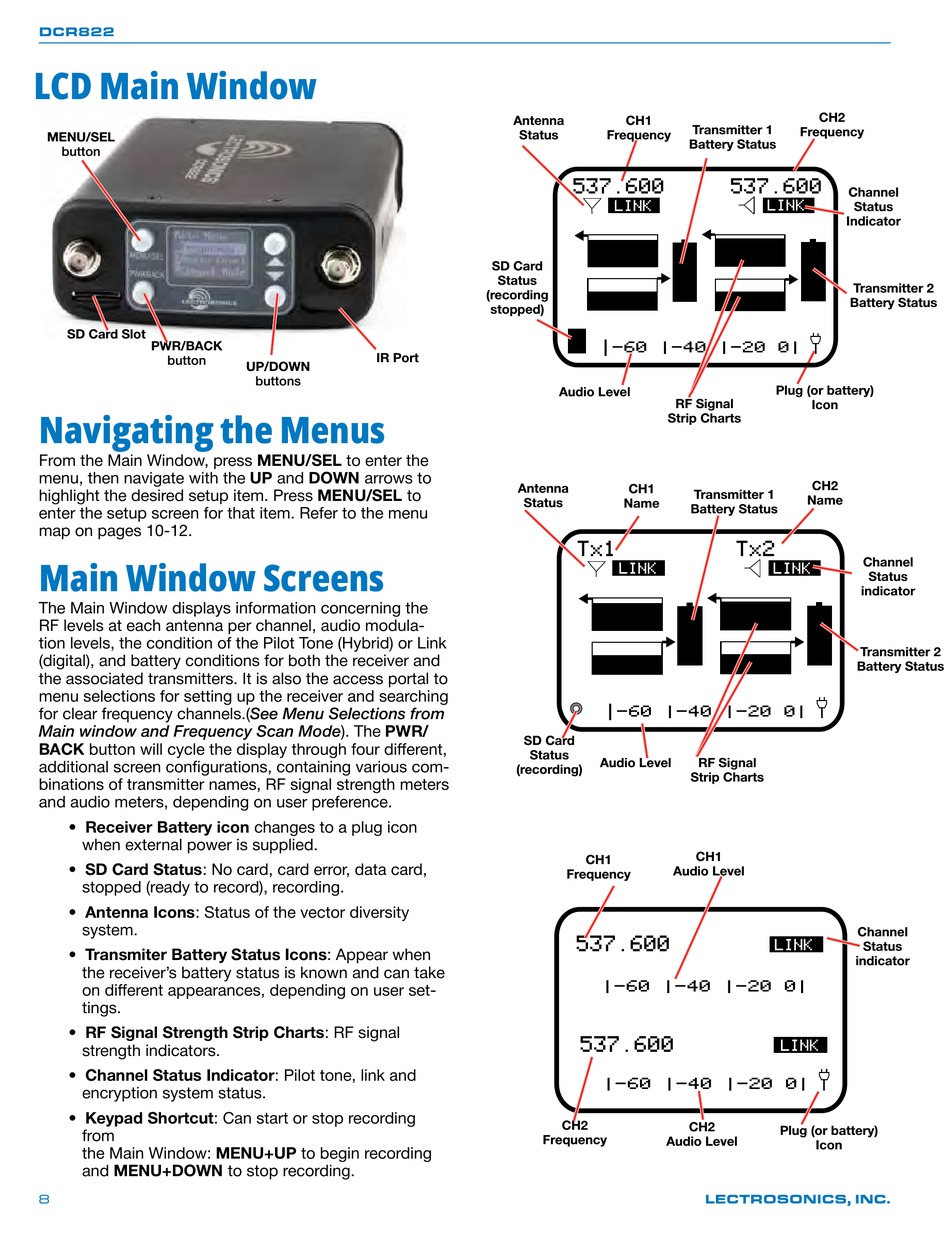

LCD Main Window

MENU/SEL
button
SD Card Slot
PWR/BACK
button

Navigating the Menus

From the Main Window, press MENU/SEL to enter the
menu, then navigate with the UP and DOWN arrows to
highlight the desired setup item. Press MENU/SEL to
enter the setup screen for that item. Refer to the menu
map on pages 10-12.

Main Window Screens

The Main Window displays information concerning the
RF levels at each antenna per channel, audio modula-
tion levels, the condition of the Pilot Tone (Hybrid) or Link
(digital), and battery conditions for both the receiver and
the associated transmitters. It is also the access portal to
menu selections for setting up the receiver and searching
for clear frequency channels.(See Menu Selections from
Main window and Frequency Scan Mode). The PWR/
BACK button will cycle the display through four different,
additional screen configurations, containing various com-
binations of transmitter names, RF signal strength meters
and audio meters, depending on user preference.
• Receiver Battery icon changes to a plug icon
when external power is supplied.
• SD Card Status: No card, card error, data card,
stopped (ready to record), recording.
• Antenna Icons: Status of the vector diversity
system.
• Transmiter Battery Status Icons: Appear when
the receiver's battery status is known and can take
on different appearances, depending on user set-
tings.
• RF Signal Strength Strip Charts: RF signal
strength indicators.
• Channel Status Indicator: Pilot tone, link and
encryption system status.
• Keypad Shortcut: Can start or stop recording
from
the Main Window: MENU+UP to begin recording
and MENU+DOWN to stop recording.
8
IR Port
UP/DOWN
buttons
Antenna CH1
Frequency
Status
5 3 7 . 6 0 0
L I N K

SD Card

Status
(recording
stopped)
| - 6 0 | - 4 0 | - 2 0 0 |
Audio Level
Antenna
CH1
Status
Name
T x 1
L I N K


| - 6 0 | - 4 0 | - 2 0 0 |
SD Card
Status
Audio Level
(recording)
CH1
Frequency
5 3 7 . 6 0 0
| - 6 0 | - 4 0 | - 2 0 0 |
5 3 7 . 6 0 0
| - 6 0 | - 4 0 | - 2 0 0 |
CH2
Frequency
CH2
Transmitter 1
Frequency
Battery Status
5 3 7 . 6 0 0
L I N K


Plug (or battery)
RF Signal
Icon
Strip Charts
CH2
Transmitter 1
Name
Battery Status
T x 2
L I N K


RF Signal
Strip Charts
CH1
Audio Level
L I N K
L I N K
CH2
Plug (or battery)
Audio Level
Icon
LECTROSONICS, INC.
Channel
Status
Indicator
Transmitter 2
Battery Status
Channel
Status
indicator
Transmitter 2
Battery Status
Channel
Status
indicator
