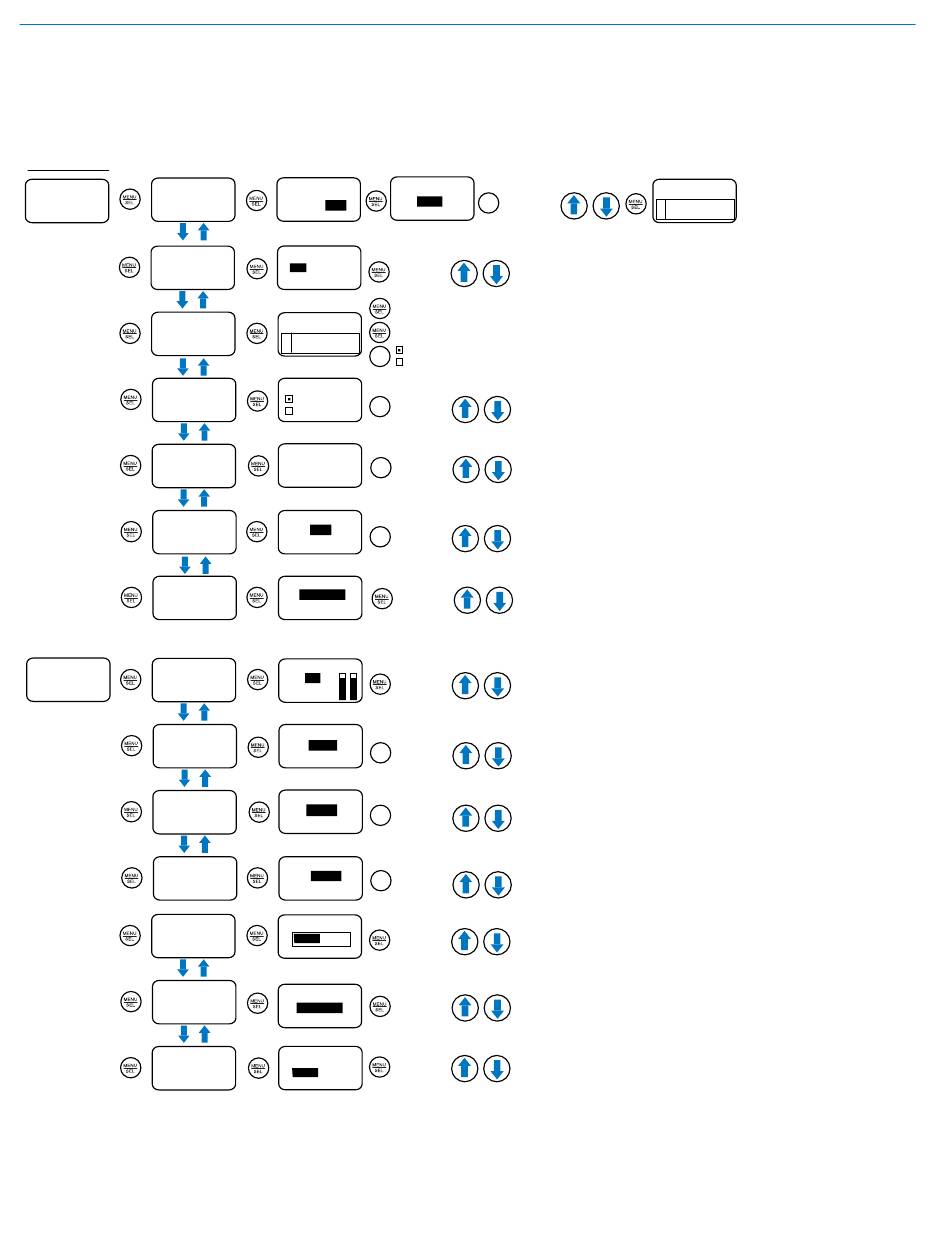

DCR822 LCD Menu Map

The menus presented on the LCD are arranged in a straightforward manner, with those that are likely to be used
more often located at the top of the tree.
Main
RF Setup
Smart Tune
Frequency
Scan
Clear Scan
Group Edit
Diversity
Pilot Bypass
Audio Setup Audio Level
Compat Modes
Output Type
Routing
Smart NR
Talkback
Polarity
Files
SD Card
Takes
10
Record
Frequency
TX1 Range
A1B1
Tune RX 1 1
Select frequency with arrow buttons.
Frequency
607.900 MHz
to toggle.
to pause scan.
Scanning Wide...
470.1 492.6 614.3 to zoom scan.
Keep
BACK
Revert
Clear Scan Data?
Select option with arrow buttons
Yes
to select.
BACK
No
Select option with arrow buttons
Group Setup
to select.
BACK
Diversity
Select option with arrow buttons
Mode: auto
to select.
BACK
Make selection with arrow buttons.
Pilot Bypass
OFF
to toggle.
ON
Level
Make selection with arrow buttons.
Level: +2
0
to toggle.
-20
Tone: ON
-40
-60
Compat
Select option with arrow buttons
Mode: D2
to select.
BACK
Output Type
Select option with arrow buttons
Type: analog
to select.
BACK
Routing
Select option with arrow buttons
RX1 : ANLG1
to select.
BACK
RX2 : ANLG2
Smart NR
to select.
NORM NORM
Talkback
to select.
OFF
ON
Polarity
to select.
POS POS
Files
0002. WAV to select.
0003. WAV
Takes
0002. WAV
to select.
0003. WAV
to stop/save
Recording
Searching...
Select option with arrow buttons
470.1
to select.
BACK
Selects open frequency.
492.6 614.3
