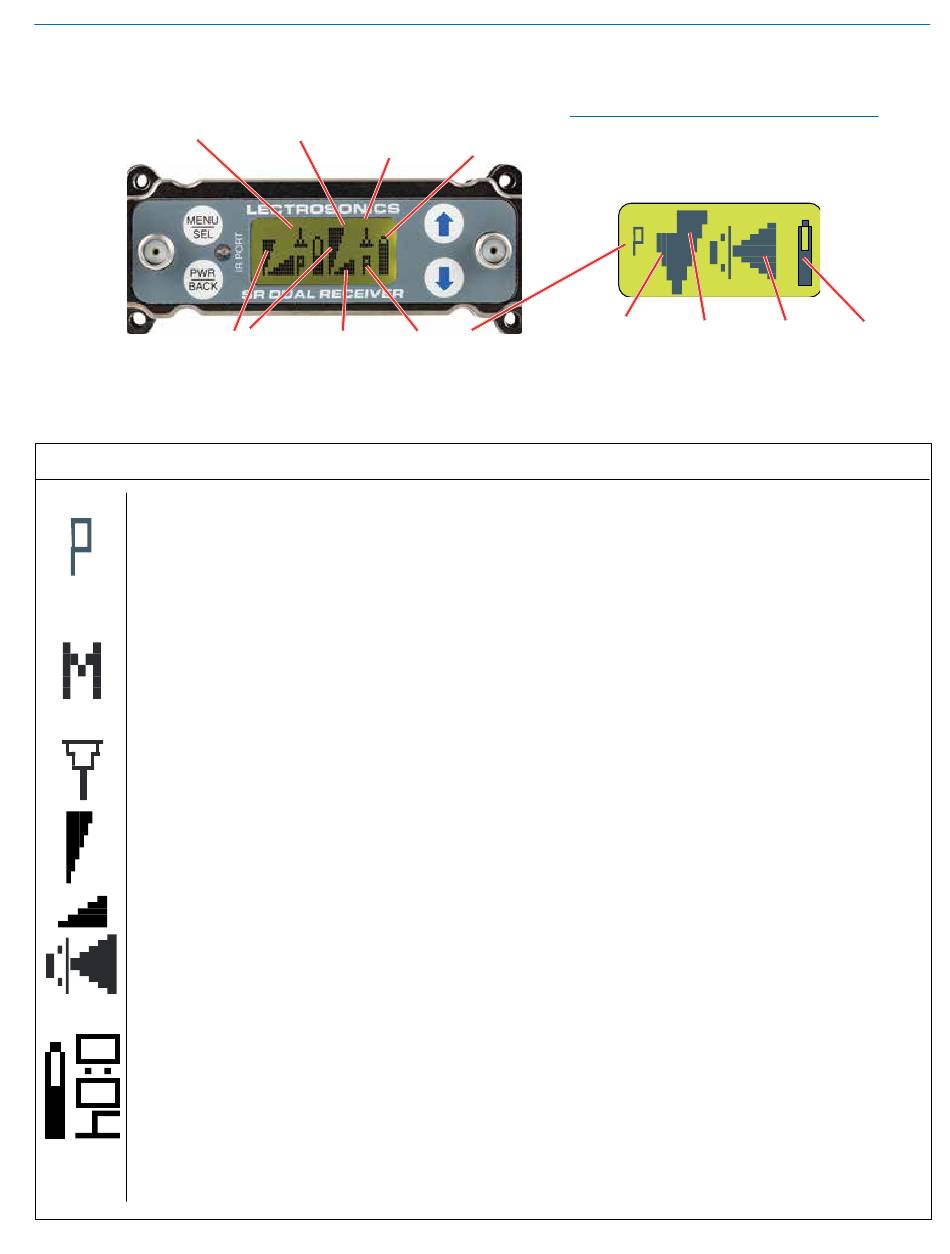

LCD Main Window

Receiver 1
The Main Window displays information concerning
the condition of the pilot tone, antenna phase, RF and
audio signal levels and battery conditions for both the
receiver and the associated transmitter.
Icon Description
Pilot Tone Indicator
A steady "P" icon will be displayed when a pilot tone from the transmitter is present. The icon will
flash if no pilot tone is detected and will change to a small "b" if the pilot tone has been bypassed.
To bypass or enable the pilot tone on Receiver 1, hold MENU/SEL button and press the UP button
briefly. To bypass or enable the pilot tone on Receiver 2, hold MENU/SEL and press the DOWN but-
ton briefly. Bypassing the pilot tone also disables the squelch, regardless of which compatibility mode
has been selected.
Channel Mute
The audio output can be muted on Receiver 1 by holding the MENU/SEL button and holding the UP
button for about a second or more. Receiver 2 can be muted by holding MENU/SEL and then hold-
ing the DOWN button. The same buttons toggle the mute status off. An "M" will appear on the screen
when a channel is muted. In ratio diversity mode, the UP button is used and a signal M appears.
Antenna Phase Indicator
This antenna icon is displayed when the SWITCHING DIVERSITY mode is selected. As the antenna
phase is switched, the symbol will flip vertically.
RF Level
This icon changes in size vertically to indicate the strength of the incoming RF signal.
Audio Levels
One icon is used in the SWITCHED DIVERSITY mode and the other when RATIO DIVERSITY is
selected. The icon changes in size horizontally to indicate the audio level (modulation) of the signal
received from the transmitter. The icon display will change to a solid rectangular block when the audio
signal is being limited in the transmitter.
Battery Levels
A battery icon is displayed on the LCD to indicate the transmitter battery condition. The receiver will
receive a periodic battery status from the transmitter and update the icon in a "fuel guage" manner. In
the example at left, the icon indicates about "half full." When other COMPAT modes are selected, this
area of the LCD will be blank.
If selected in the TXBAT setup screen, a transmitter battery timer is available. It accumulates hours
and minutes whenever the transmitter is turned on, and retains the accumulated time even when the
receiver is off. The icon represents a digital clock readout (rotated 90 degrees clockwise) and in this
example is indicating 4 minutes.
To reset the battery timer, change the selection in TXBAT to something other than a timer
mode, then back to the desired mode.
Rio Rancho, NM
(identical for both models)
Receiver 2 Diversity
Activity
RF Levels Audio Level
NOTE: When the RATIO DIVERSITY mode is
Transmitter
selected, both receivers are combined to pick up
Battery Level
the same transmitter, so the Main Window will
display a single audio channel.
Receiver 1
Pilot Tone
RF Level
Indicator
Pressing the MENU/SEL button accesses the menus
and screens for setting up the receiver and searching
for clear frequency channels.
UHF Digital Hybrid Wireless
Receiver 2 Audio Transmitter
RF Level Level Battery Level
®
