Front Panel Controls and Functions

MENU/SEL Button
The MENU button accesses the available menus and
and selects the desired setting.

Power/Back Button

The Power ON/OFF button is used to turn the receiver
on and off. When browsing menus and making changes
to settings, press back to return to previous menu.

Up/Down Arrow Buttons

The Up/Down arrow buttons are used to scroll the vari-
ous options within each menu selection.
IR (infrared) Port
Settings can be transferred between transmitter and
receiver or receiver and receiver.

microSDHC Memory Card Port

Antenna Port (2)

Rear Panel Features

XLR Audio Output Jacks

This is a standard XLR configuration with pin 2 "posi-
tive" with reference to hand-held and plug-on transmit-
ters. With lavaliere microphones and belt-pack trans-
mitters, however, phase will vary with different types of
microphones (2-wire vs. 3-wire for example). The audio
output is balanced but not floating, so an unbalanced
signal is available using pin 1 as ground and pin 2 as
signal, leaving pin 3 open.

Power Input Jack

The power input jack can accept 9-17 VDC - the center
pin is positive and sleeve is ground. The input is diode
protected to prevent damage if the power is applied
with reversed polarity, but the unit will not work until the
reversed polarity condition is fixed. The unit is sent with
a locking plug.

USB Port

The USB port can be used to connect the DCR822 to
the Lectrosonics Wireless Designer software (pending).

Battery Compartment

Four AA batteries are installed as marked on the side
panel of the receiver. The battery door is hinged and
remains attached to the housing.
8

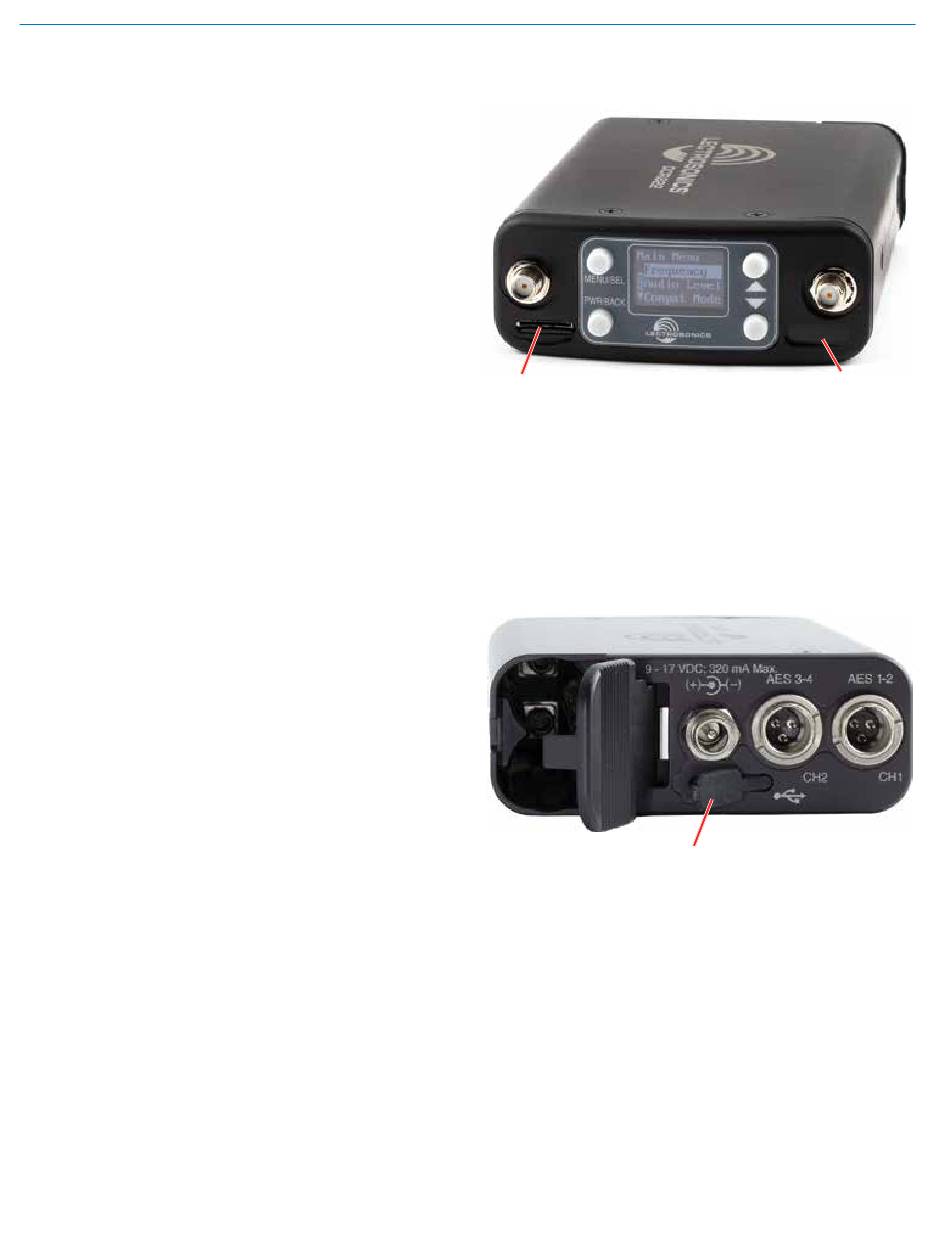

microSDHC memory
card port
IR (infrared) port
USB Port
