Cylinder AX Modularity
EN
ü
Extractor for releasing the clamp
Spacer for aligning the extension bolt
ü
ü
Clamp block for pressing in the clamp

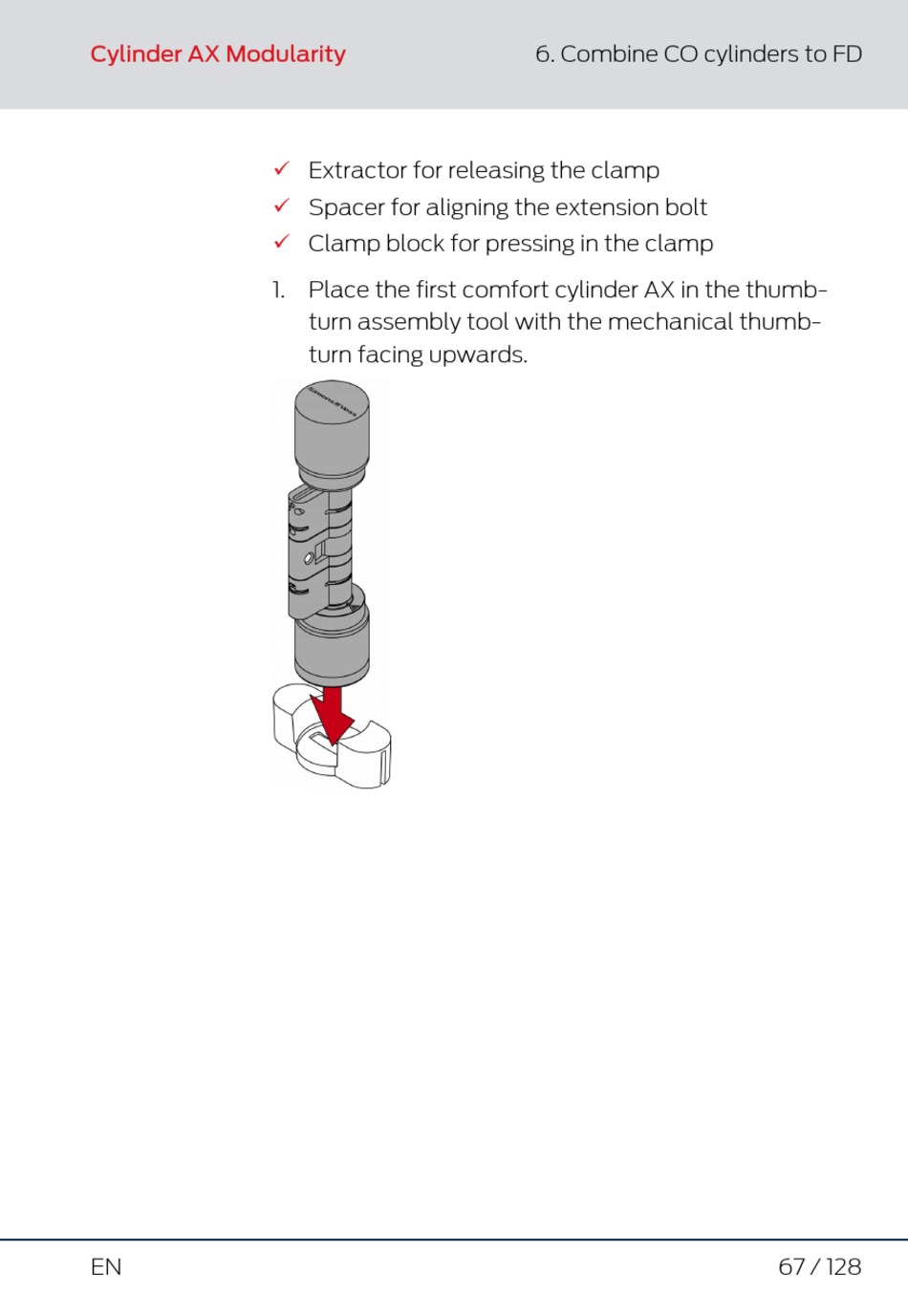

1. Place the first comfort cylinder AX in the thumb-
turn assembly tool with the mechanical thumb-
turn facing upwards.
6. Combine CO cylinders to FD
67 / 128
