Cylinder AX Modularity
EN

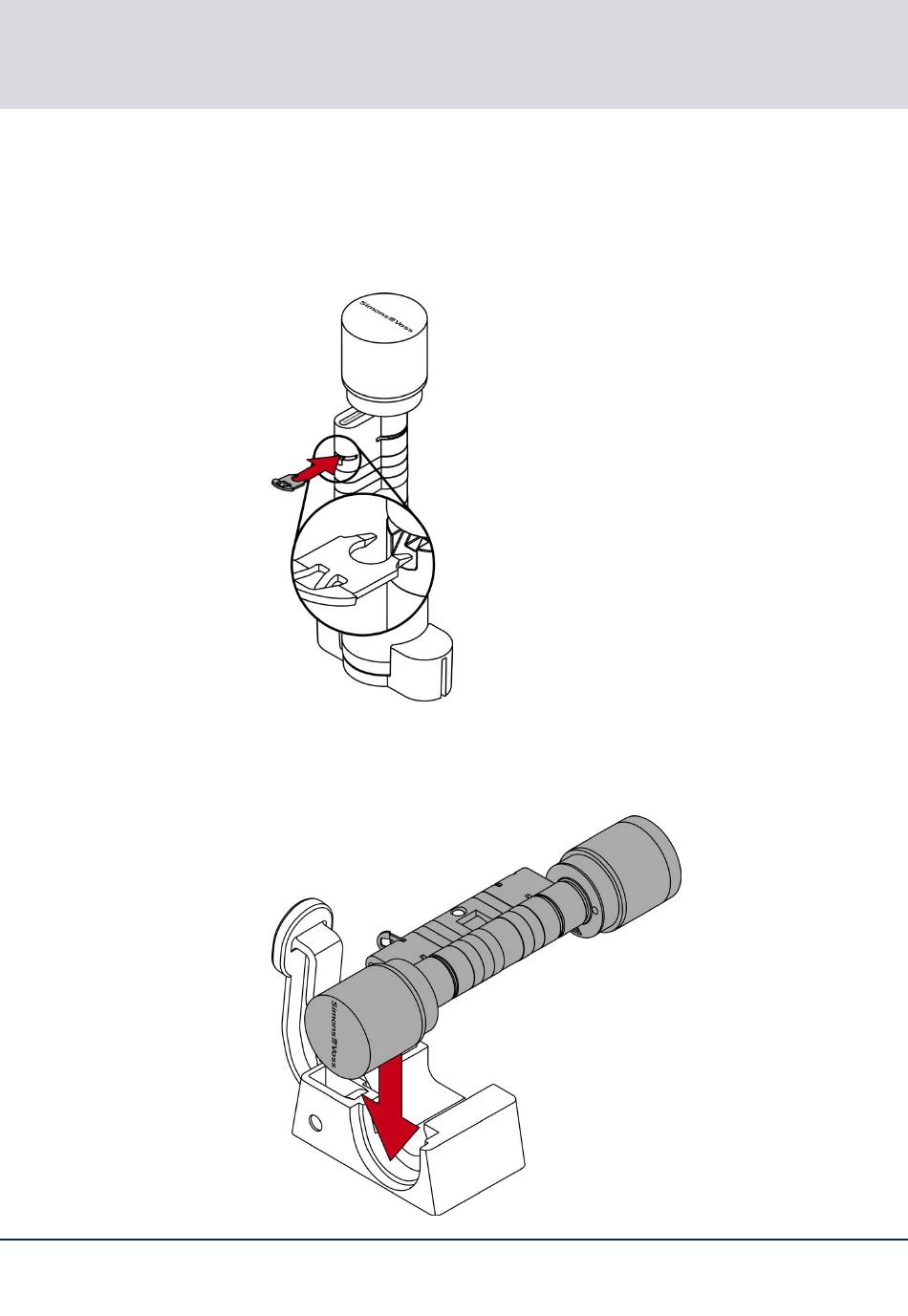

14. Place the clip back into the slot of the profile cylin-
der with its lug facing the fastening screw and press
the clamp with your thumb so that it can no longer
fall out.
15. Insert the cylinder into the clamping block so that
the profile cylinder and the thumb-turn lie flush in
the recesses.
4. Extend Cylinder AX
57 / 128
