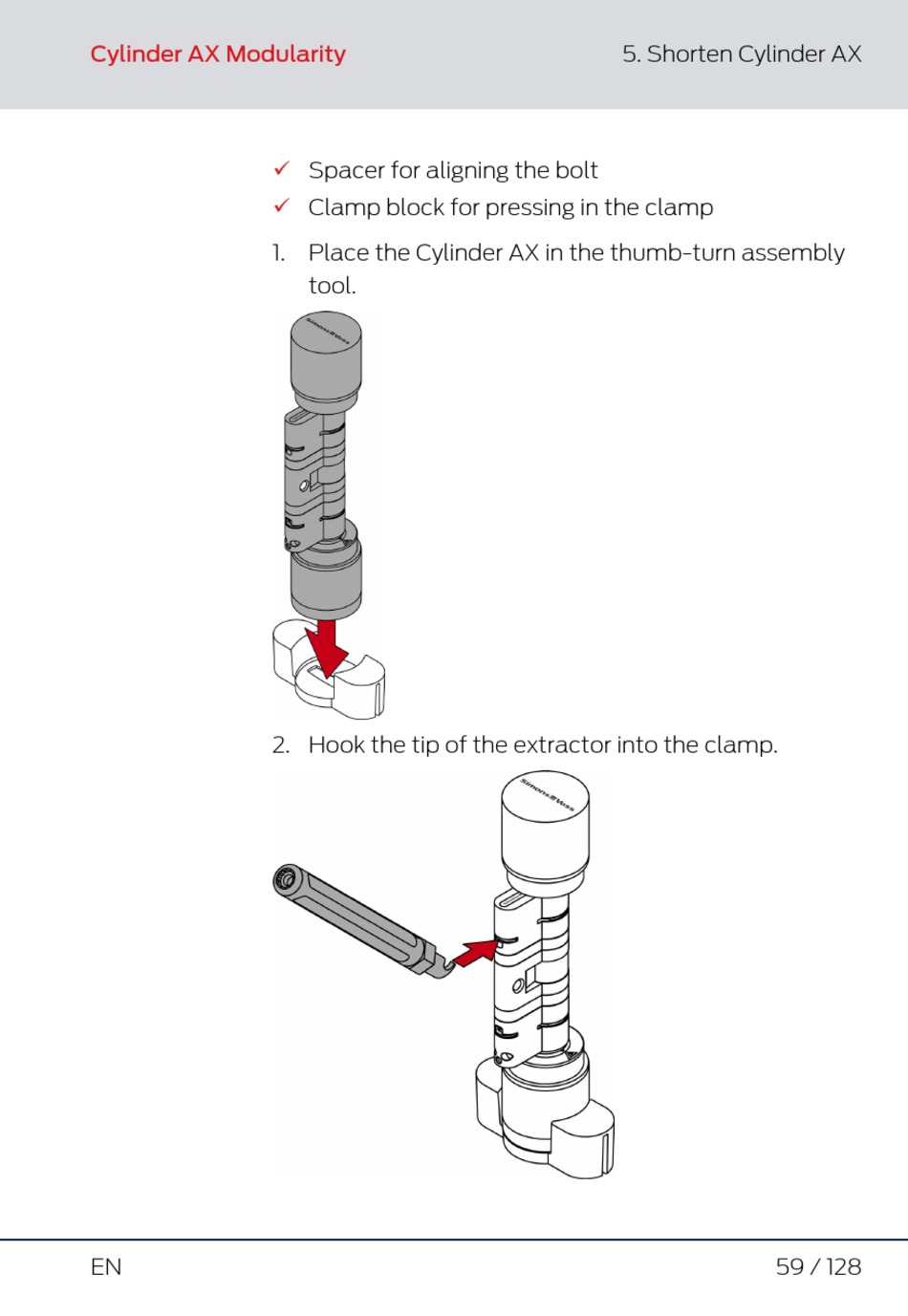

Cylinder AX Modularity
EN
ü
Spacer for aligning the bolt
Clamp block for pressing in the clamp
ü
1. Place the Cylinder AX in the thumb-turn assembly
tool.
2. Hook the tip of the extractor into the clamp.
5. Shorten Cylinder AX
59 / 128
