Cylinder AX Modularity
EN

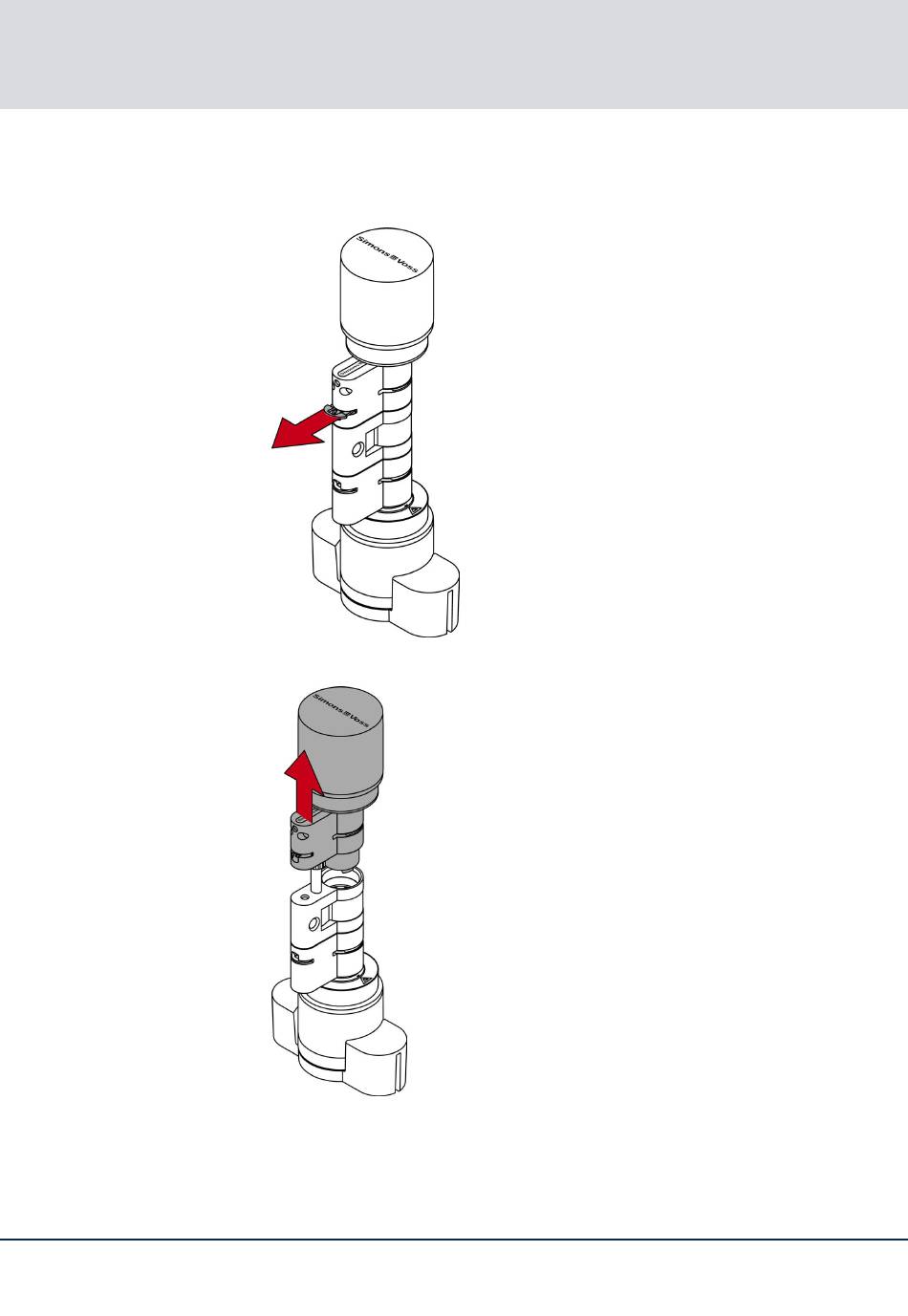

4. Pull the clamp completely out of the profile cylin-
der.
5. Disassemble the two cylinder halves.
First cylinder half prepared with centre piece
9
and tappet piece.
6. Combine CO cylinders to FD
69 / 128
