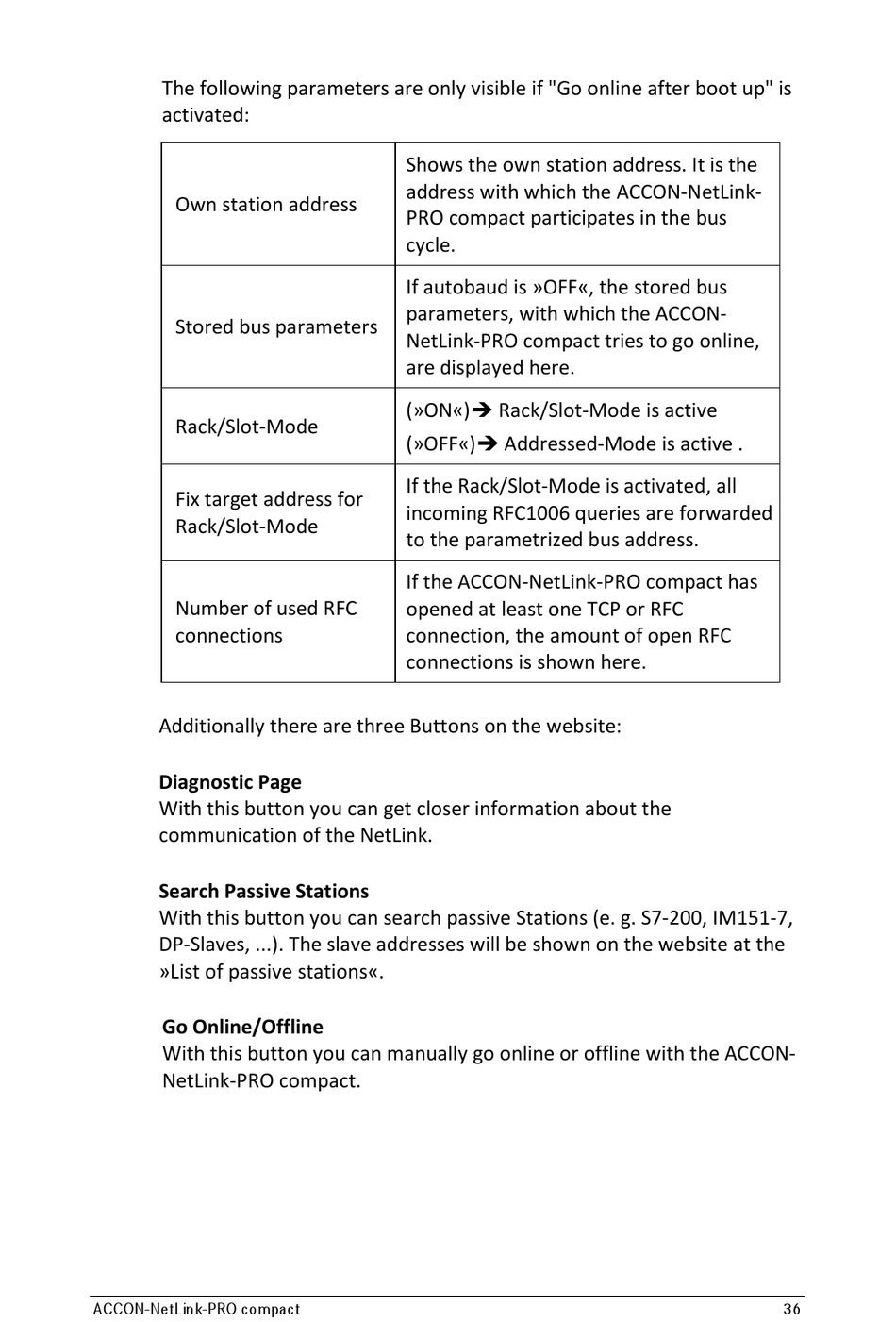

DELTA LOGIC ACCON-NetLink-PRO User Manual page 37

The following parameters are only visible if "Go online after boot up" is
activated:
Own station address
Stored bus parameters
Rack/Slot-Mode
Fix target address for
Rack/Slot-Mode
Number of used RFC
connections
Additionally there are three Buttons on the website:
Diagnostic Page
With this button you can get closer information about the
communication of the NetLink.
Search Passive Stations
With this button you can search passive Stations (e. g. S7-200, IM151-7,
DP-Slaves, ...). The slave addresses will be shown on the website at the
»List of passive stations«.
Go Online/Offline
With this button you can manually go online or offline with the ACCON-
NetLink-PRO compact.
ACCON-NetLink-PRO compact
Shows the own station address. It is the
address with which the ACCON-NetLink-
PRO compact participates in the bus
cycle.
If autobaud is »OFF«, the stored bus
parameters, with which the ACCON-
NetLink-PRO compact tries to go online,
are displayed here.
(»ON«) Rack/Slot-Mode is active
(»OFF«) Addressed-Mode is active .
If the Rack/Slot-Mode is activated, all
incoming RFC1006 queries are forwarded
to the parametrized bus address.
If the ACCON-NetLink-PRO compact has
opened at least one TCP or RFC
connection, the amount of open RFC
connections is shown here.
