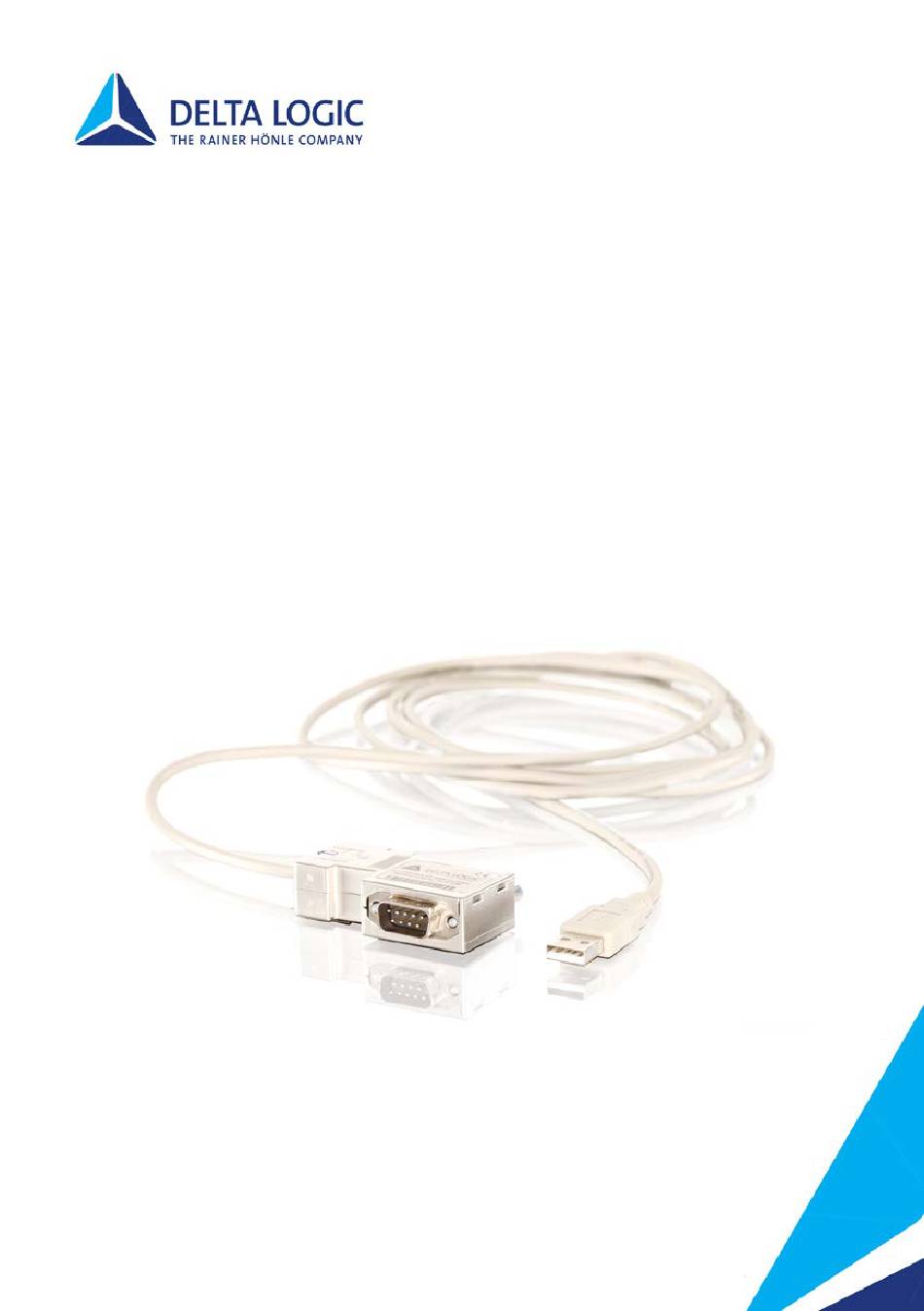

- Page 1 User Manual ACCON-NetLink-USB compact...
-
Page 2: Preface
This manual is for project developers, users and assemblers who utilize the ACCON-NetLink-USB compact. It shows the user the handling of the ACCON-NetLink-USB compact and explains signaling functions. All necessary data for assembling should be provided to the assembler. © 2015 - 2016... -
Page 3: Table Of Contents
TECHNICAL DESCRIPTION ........3 SCOPE OF DELIVERY ..........4 DEVICE DESCRIPTION ........... 5 REQUIREMENTS FOR OPERATING ......7 COMMISSIONING ..........8 BUS SETTINGS ............. 10 TROUBLE SHOOTING ........... 19 FREQUENTLY ASKED QUESTIONS ...... 20 10 TECHNICAL DATA ..........22 ACCON-NetLink-USB compact... -
Page 4: Technical Description
ACCON-NetLink-USB compact is the compact communication and programming adaptor between PC and S7 controllers. The electronics of the ACCON-NetLink-USB compact is placed in the box of a PROFIBUS connector what makes the adaptor very small and handy. As all-rounder, the ACCON-NetLink-USB compact can be connected to the PLC via MPI, PROFIBUS and PPI. -
Page 5: Scope Of Delivery
SCOPE OF DELIVERY • ACCON-NetLink-USB compact • DELTA LOGIC Automatisierungstechnik-DVD including ACCON-S7- NET driver ACCON-NetLink-USB compact... -
Page 6: Device Description
DEVICE DESCRIPTION Figure 1: ACCON-NetLink-USB compact USB plug type A to connect the device to usual PCs or USB hubs. Status LEDs Bus plug with PG socket, switchable terminator and a 1.2 m connection cable. ACCON-NetLink-USB compact... - Page 7 Starting the ACCON-NetLink-USB compact During the first seconds after starting the Power LED is blue. After 25 seconds the boot procedure is already finished and the Device is ready. LED display ACTIVE STATUS LED POWER LED BUS LED Ready to operate...
-
Page 8: Requirements For Operating
Assembly Installation and assembly have to be carried out according to VDE 0100 / IEC 364. As the ACCON-NetLink-USB compact is an IP30 module it has to be built into a switchboard. For secure operating please keep the maximum environmental temperature of 60 °C in mind. -
Page 9: Commissioning
Connect the 9-pin SUB-D plug to the MPI or PROFIBUS interface of your S7 controller. Installation of the USB driver When connecting an ACCON-NetLink-USB compact to the PC for the first time, the operating system tries to install a suitable device driver. This could take a while and continues as follows:... - Page 10 Latest driver and firmware versions can be found on our web site at www.deltalogic.de in the section »Downloads«. Installation Software The driver ACCON-S7-NET can be installed by executing the file »SetupAcconS7Net.exe« from the DELTA LOGIC Automatisierungstechnik-DVD (<DVD-drive>\S7-Adapter). Set PG/PC Interface 1. Open the SIMATIC PG/PC Interface.
-
Page 11: Bus Settings
BUS SETTINGS The ACCON-NetLink-USB compact can be used with three different bus systems: PPI, MPI and PROFIBUS. Configuration example: MPI The MPI configuration contains station-related settings and net-related settings. The most important setting of the bus configuration is the station address. - Page 12 - using S7-200 - older Siemens S7 CPUs - if the ACCON-NetLink-USB compact is the only master at the bus When using the autobaud function the initialization lasts a bit longer because the online parameters have to be determined. It is possible that the autobaud function does not work correctly at slower transmission rates (e.
- Page 13 Unlike to MPI the bus parameters under PROFIBUS are not constant and change in relation to the number and type of the used PROFIBUS stations. You should always use the PROFIBUS parameters which are set in the actual automation system (look for the STEP7 project). ACCON-NetLink-USB compact...
- Page 14 »Automatic reconnaissance of the net-related parameters« under PROFIBUS. To get the » Automatic reconnaissance of the net-related parameters« to work, you have to activate the »Cyclic distribution of the bus parameters« in the hardware parametrization of the interface. ACCON-NetLink-USB compact...
- Page 15 The following screenshot shows the switch for the »Cyclic distribution of the bus parameters«. It is located in the hardware configuration of any PROFIBUS interface: Figure 6: Cyclic distribution of the bus parameters ACCON-NetLink-USB compact...
- Page 16 For more information of the use of Advanced PPI look for the help of the S7-200 programming software. To communicate with a EM 277 you have to activate Advanced PPI Latest driver and firmware versions can be found on our web site in the »Download« section. ACCON-NetLink-USB compact...
- Page 17 The names and versions of all drivers are indicated here. If problems occur you can quickly check if the correct versions are installed by indicating the driver data. You will find the latest drivers and firmware versions on our web site at www.deltalogic.de in the »Download« section. ACCON-NetLink-USB compact...
- Page 18 The following values can be determined: List of all reachable stations at the bus. Bus parameters which the ACCON-NetLink-USB compact uses on the bus. Figure 9: Diagnostics function Click on the button »Read« to determine the values.
- Page 19 If there is no automatic reconnaissance of the net-related parameters, the manually set bus parameters of the ACCON-NetLink-USB compact are shown. ACCON-NetLink-USB compact...
-
Page 20: Trouble Shooting
-The used MPI - Apply 24 VDC socket has not the externally necessary 24 VDC Configuration of the ACCON-NetLink-USB compact via ACCON-S7- The message ACCON-NetLink-USB ACCON-NetLink-USB »ACCON-NetLink-USB compact is active on compact has to be compact cannot be... -
Page 21: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Q: When I would like to use another ACCON-NetLink-USB compact or a different USB port of my PC I have to install an USB driver again although I already used an ACCON-NetLink-USB compact on this PC before. - Page 22 »TRT« (Target Rotation Time) parameter in the ACCON-NetLink-USB compact as well as on the PLC. Q: If I set the ACCON-NetLink-USB compact to autobaud in the PG/PC interface and try to go online, the active LED lights up briefly before a message appears telling me that the bus parameters cannot be determined.
-
Page 23: Technical Data
PPI Supported transmission rate 9.6 Kbps to 12 Mbps with of the bus connection to the automatic detection Supported transmission rates 12 Mbps (USB 1.1) und 480 Mbps (USB 2.0) Max. number of connections to MPI, PROFIBUS, PPI ACCON-NetLink-USB compact... - Page 24 Supported software ACCON-S7-EasyLog, ACCON- AGLink, DELTA LOGIC S7/S5- OPC-Server. With the driver for SIMATIC ACCON-S7-NET the following software can be used; SIMATIC Manager from V5.3, WinCC, WinCC flexible, ProTool, STEP7-Micro/WIN, TIA Portal Table 3: Technical Data Pin assignment Assignment of the MPI/PROFIBUS interface...
- Page 25 Data+ Ground Table 5: Pin assignment USB The ACCON-NetLink-USB compact is supplied with a shielded 3 m USB 2.0 cable. The cable has an USB plug type A. The length of a connection between PC and ACCON-NetLink-USB compact must not exceed 3 m or the voltage drop in the cable gets too high.
