DELTA LOGIC ACCON-NetLink-S7 Getting Started Manual

Getting started guide

ACCON-NetLink-S7

Order number: 16700430S

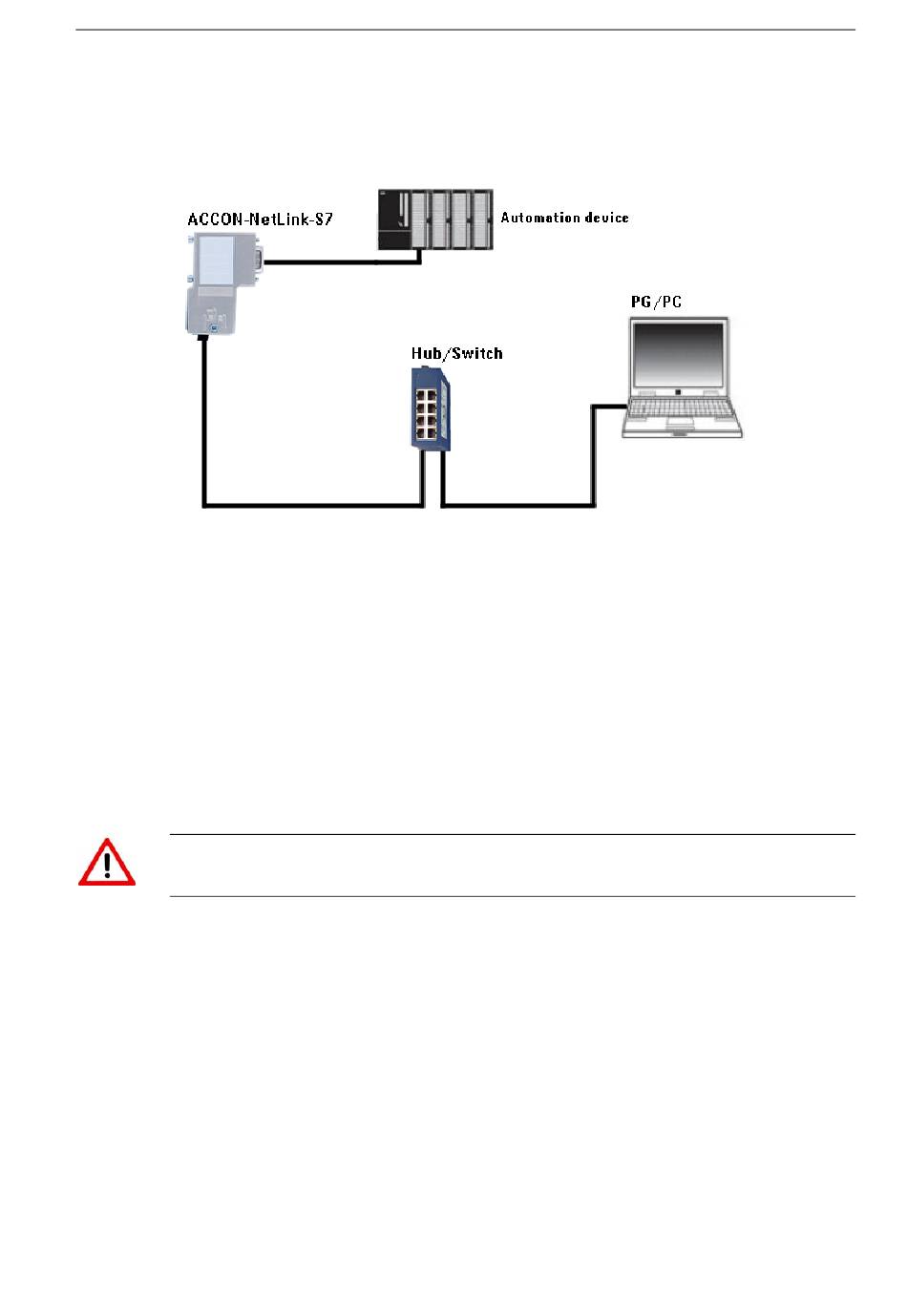

Connection to the PC

The ACCON-NetLink-S7 will be connected to a PC via a hub/switch. A direct connection to a

company network is also possible.

Connect the 9-pin Sub-D plug to the MPI interface of your S7 controller.

After inserting the DELTALOGIC Automatisierungstechnik-CD please start the setup

»SetupAcconS7Net.exe« for the ACCON-S7-NET driver. Located in the following directory

»CD-Drive:\S7Adapter\ACCON-NetLink\S7-Treiber«.

For an installation using Windows 2000 or Windows XP you have to log on as administrator. As

the setup makes entries into the windows registry.

1. Open the SIMATIC PG/PC Interface.

The following points have to be in the dialog »PG/PC Interface«:

- ACCON-S7-NET NL(MPI)

- ACCON-S7-NET NL(PPI)

- ACCON-S7-NET NL(PROFIBUS)

If not,

- Click on the button »Select...« to call the »Install/Remove Interfaces« dialog.

- Choose ACCON-S7-NET NL and install the adapter.

www.deltalogic.de

Last update: 03.04.2008

Table of Contents

Do you have a question about the ACCON-NetLink-S7 and is the answer not in the manual?

Page 1 ACCON-NetLink-S7 Order number: 16700430S Connection to the PC The ACCON-NetLink-S7 will be connected to a PC via a hub/switch. A direct connection to a company network is also possible. Connection to the automation device Connect the 9-pin Sub-D plug to the MPI interface of your S7 controller.
Page 2 Getting started guide TCP/IP parametrization To use an ACCON-NetLink-S7 you have to assign an IP address to the device. To do this the ACCON-NetLink-S7 must be ready for use and connected within the same sub-network as your PC from which the configuration takes place.
Page 3 Getting started guide Attention! You have to choose the profile MPI. Use »Save to NetLink« to store the settings If you choose a wrong profile when using PROFIBUS, the S7 CPU could be put into stop and bus errors may occur. If the properties dialog does not appear, the ACCON-NetLink S7 must be in another sub- network e.g.
