If you want to communicate with the PLC number 2:
 Remote TSAP 0202
If you want to communicate with the PLC number 49:
 Remote TSAP 0231
There is a conversion table for the Remote TSAP values in chapter
»Appendix«
You can also use the formula »Rack * 32 + Slot = Address«.

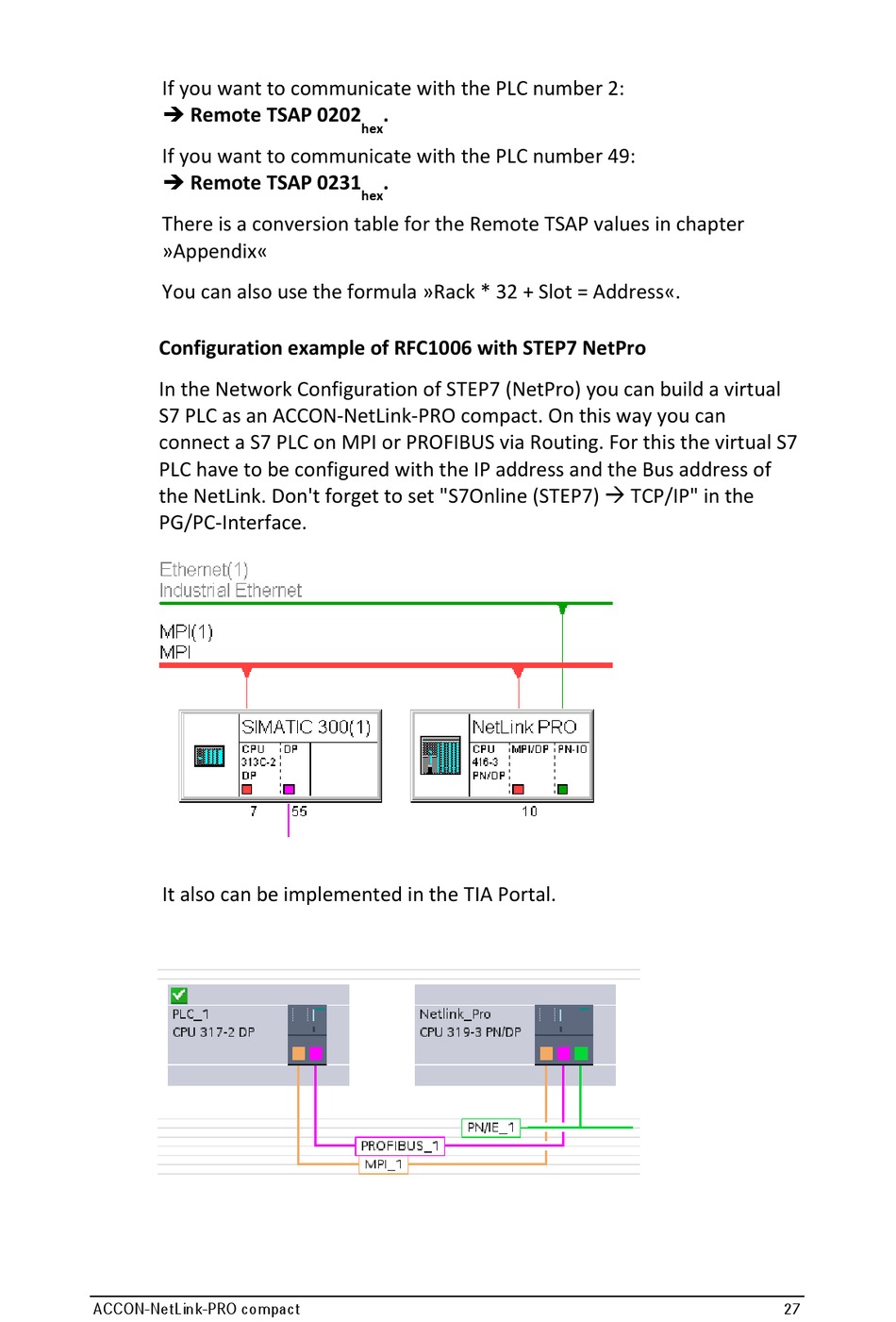

Configuration example of RFC1006 with STEP7 NetPro
In the Network Configuration of STEP7 (NetPro) you can build a virtual
S7 PLC as an ACCON-NetLink-PRO compact. On this way you can
connect a S7 PLC on MPI or PROFIBUS via Routing. For this the virtual S7
PLC have to be configured with the IP address and the Bus address of
the NetLink. Don't forget to set "S7Online (STEP7)  TCP/IP" in the
PG/PC-Interface.
It also can be implemented in the TIA Portal.
ACCON-NetLink-PRO compact
.
hex
.
hex
