ACCON-NetLink-PRO compact to access marker byte 0. Further
variables of different types can, of course, be created and used
according to the same scheme. It is also possible to create additional
TCP/IP connections in order to communicate with more CPUs.
Rack/Slot Mode

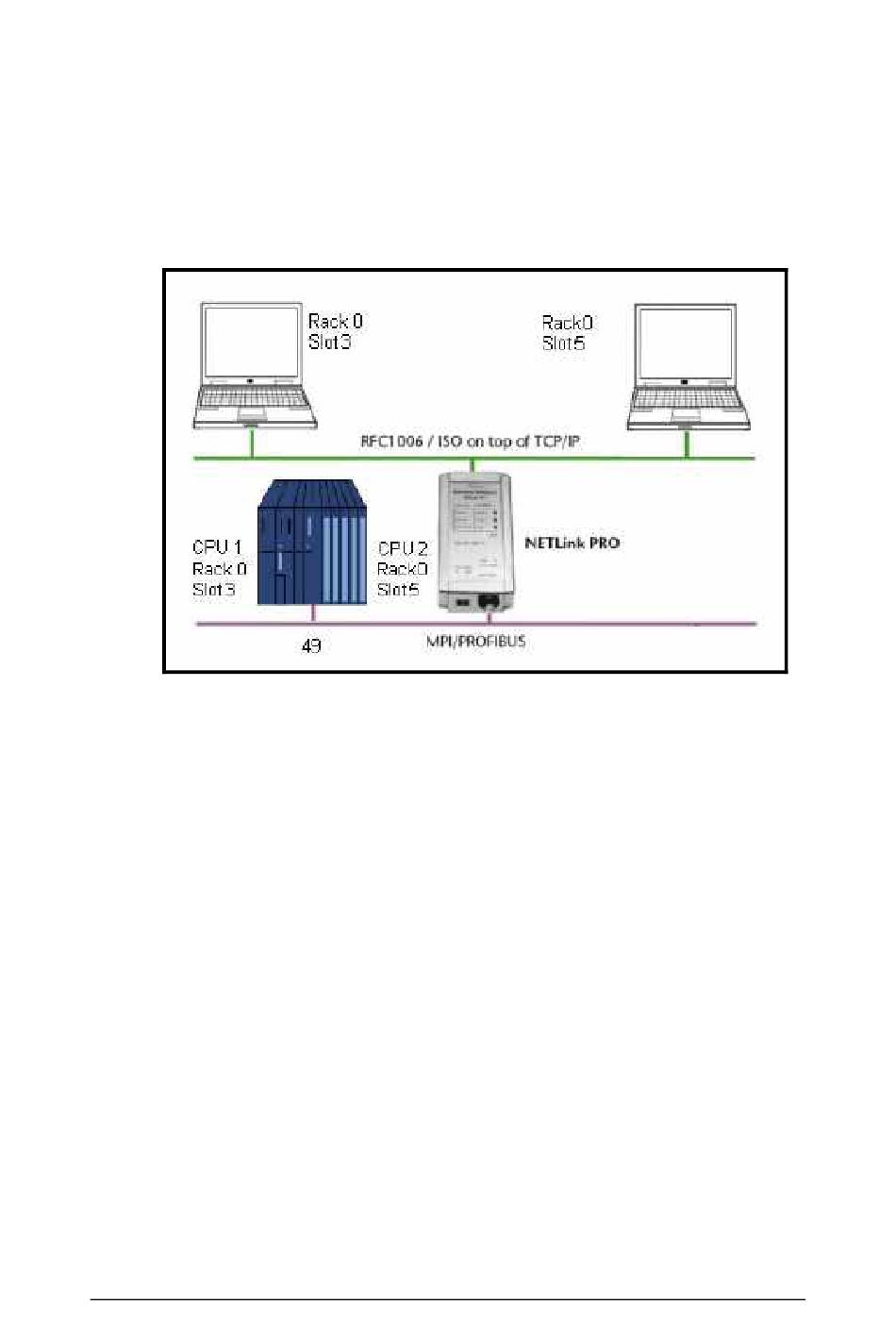

Figure 22: Rack/Slot Mode
A special feature of the RFC1006 option is the Rack/Slot mode. Using
this function it is possible to access several CPUs which are on the same
Rack (Multicomputing) via one bus address. A connection from a
PROFIBUS-CP (z. B. CP342-5) to a S7 CPU is possible, too.
Only to the set station (PLC number) will be communicated to. This
station forwards the data packages to the desired Rack/Slot.
To use this function, the following settings on the configuration page of
the web interface have to be made:
•
»Rack/Slot mode« (»ON«)
•
At »Fix destination address for R/S mode« the address (PLC
number) of the desired communication partner has to be entered.
In this example »49«.
