- Page 1 ACCON-MPI-Modem 56k User Manual from Hardware 7-3 The best solutions for PLC...
-
Page 2: Preface
PREFACE This manual is for project developers, users and assemblers who utilize the ACCON-MPI-Modem 56k. It shows the user the handling of the ACCON-MPI-Modem 56k and explains signaling functions. All necessary data for assembling should be provided to the assembler. © 1995 - 2009... -
Page 3: Table Of Contents
TABLE OF CONTENTS PREFACE..............2 TECHNICAL DESCRIPTION........4 SCOPE OF DELIVERY ..........6 DEVICE DESCRIPTION ..........7 REQUIREMENTS FOR OPERATING .......10 COMMISSIONING ..........12 PARAMETRIZATION WITH ACCONFIGURATOR ...20 TECHNICAL DATA ..........22 ACCON-MPI-Modem 56k... -
Page 4: Technical Description
ACCON-MPI-Modem 56k. To use the ACCON-MPI-Modem 56k with STEP 7 via a modem connection, you need the TeleService option package from Siemens. Figure 1: Build-up The functions »PG_DIAL« and »AS_DIAL« are not implemented. The ACCON-MPI-Modem 56k does not work with a S7-200 controller! ACCON-MPI-Modem 56k... - Page 5 FM35x modules cannot be parametrized with the ACCON-MPI-Modem 56k! Features: • Compact design • Quick commissioning • Modem and TS Adapter combined in one single device • Can be used as local programming adapter • Assembly on a top hat rail...
-
Page 6: Scope Of Delivery
SCOPE OF DELIVERY • ACCON-MPI-Modem 56k • PC connection cable • Top hat rail holder • CD with the parametrization software ACCONfigurator • Manual • TAE connection cable and Rj11 connection cable Suitable accessories can be found on www.deltalogic.de. ACCON-MPI-Modem 56k... -
Page 7: Device Description

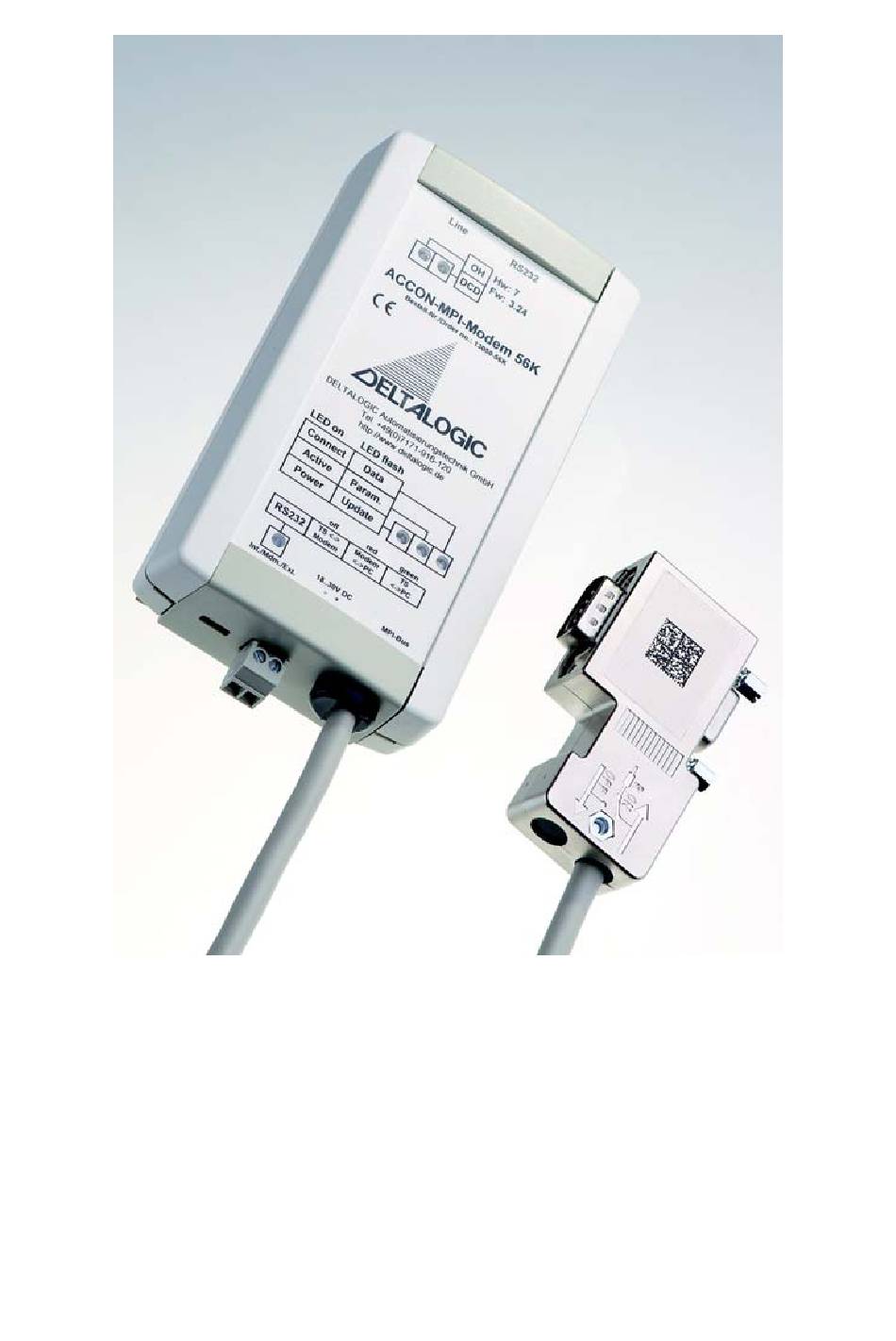

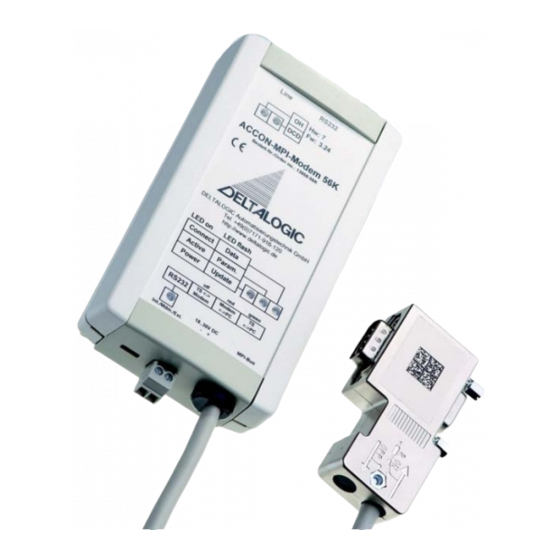

DEVICE DESCRIPTION Figure 2: ACCON-MPI-Modem 56k RS232 interface for the communication with the PC RJ11 connection to connect the device with a TAE socket Modem LEDs Status LEDs RS232 LED Switch to change between the different operating modes (microswitch) Power supply bushing for 24 VDC. Please keep the polarity in mind. - Page 8 LED display The six LEDs on the front side of the device inform about the operating state of the ACCON-MPI-Modem 56k. So sources of error can be detected very quickly. When the ACCON-MPI-Modem 56k is connected to the PLC a connection with the MPI bus will be established if the initialization of the internal modem was successful.
- Page 9 A call is being put through Connection to modem established Table 2: Modem LEDs RS-232 LED The ACCON-MPI-Modem 56K works directly with the internal modem and can be connected to a telephone connection for remote maintenance. The RS232 interface does not have any function.
-
Page 10: Requirements For Operating
REQUIREMENTS FOR OPERATING Hardware requirements If possible put the ACCON-MPI-Modem 56k directly on the MPI interface of the SIMATIC S7-300 or S7-400 controller. If not possible you have to use an external power supply for the ACCON-MPI-Modem 56k. Please keep in mind that the ACCON-MPI-Modem 56k cannot be used... - Page 11 Minimum clearance The following minimum clearance has to be kept that • you can assemble and disassemble the ACCON-MPI-Modem 56k without disassembling other parts of the facility. • there is sufficient space to connect all interfaces and connections to standard accessories.
-
Page 12: Commissioning
If the Power LED does not light, either the modem did not answer to the initialization with »OK« or the ACCON-MPI-Modem 56k was not able to log in on the MPI bus (perhaps wrong MPI address). At this time remote maintenance is not possible. - Page 13 Alternatively, you can use one of the standard drivers supplied with Windows (e.g. Standard 28800 bps Modem). You can choose the installed Modem in the parametrization of the programming software. You choose the installed modem in the programming software during connection establishment. ACCON-MPI-Modem 56k...
- Page 14 Power and RS232 LED should light green. If the RS232 LED is of or lights red then change the microswitch to »Ext.«. Connect the ACCON-MPI-Modem 56k to the RS232 interface of your PC or PG via the supplied null modem cable.
- Page 15 Parametrization with TeleService The settings of the ACCON-MPI-Modem 56k are defined by the software with which the communication to the automation device is done. In addition to the programming software STEP 7 you need TeleService from Siemens (from version 3.0) to administrate the connections.
- Page 16 Transmission rate from internal adapter to the modem: Figure 6: Serial parameters Modem settings / initialization string If the ACCON-MPI-Modem 56k is used outside of Europe you should use the following Init string: AT+GCI=xx;E1L1M1Q0V1&C1S0=1, »xx« stands for the region code from the table in chapter »8«.
- Page 17 Speaker ON Modem response ON Response in plain text &C1 DCD signal shows available carrier S0=1 Automatic call acceptance. The number 1 stands for rings until call acceptance e.g. S0=3 the modem accepts the call after 3 rings. ACCON-MPI-Modem 56k...
- Page 18 The other two users can only change their own password and call- back number. If a call-back number is set, the ACCON-MPI-Modem 56k always uses this number to call back if the respective user logs in.
- Page 19 The parametrization can be done locally via the TeleService software microswitch position »Ext.« ) as well as via a telephone connection microswitch position »Int.« The ACCON-MPI-Modem 56k is ready to operate when the Power LED as well as the Active LED is on. ACCON-MPI-Modem 56k...
-
Page 20: Parametrization With Acconfigurator
TeleService. The program can be found on the DELTALOGIC Automatisierungstechnik-CD and on www.deltalogic.de. Go to Adapter/Product >…select and choose ACCON-MPI-Modem 56k. Connect the ACCON-MPI-Modem 56k to your PC using any null modem cable. Figure 10: Select ACCON-MPI-Modem 56k ACCON-MPI-Modem 56k... - Page 21 Under Adapter/Product > Select com port/serial number you can set the COM-Port to which the ACCON-MPI-Modem 56k is connected to. Via Adapter/Product > Read parameter you can read out actual settings from the ACCON-MPI-Modem 56k and enter changes. To store new settings in the device click on »Save/End«.
-
Page 22: Technical Data
Grid-pound HF interferences 10V/m according to EN61000-4-3 10V according to EN61000-4-6 Climatic conditions Temperature operating 0° C to 60° C Temperature storage/transport: -20° C to 60° C Relative humidity operating: 5 % to 85 % at 30° C (no bedewing) ACCON-MPI-Modem 56k... - Page 23 Telephone connection looped 2 – middle left Telephone connection 3 – middle right LA Telephone connection 4 – right Telephone connection looped Table 3: Pin assignment Connection cable PC to ACCON-MPI-Modem, during direct operating at the PC (supplied) ACCON-MPI-Modem 56k...
- Page 24 Switzerland, Liechtenstein, Norway and Iceland. Only when using old telephone systems it is necessary to set the country code. The following country codes are only valid from hardware version 7-3! The hardware version can be found on the front side of the ACCON-MPI-Modem 56k. Country Country code...
- Page 25 Singapore Indonesia Slovakia Ireland* Slovenia Iceland* Spain* Israel Sri Lanka Italy* South Africa ITU/Taiwan Taiwan Japan Thailand Yemen Czech Republic Jordan Tunisia Cambodia Turkey Canada Ukraine Columbia Hungary Korea (Republic) Uruguay Croatia Kuwait Venezuela United Arab Laos Emirates ACCON-MPI-Modem 56k...
- Page 26 Belarus Cyprus Table 4: Country codes for internal modem * The standard setting TBR21 (FD) is valid for all public telephone networks of these countries. Only when using old telephone systems you have to adjust the country code. ACCON-MPI-Modem 56k...
