11-6. Blanking Plate Assembly Replacement

Work
Applicable
model
category
AW20
Disassembly
AW30
AW40
AW60
Assembly
Note) Applicable to the product with square embedded type pressure gauge (E) or digital pressure switch (E1 to E4). Not
applicable to the product with backflow function.
(14) Blanking plate assembly
Procedure

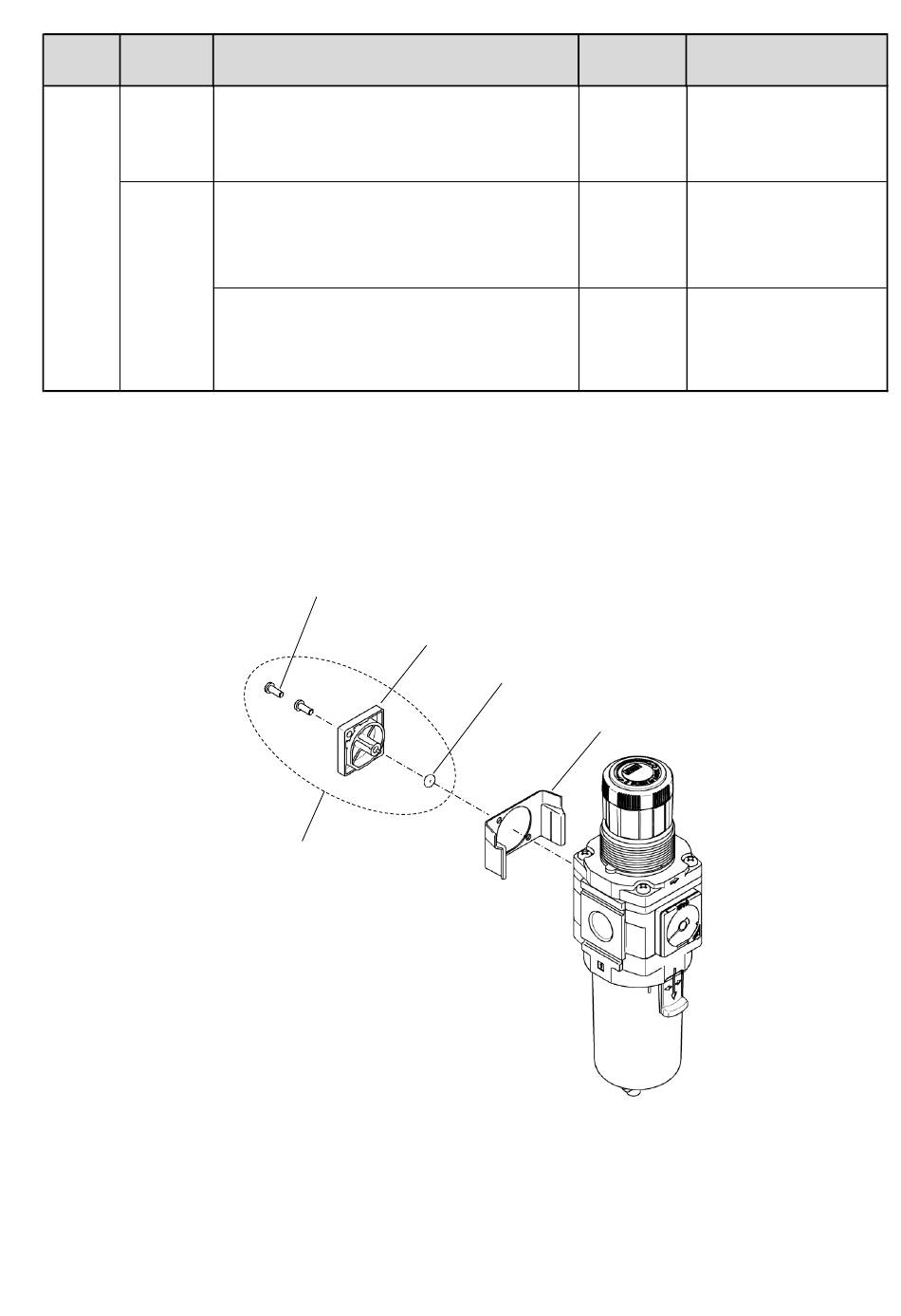

1)
Remove the blanking plate.
Remove the 2 mounting screws and remove the
blanking plate. The body cover (AW30-D,
AW40-D) comes out together. Please take care
not missing it.
2)
Confirm that the O-ring is mounted onto the
blanking plate.
When the O-ring comes out or is left on the filter
regulator, mount the O-ring to the blanking plate
correctly.
3)
Assemble the blanking plate.
Mount the blanking plate to the product, over
the body cover, with the mounting screws and
tighten them referring to the tightening torque
specified in the right column.
Mounting screws
(2 pcs.)
Blanking plate
Tool
Phillips
screwdriver
Phillips
screwdriver
O-ring
Body cover
(AW30-D, AW40-D)
Product
-37-
Criteria
-
Presence of the O-ring
Tightening torque:
0.6+/- 0.05 N m
