SMC MAX 700 Front Differential gear box and gear motor maintenance note:

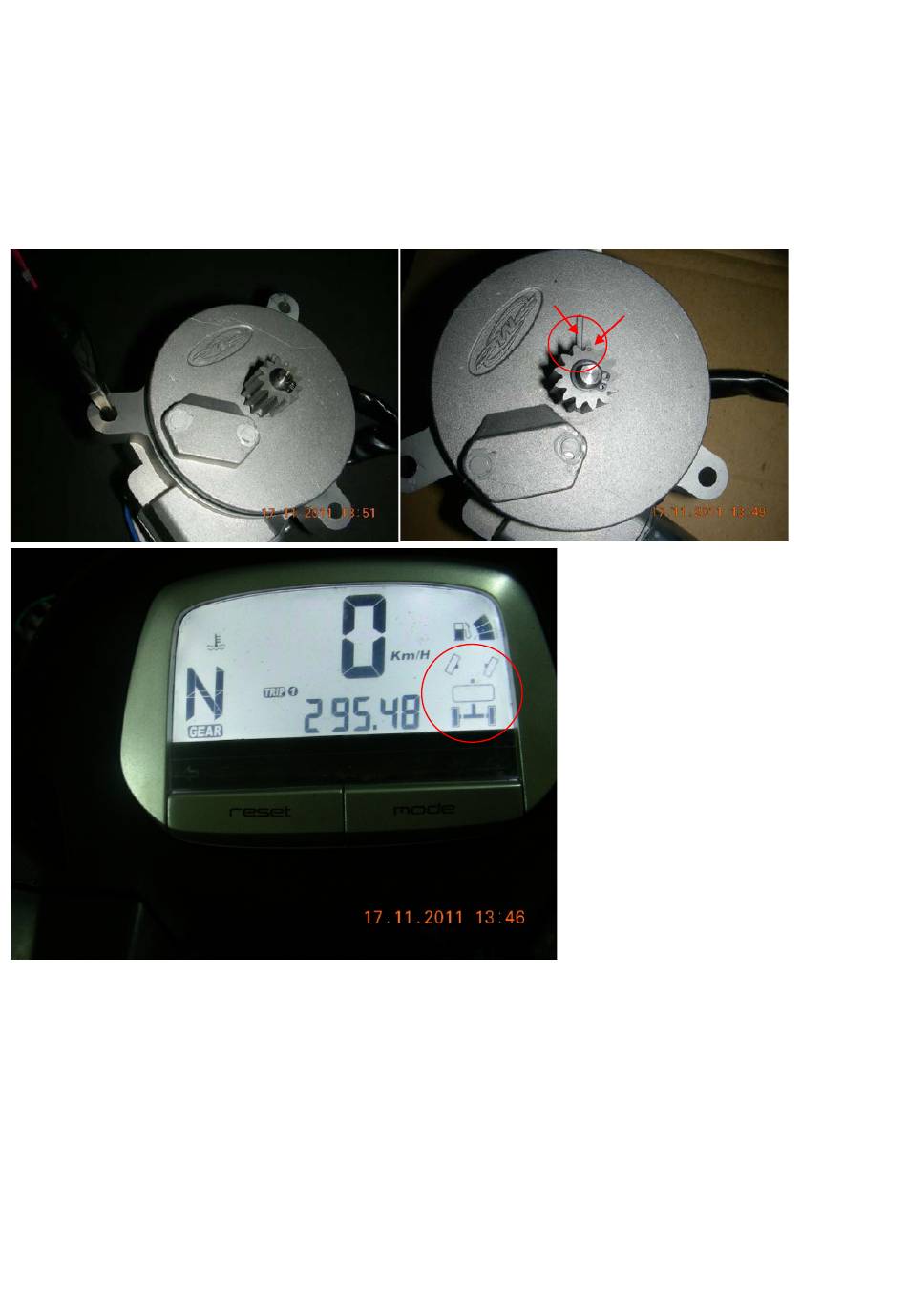

1. Diff. Gear Motor check & Gear tooth align check at 2WD mode.
a. Motor negative pole must be connect to earth.
b. Please check the function of the diff. gear motor (26650-MAX-00) if works nor Check the 2WD gear
align position if correct for the dot with line by following
While motor rotate test, must connect
earth in advance.
1. Check display on the meter and motor by switching RH. Handle switch by
2WD-4WD-Diff. Lock if show correctly and motor rotate function.
2. Then switch back to 2WD mode. If display at speedometer still blinking,
change the motor assy. (26650-MAX-00)
Switch RH handle switch to 2WD mode. Check the
Diff. Lock motor gear tooth if align with the line
Advertisement
Table of Contents
Related Manuals for SMC Networks MAX 700
Summary of Contents for SMC Networks MAX 700
- Page 1 SMC MAX 700 Front Differential gear box and gear motor maintenance note: 1. Diff. Gear Motor check & Gear tooth align check at 2WD mode. a. Motor negative pole must be connect to earth. b. Please check the function of the diff. gear motor (26650-MAX-00) if works nor Check the 2WD gear...
- Page 2 2. Shift motor slide gear align check(inside diff. gear box): a. Shift motor slide gear align Re-assembly the motor to the diff. gear box at 2WD mode Move the shift motor slide gear to the right end side Notice while assembly: 1.
