SMC Networks AW20 Series Operational Manual page 32

Work
Applicable
model category
AW60 Disassembly
AW60K
Work
category
Assembly
Procedure

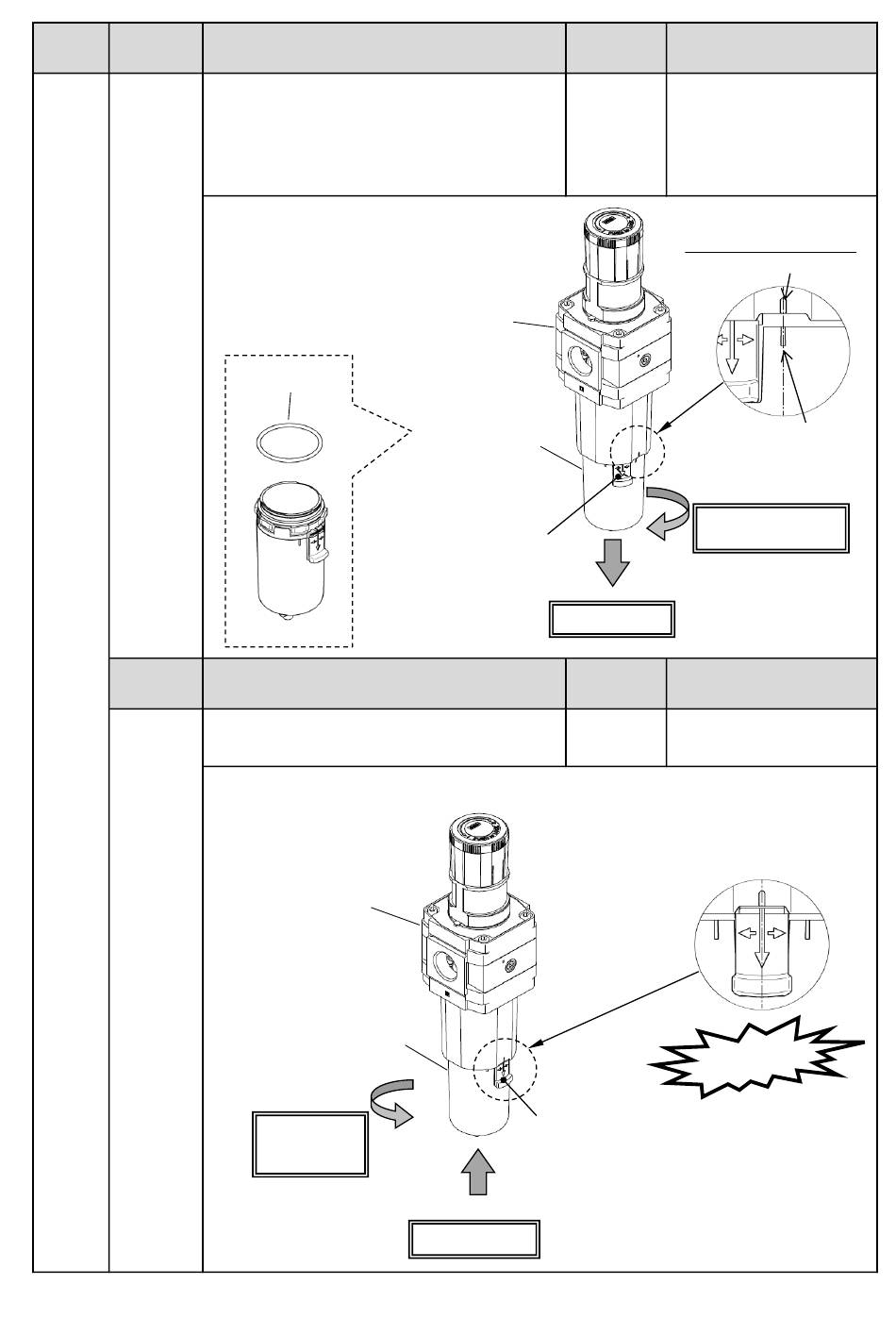

1) Remove the bowl assembly from the product.
While the lock button is held down, rotate the
bowl assembly by approx. 30 degrees so that
the mating marks of the body and bowl
assembly meet each other. Then remove the
bowl assembly by pulling it downward.
(8)
Bowl seal
Procedure
2) Mount the bowl assembly to the product and
rotate the bowl assembly until the lock button is
locked in position as shown in the figure below.
Product
(9)
Bowl assembly
【Step 2】
Rotate 30
degrees
Product
(9)
Bowl assembly
Lock button
【Step 2】
Pull downward
Lock button
【Step 1】
Insert upward
-31-
Tool Criteria
- -
Align the mating mark
Mating mark of the body
Mating mark of the
bowl assembly
【Step 1】
Rotate 30 degrees
Tool Criteria
- -
Caution
Make sure that the lock button
is locked to the flute of the
product before pressurising it.
