SMC Networks AW20 Series Operational Manual page 36

Work
Applicable
model category
AW60 Assembly
AW60K
Work
category
Assembly
Procedure

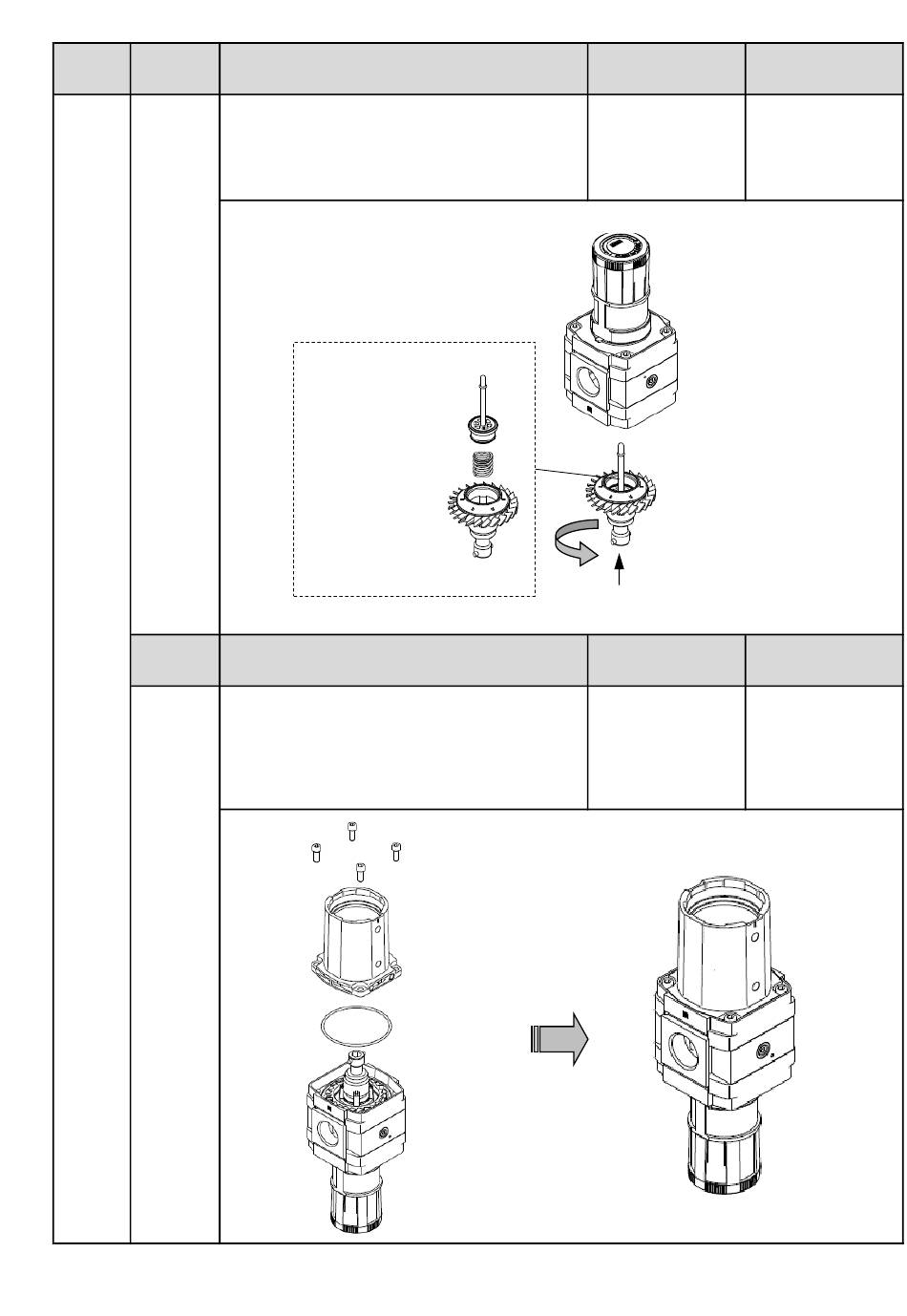

3) Mount the valve spring and valve assembly on
the valve guide as shown in the drawing. Rotate
the valve guide in the arrow direction to mount
the valve guide to the product.
(10)
Valve assembly
Vave spring
Valve guide
Procedure
4) Mount the O-ring and housing to the body.
Assemble them with 4 screws. Then, assemble
the element and the bowl assembly referring to
section [11-3. Element Assembly Replacement]
（P.32） and [11-2. Bowl Assembly
Replacement] (P.31).
Product
Hexagon wrench
(Nominal size: 10)
Screws (4 pcs.)
Hexagon wrench
(Nominal size: 5)
Housing
O-ring
-35-
Tool
Hexagon wrench Tightening torque:
Nominal size: 10 6.5+/- 0.3 N m
Tool
Hexagon wrench Tightening torque:
Nominal size: 5 3.5+/- 0.3 N m
Criteria
Criteria
