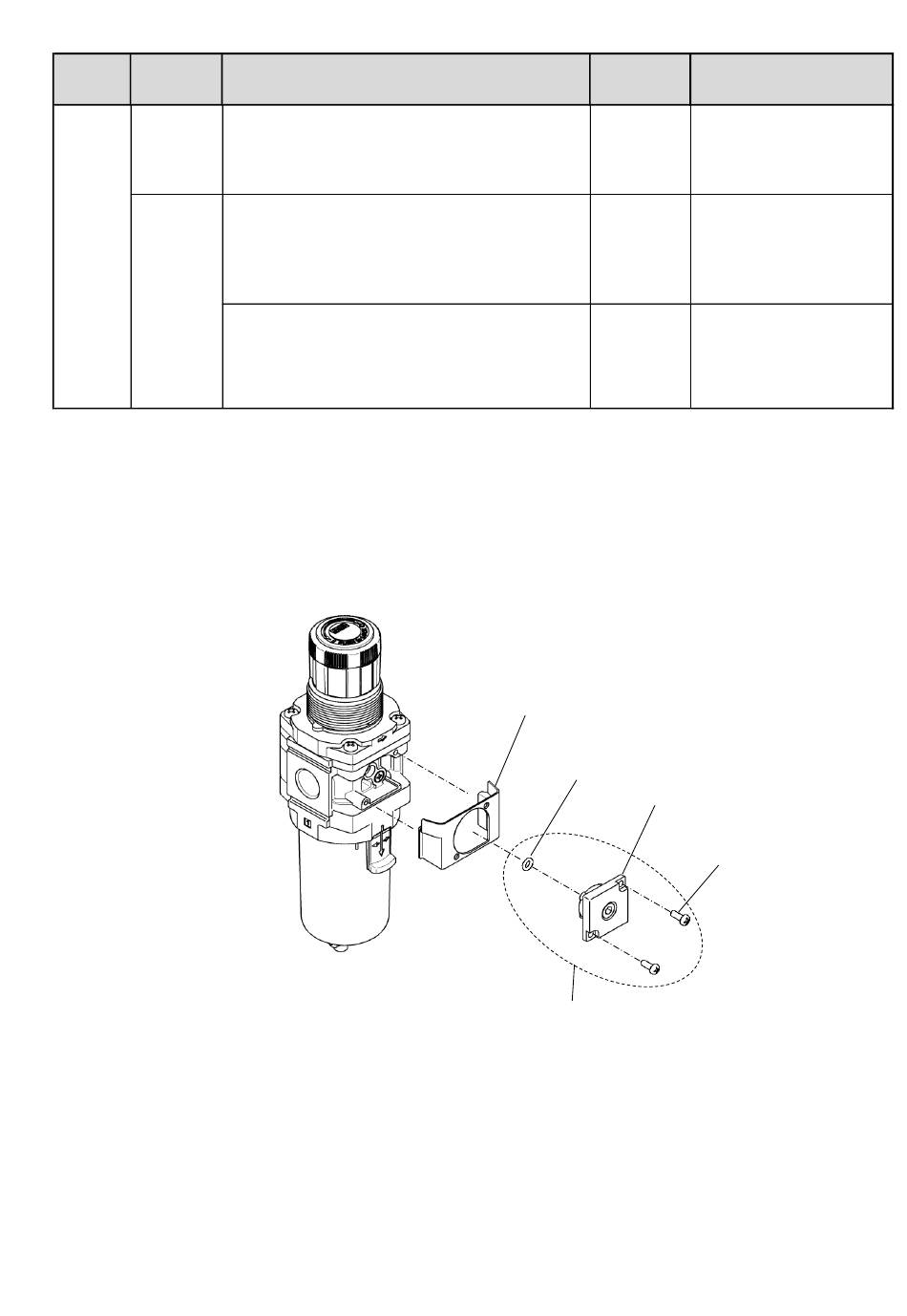

11-9. Plug Assembly Replacement

Work
Applicable
model category
AW20K Disassembly
AW30K
AW40K
AW60K
Assembly
Procedure
1) Remove the plug assembly.
Remove the 2 mounting screws and remove the
plug assembly. The body cover comes out
together. Please take care not missing it.
2) Confirm that the O-ring is mounted onto the plug
assembly.
When the O-ring comes out or is left on the filter
regulator, mount the O-ring to the plug assembly
correctly.
3) Assemble the plug assembly.
Assemble the plug assembly to the product with
the mounting screws and tighten the screws
referring to the tightening torque specified in the
right column.
Product
Tool
Phillips
screwdriver
Phillips
screwdriver
Body cover
O-ring
Plug assembly
(15) Plug assembly
-40-
Criteria
－
-
Presence of the O-ring
Tightening torque:
0.6+/- 0.05 N m
Mounting screws
(2 pcs.)
