11-8. Plug Assembly Replacement

Work
Applicable
model
category
AW20
Disassembly
AW20K
AW30
AW30K
AW40
Assembly
AW40K
AW60
AW60K
Note) Applicable to the product without pressure gauge.
(AW20-D / AW30-D / AW40-D/ AW60-D)
Procedure
1)
Remove the plug assembly.
2)
Mount the plug assembly.

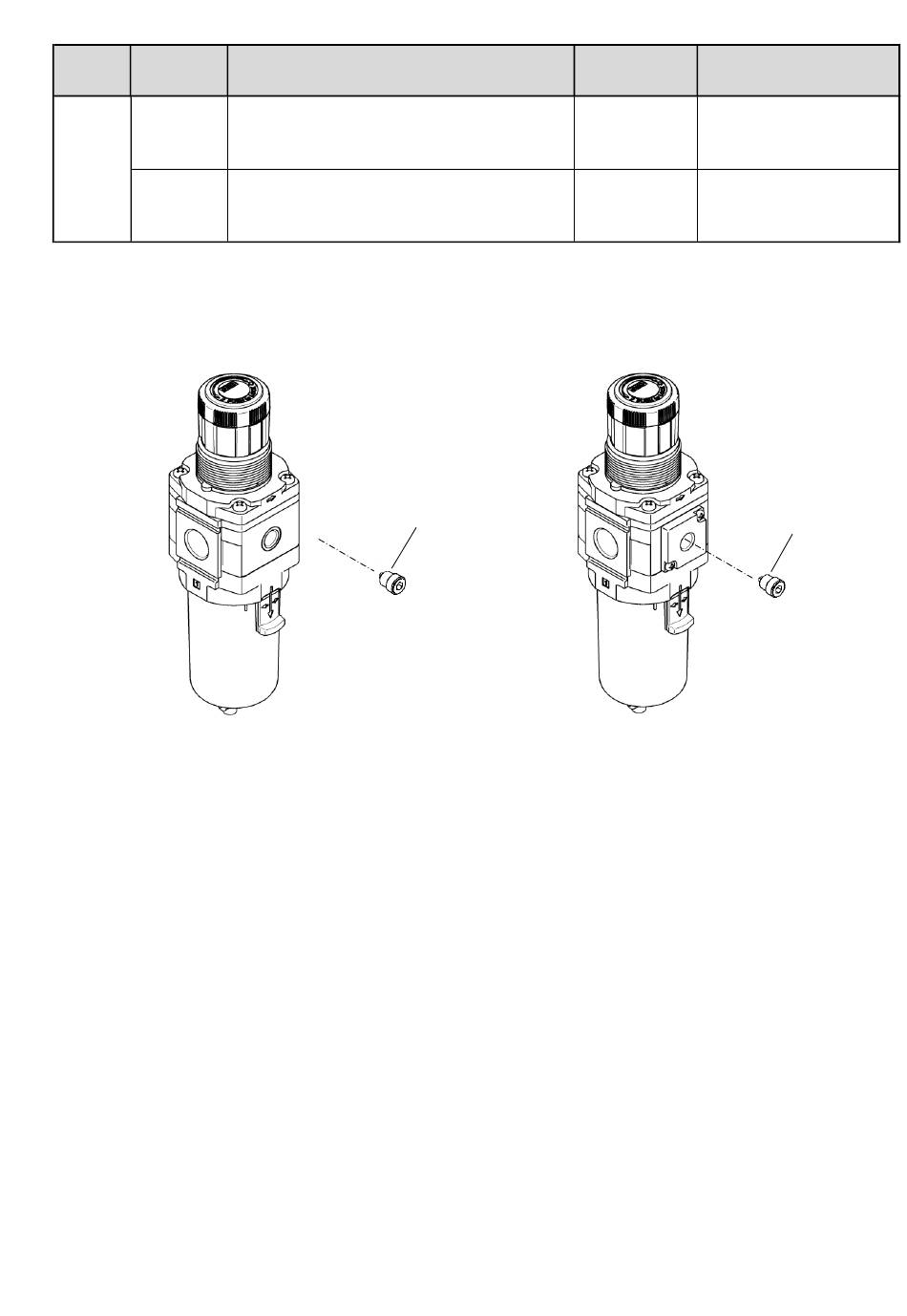

(13) Plug assembly
Filter regulator
Tool
Hexagon wrench
(Nominal size: 4)
Hexagon wrench
(Nominal size: 4)
(AW20K-D / AW30K-D / AW40K-D/ AW60K-D)
-39-
Criteria
Tightening torque:
0.6+/- 0.05 N m
(13) Plug assembly
Filter regulator
