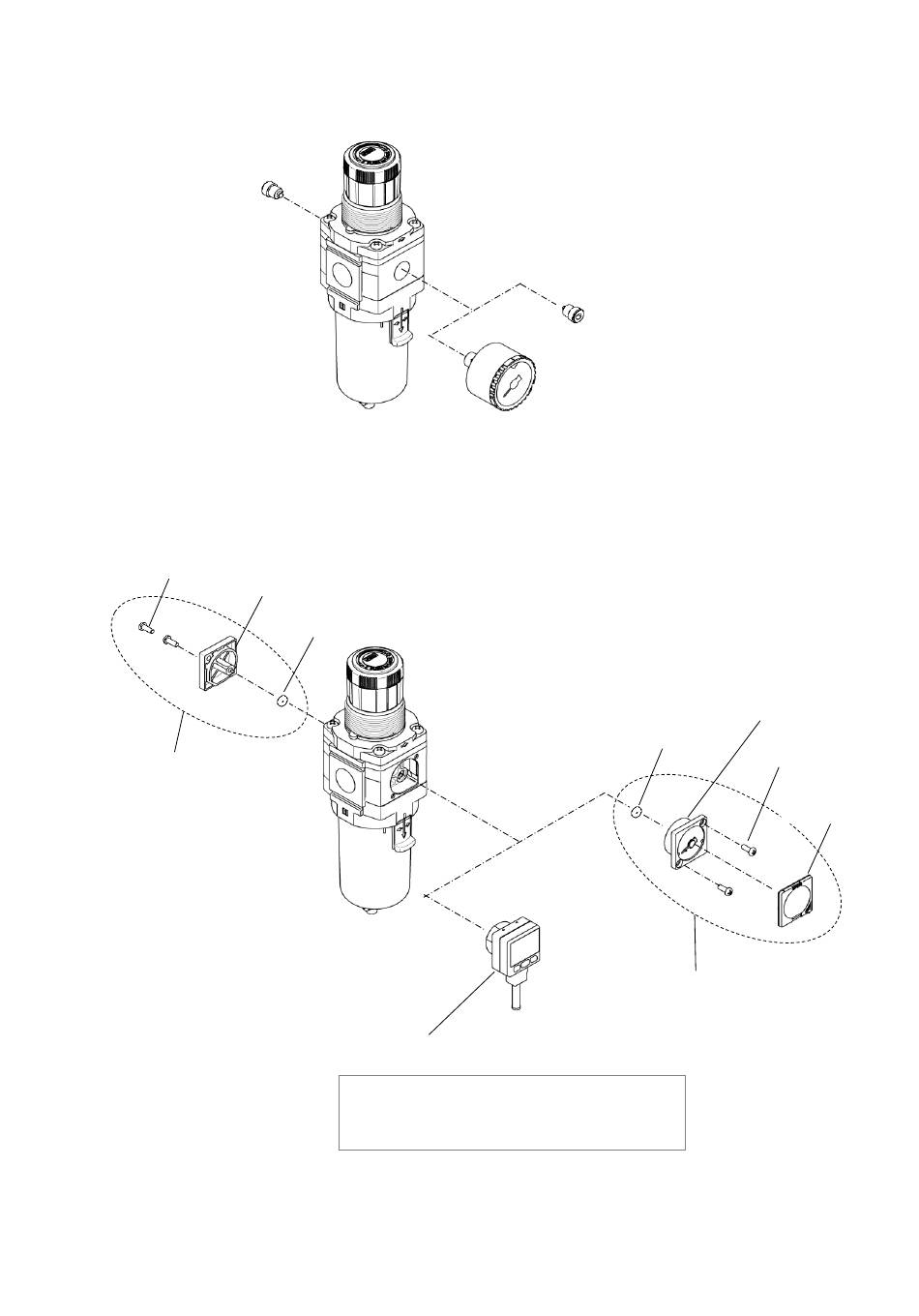

12-2. Disassembly Drawing of the Pressure Gauge Port
[Applicable model: without pressure gauge / with pressure gauge (round type)]
(13) Plug assembly
12-3. Disassembly Drawing of the Pressure Gauge Port
[Applicable model: with square embedded type pressure gauge / with digital pressure switch]
Mounting screws
(2 pcs.)
Blanking plate
(14) Blanking plate assembly
- When the pressure gauge or the digital pressure switch is mounted on the back of the product, swap all parts for the front and
back.
- When swapping (4) Square embedded type pressure gauge and (6) Digital pressure switch, tighten them with 0.85+/-0.05N・m.
Tighten others with 0.6±0.05N・m.
Filter regulator
O-ring
(6) Digital pressure switch
Note) Refer to the operation manual included in
the product with digital pressure switch.
-43-
(13) Plug assembly
(3) Pressure gauge (round type)
O-ring
(4) Square embedded type pressure gauge
Pressure gauge
Mounting screws
(2 pcs.)
(5) Pressure gauge
cover
