Installation

To install the instrument, prepare a 92mm x 45mm
panel cut-out and slide the unit inwards making sure
to place the sealing gasket between the front side panel
and the front bezel.
While holding the unit in place, put the fixing clips on both sides of the case and slide them
through the guide tracks until they reach the panel at the rear side.
Press slightly to fasten the clips to the latching slots on the case and get the unit fully assembled
and close fitted to achieve a good seal.
To remove the instrument from the panel, pull the rear fixing clips latching tabs outwards until
they are disengaged, then slide the fixing clips back over the case.

Wiring Terminals

Output relay terminals
(DPM2-E-2R-HL only)
Connector
Wire cross section
Strip length
Manufacturer
Cage clamp
connection
User Manual - DPM2-E Series Electrical Panel Meters
CN4 CN3
1
4
5 2
6 3
CN1 CN2
1 2 1 2 3 4 5 6 7
Terminals
CN1
0.08 to 2.5mm² (28 to 0.08 to 1.5mm² (28 to
12 AWG) 14 AWG)
8 to 9mm 6 to 7mm
Wago 231-202/026-000 Wago 734-107
Insertion tool or Insertion tool or
screwdriver with 0.5 screwdriver with 0.3
mm x 3.0 mm blade mm x 1.8 mm blade
DPM2-E Electrical User Manual, 1st Edition

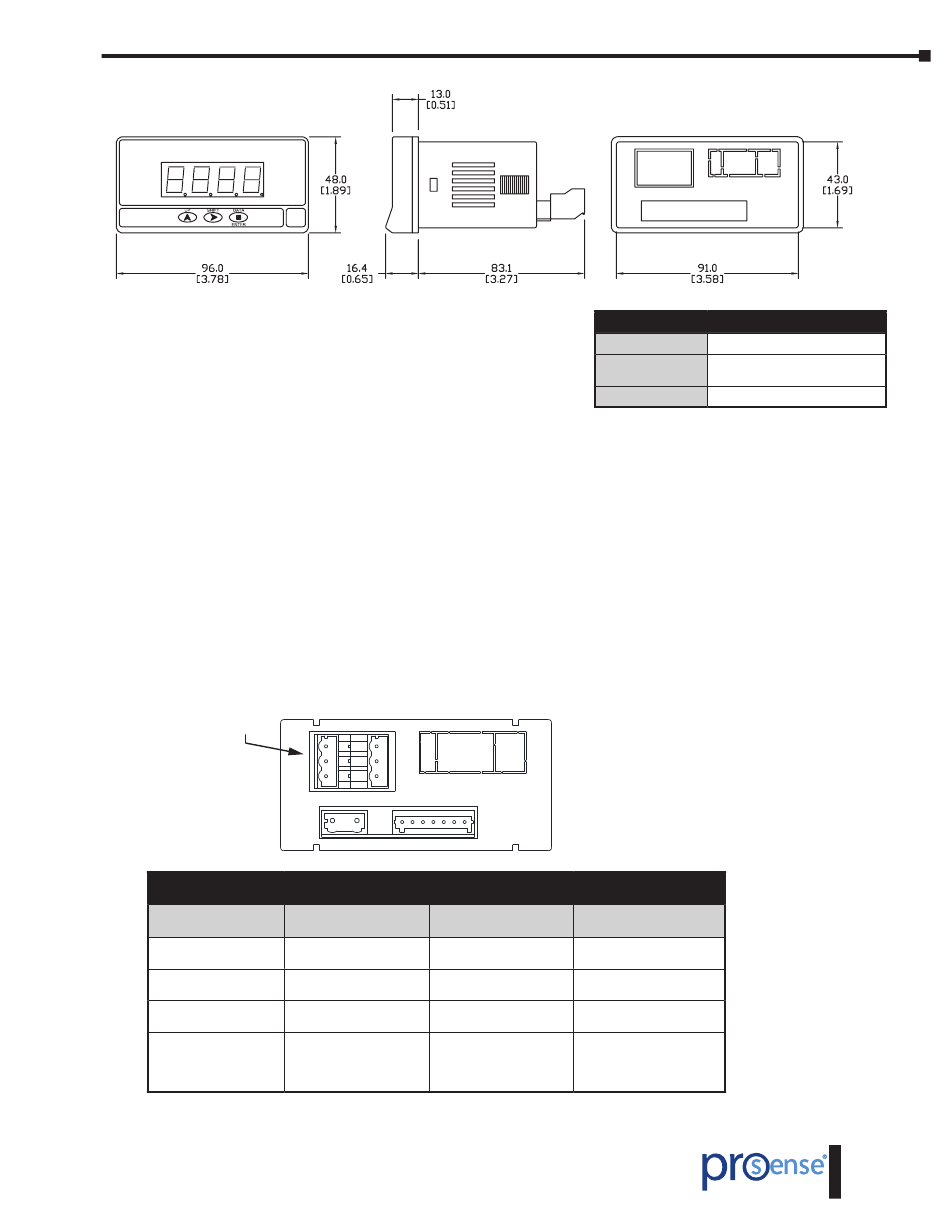

Dimensions
Panel Cutout
Case Material
CN2 CN3 & CN4
0.08 to 2.5mm² (28 to
12 AWG)
8 to 9mm
Wago 231-303/026-000
Insertion tool or
screwdriver with 0.5 mm
x 3.0 mm blade
Installation
96 x 48 x 83.1mm (1/8 DIN)
92 x 45mm
(Max. panel thickness 10mm)
Polycarbonate UL 94 V-0
