User Manual - DPM2-E Series Electrical Panel Meters

.

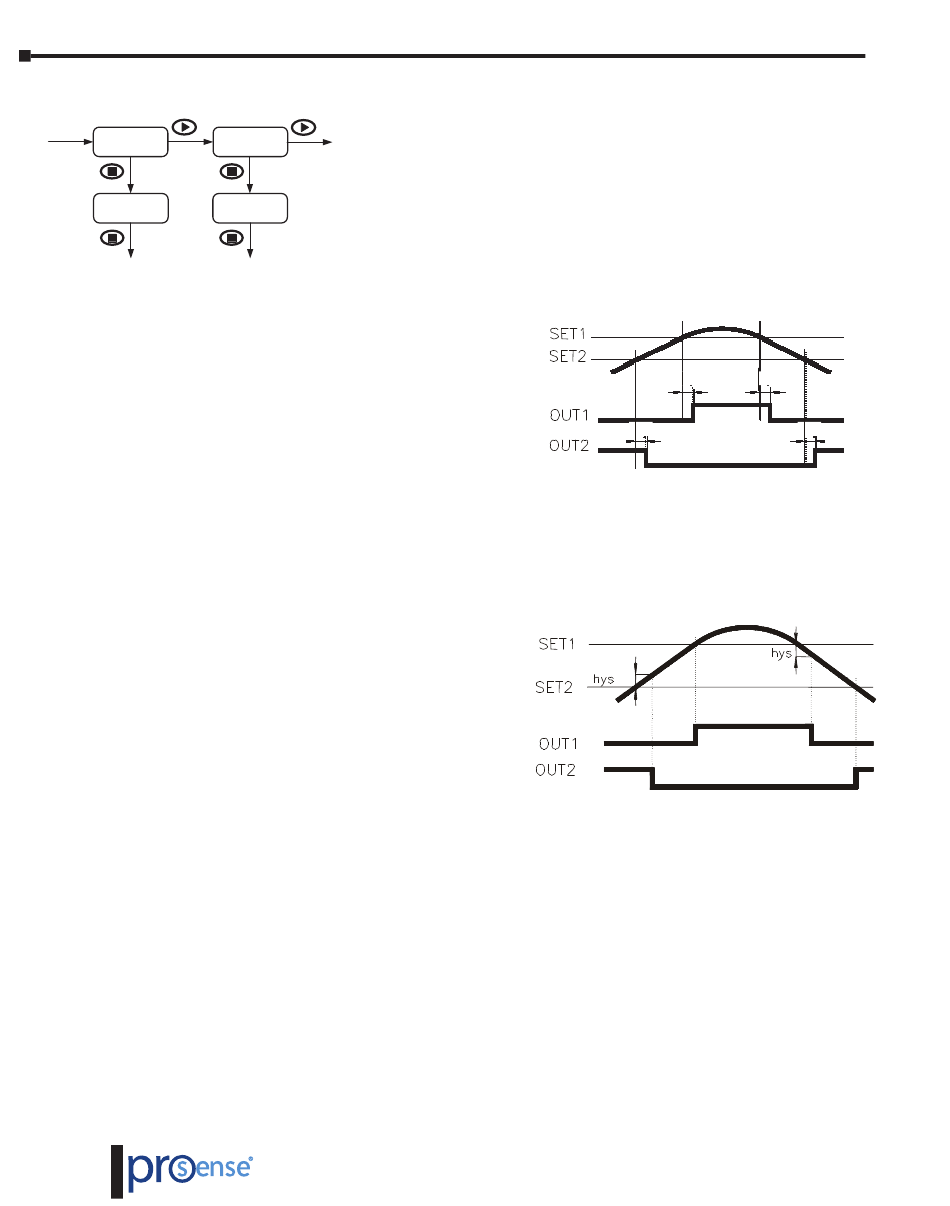

Time Delay:
Both relay output actions can be controlled by a
configurable time delay from 0 up to 99.9 seconds.
Time delay activation starts when display value
reaches each setpoint 'SET' either increasing or
decreasing.
Asymmetrical Hysteresis:
Both relay output actions can be controlled by a hysteresis level which is configurable in
counts within full available display. Decimal point position is the previously defined in display
configuration menu.
Asymmetrical hysteresis action only starts in the
output deactivation edge, the 'hys' as indicated on
the right figure.
Note that outputs activation is not affected by
hysteresis and they activate in each case just when
setpoint 'SET' is reached by display.
18
TIME DELAY OR HYSTERESIS:
dLy:
 
HyS:
.
DPM2-E Electrical User Manual, 1st Edition
Programmable delay from 0 to 99.9s.
Hysteresis in counts within display range.
Time delay for OUT1 (HI mode) and for OUT2 (LO mode)
Hysteresis delay for OUT1 (HI mode) and for OUT2 (LO mode)
dly dly
dly
dly
