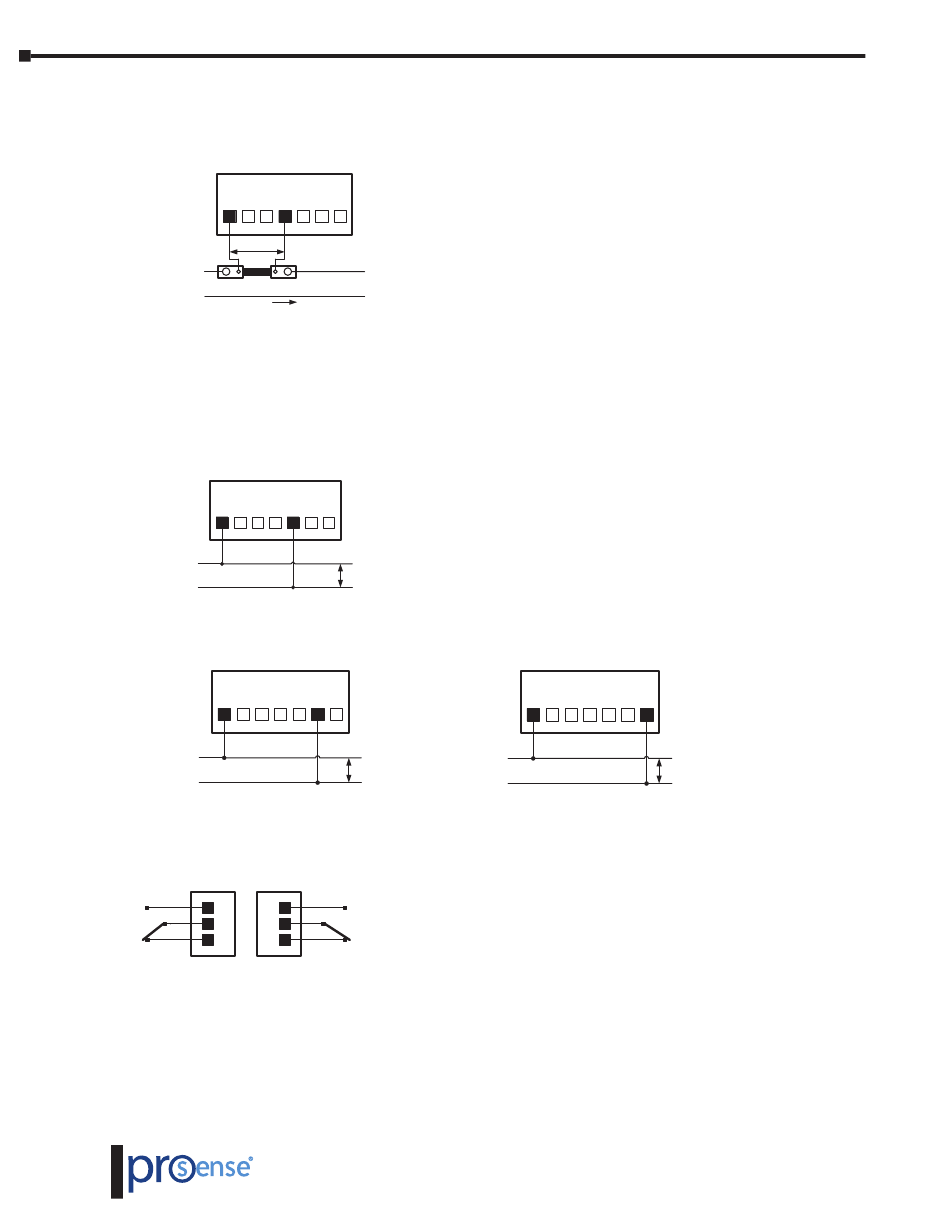

±60mV DC/±100mV DC and 0-60mV AC/0-100mV AC Shunt Input Ranges
Wiring
DC/AC SHUNT CONNECTION
- / N
+ / L
Note:
To avoid signal interference, shielded cable is recommended between the shunt and the DPM
meter.
±20V DC and 0-20V AC Input Ranges Wiring
DC/AC 20V RANGE CONNECTION
- / N
+ / L
±200V DC/±600V DC and 0-200V AC/0-600V AC Input Ranges Wiring
DC/AC 200V RANGE CONNECTION
- / N
+ / L

Relay Output Wiring

RELAY 2
NO
CM
NC
8A/250V MAX.
Important: To guarantee electrical safety according to EN 61010-1 a protective 8A/250V
external fuse must be installed.
10
DPM2-E
1 4
mV
100mV DC/AC MAX.
To Load
I
DPM2-E
1 5
20V DC/AC MAX.
V
DPM2-E
1 6
V
200V DC/AC MAX.
RELAY 1
NO
4 1
CM
5 2
6 3
NC
DPM2-E Electrical User Manual, 1st Edition
DC/AC 600V RANGE CONNECTION
DPM2-E
1 7
- / N
+ / L
600V DC/AC MAX.
V
