Indicators

Status Indicator
The Status indicator flashes during startup and remains lit when the AXIS
70U/7000 is ready for use. If the Status indicator turns off, this may indicate
an error.
Busy Indicator
The Busy indicator turns on when the AXIS 70U/7000 is allocated for use and
remains on during the scanning process.
Network Indicator
The tri-colored Network indicator displays:
Flashing Yellow
Flashing Green
Red
Power Indicator
The Power indicator is normally on when power is applied. If the indicator
remains off or flashes, this indicates a problem with the AXIS 70U/7000 or its
power supply.

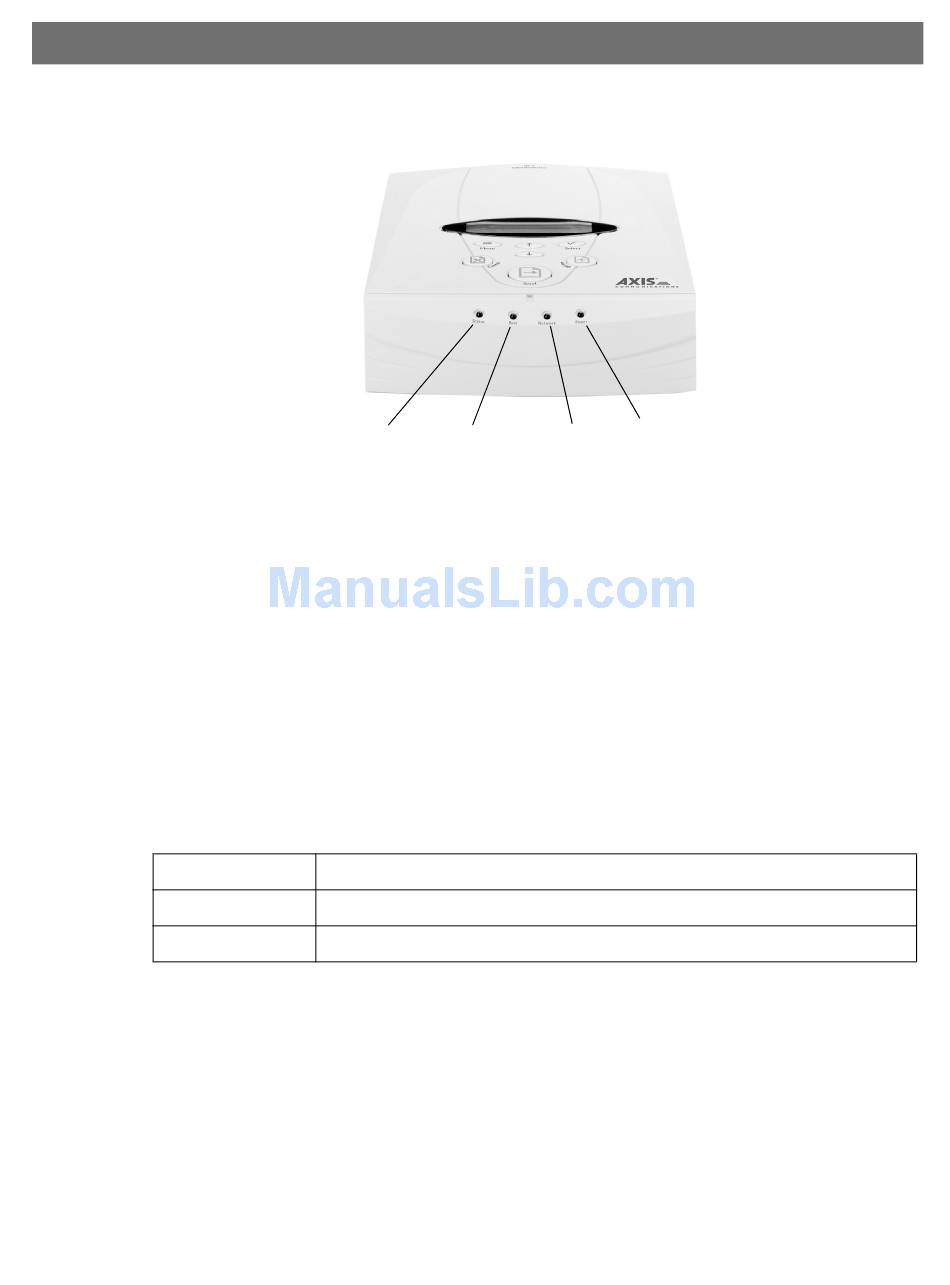

Status Busy
Indicator
Indicator
Indicating network activity on a 10MB Ethernet network.
Indicating network activity on a 100MB Ethernet network.
Indicating that the unit is not correctly connected to the network.
Physical Description
Network Power
Indicator Indicator
