8 Physical Description

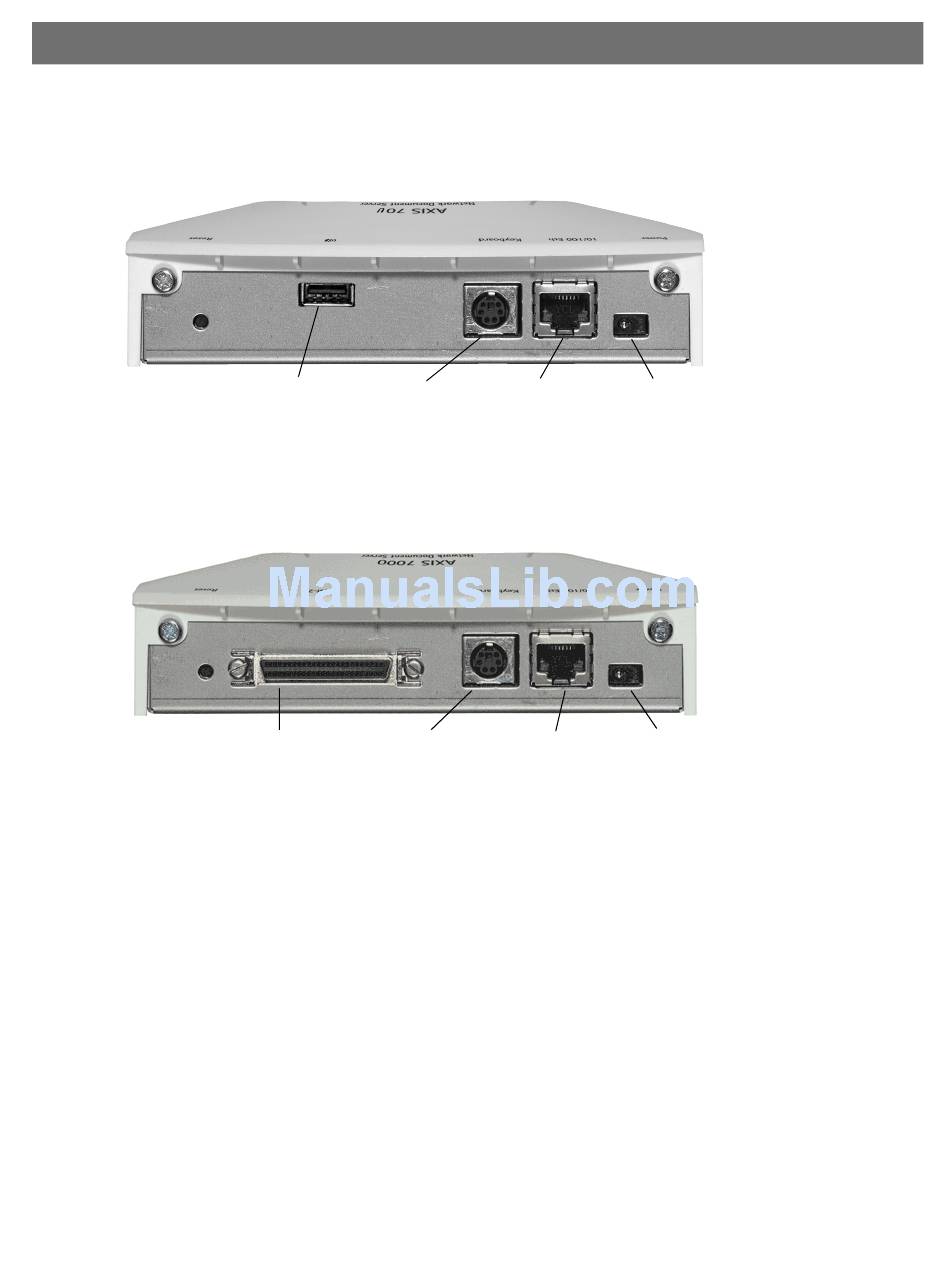

Connectors

AXIS 70U
• A USB connector for connection to the scanner.
AXIS 7000
• A SCSI-2 connector for connection to the scanner.
AXIS70U/7000
Keyboard Connector
A mini-DIN connector for connection of a standard PC-Keyboard. Refer to the
AXIS 70U/7000 User's Manual for further details.
Network Connector
The AXIS 70U/7000 is designed for 10 Mbps and 100 Mbps Ethernet networks
and connects to the network via a twisted pair category 5 cable (10baseT and
100baseTX) or better. The AXIS 70U/7000 automatically switches between 10
Mbps and 100 Mbps.
Power Supply
AXIS power supply (see Checking the Hardware Inventory on page 9).
USB
Keyboard
Connector Connector
Keyboard
SCSI
Connector Connector
AXIS 70U/7000 User's Guide
Power
Network
Supply
Connector
Power
Network
Supply
Connector
