DEFINITY Communications System
DEFINITY High Speed Link
User´s Guide

Physical Description

POWER
TEST
Front Panel LED Indicators, LCD Display and Push-Button Switches
This section describes the physical features of the HSL which
include the front panel (LED indicators, LCD display, and push-
button switches) and the rear panel connectors.
Front Panel
The HSL provides a front panel user interface which consists of
two light emitting diodes (LEDs), one red and one green; a single
line,
16-character super-twist liquid crystal display (LCD); and three

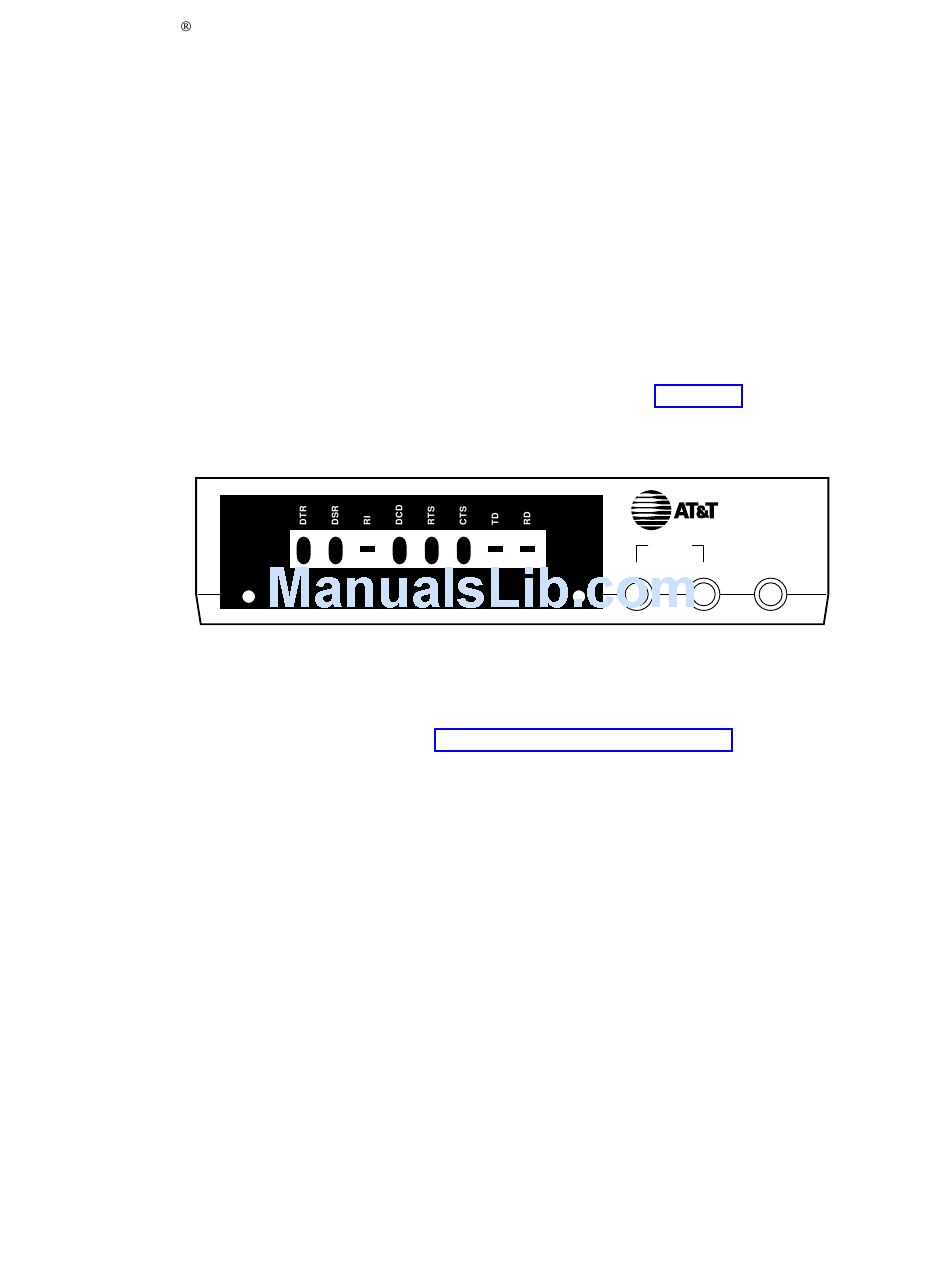

non-locking push-button switches. Figure 1-1 illustrates the front
panel.
DEFINITY High Speed Link
FIGURE 1-1
Refer to Chapter 3, ''Using the Front Panel,'' for a full description
of the HSL's front panel.
HOME
NEXT/NO BACK ENTER/YES
DATA
Chapter 1: Introduction
Page 1-3
