NOTES:

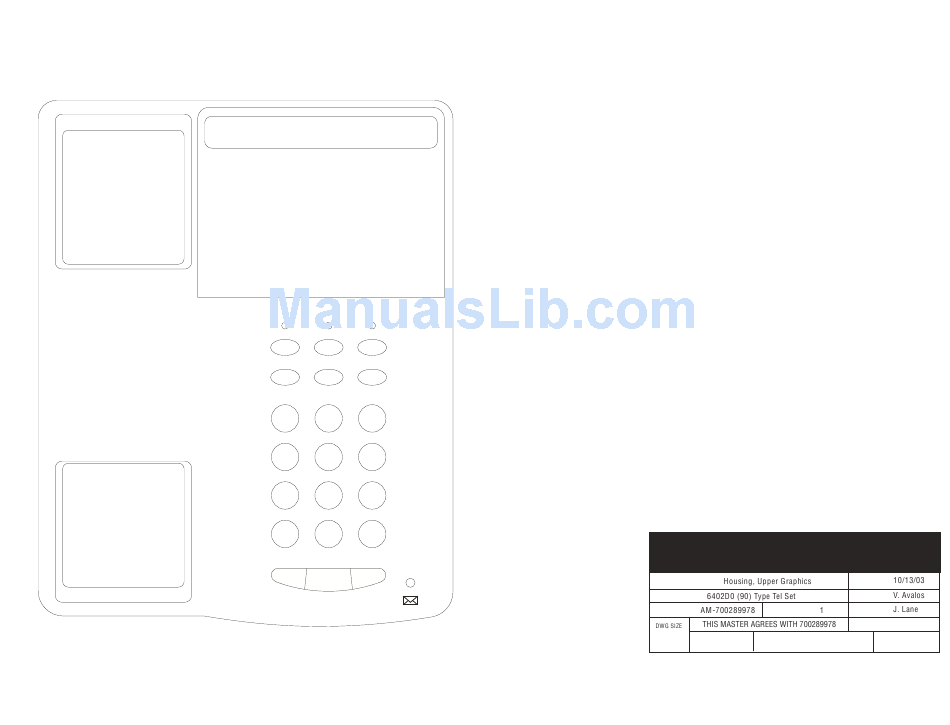

1. THIS IS AN ORTHOGRAPHIC VIEW OF A CURVED SURFACE.

2. HOLDING RULES ARE FOR REFERENCE ONLY AND DO NOT PRINT.

3. GRAPHICS ARE ALIGNED USING LED ABOVE SPEAKER BUTTON AS UPPER

LEFT BENCHMARK AND MESSAGE LED AS LOWER RIGHT BENCHMARK.

4. TEXT AND ICONS, PRINT AVAYA WHITE AV-1006 ON BLACK AND GRAY

TERMINALS.

5. TEXT AND ICONS, PRINT AVAYA DARK GRAY AV-1001 ON WHITE TERMINALS.

AVAYA PROPRIETARY - Use pursuant to Company Instructions.

THIS ARTMASTER WAS CREATED BY THE

AVAYA INC. INDUSTRIAL ART GROUP

LINCROFT NJ

DESCRIPTION

PRODUCT

FILE NO.

AM-700289978

SCALE 1:1

(732) 852-2535

DATE

ENGR

ISSUE

DRAWN

SHEET 1 OF 2

Table of Contents

Do you have a question about the Definity 6402D and is the answer not in the manual?

Page 1 3. GRAPHICS ARE ALIGNED USING LED ABOVE SPEAKER BUTTON AS UPPER LEFT BENCHMARK AND MESSAGE LED AS LOWER RIGHT BENCHMARK. 4. TEXT AND ICONS, PRINT AVAYA WHITE AV-1006 ON BLACK AND GRAY TERMINALS. 5. TEXT AND ICONS, PRINT AVAYA DARK GRAY AV-1001 ON WHITE TERMINALS.
Page 2 ABOVE SPEAKER BUTTON AS UPPER LEFT BENCHMARK AND MESSAGE LED AS LOWER RIGHT BENCHMARK. TOLERANCE LAYER AVAYA PROPRIETARY - Use pursuant to Company Instructions. AVAYA PROPRIETARY - Use pursuant to Company Instructions. THIS ARTMASTER WAS CREATED BY THE THIS ARTMASTER WAS CREATED BY THE AVAYA INC.
