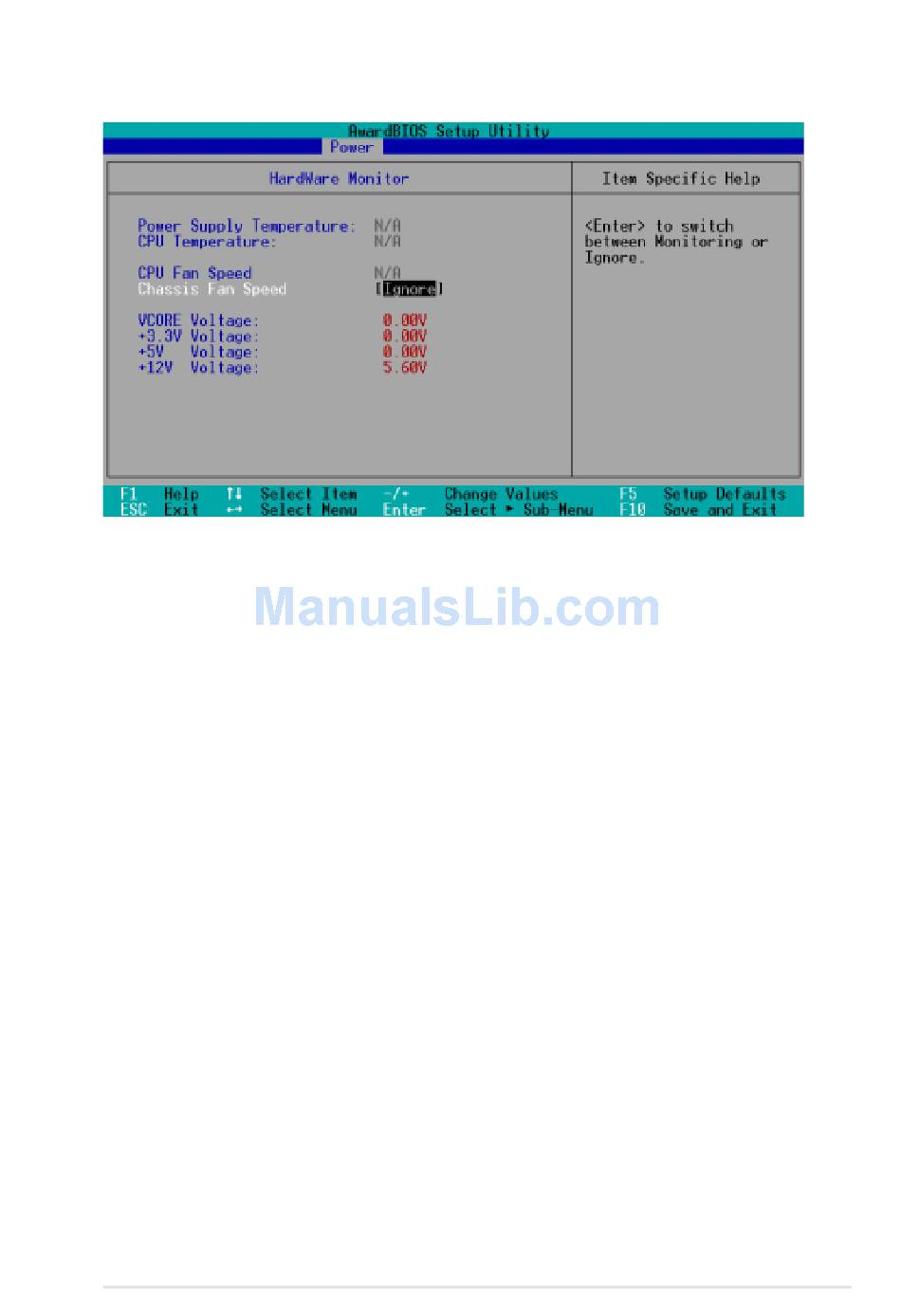

5.6.2 Hardware Monitor

Power Supply Temperature [xxxC/xxxF]
The onboard hardware monitor is able to detect the MB (motherboard)
and CPU temperatures. Set to [Ignore] only if necessary.
CPU Fan Speed [xxxxRPM] / Chassis Fan Speed [xxxxRPM]
The onboard hardware monitor is able to detect the CPU fan speed
and the chassis fan speed in rotations per minute (RPM). The
presence of the fans is automatically detected. Set to [Ignore] only if
necessary.
VCORE Voltage, +3.3V Voltage, +5V Voltage, +12V Voltage [xx.xxV]
686A Voltage
The onboard hardware monitor is able to detect the voltage output
by the onboard voltage regulators. Set to [Ignore] only if necessary.
NOTE: If any of the monitored items is out of range, an error message
will appear: "Hardware Monitor found an error. Enter Power setup
menu for details". You will then be prompted to "Press F1 to continue,
DEL to enter SETUP".
ASUS Terminator K7 Barebone System 105
