2. CPU/FSB Frequency Selection. The FS jumper is set to a
factory default [2-3] that operates with AMD 100 MHz FSB
capacity processors. If AMD 133 MHz capacity processors are
used, then reset the jumper to [1-2]. The FS jumper settings
should match the capacity of the processor. Otherwise, the
motherboard may not boot up.

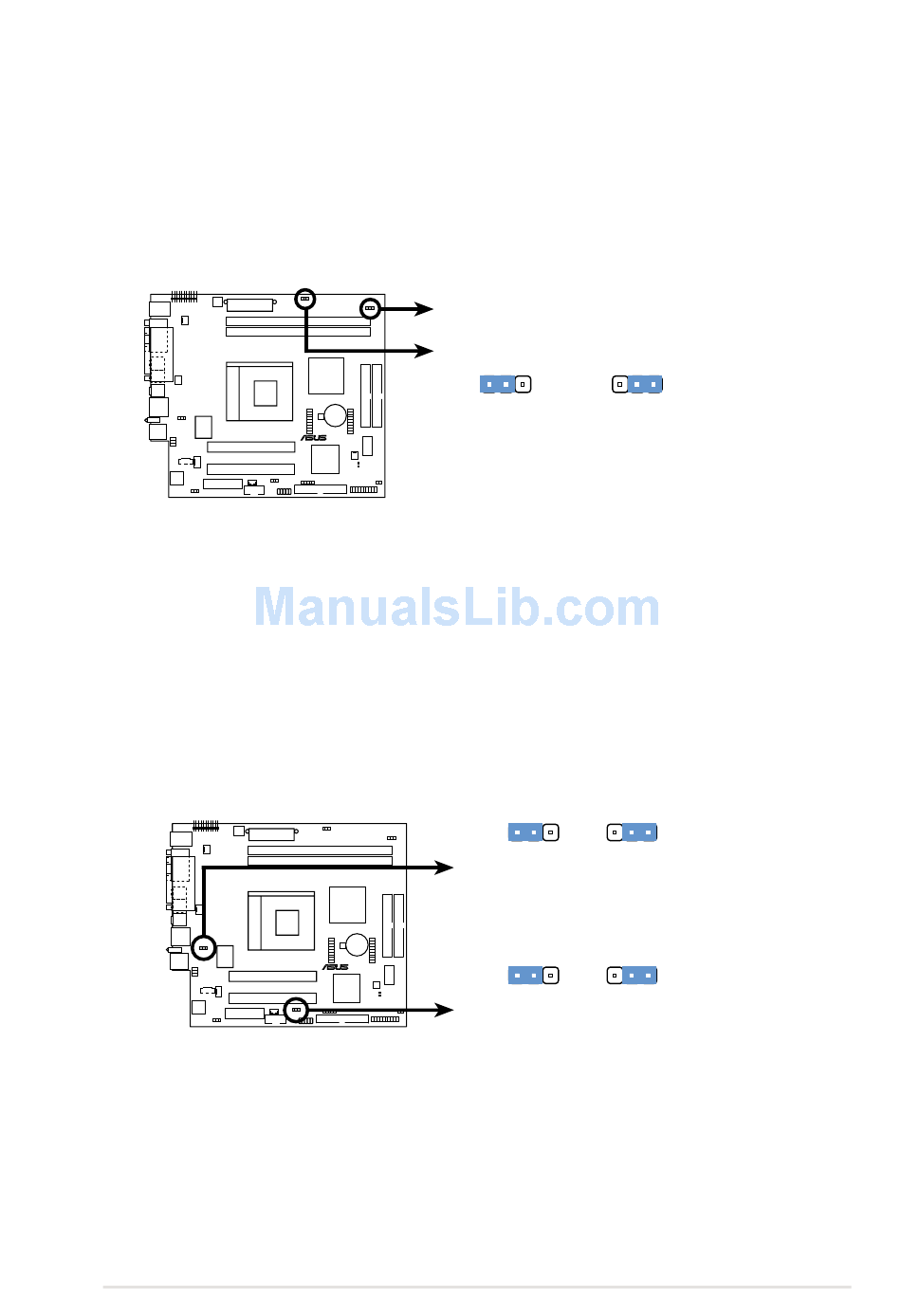

A7VC CPU FSB Frequency Setting
3. USB Device Wake Up (Front and Back Panel USB Ports).
Set these jumpers to +5V to allow wake up from S1 sleep state
(CPU stopped; RAM refreshed; system running in low power
mode) using the connected USB devices. Set to +5VSB to allow
wake up from S3 state (no power to CPU; RAM in slow refresh;
power supply in reduced power mode).
A7VC USB Ports Setting
ASUS Terminator K7 Barebone System
A7VC
1 2
CPU 133MHz
®
A7VC
®
FS1 & FS2
2 3
CPU 100MHz
JP1A
1 2 2 3
+5V +5VSB
(Back Panel USB Port)
JP1B
1 2 2 3
+5V +5VSB
(Front Panel USB Port)
