5.5.6 Hardware Monitor

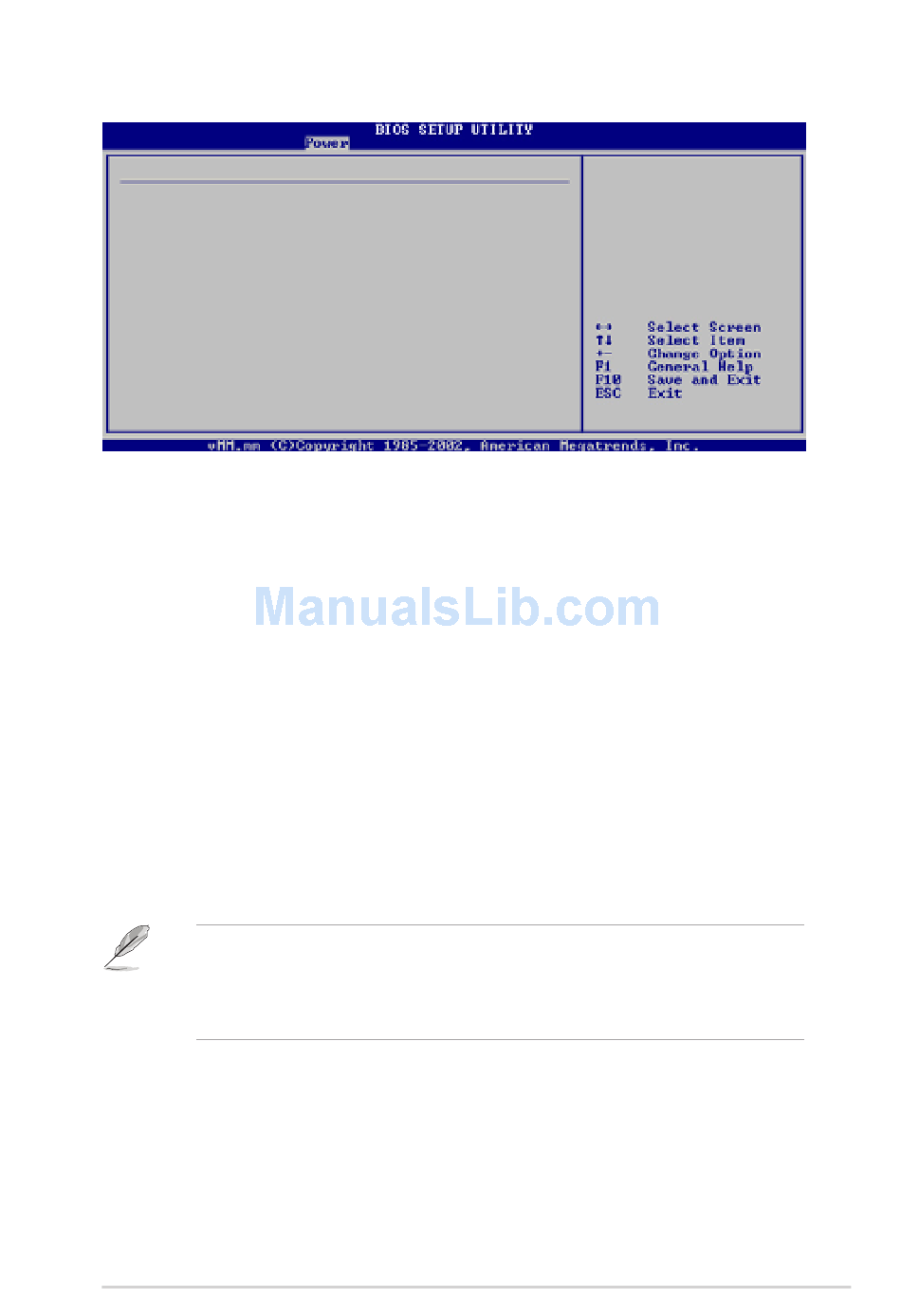

Hardware Monitor
MB Temperature
CPU Temperature
CPU Fan Speed
Chassis Fan Speed
VCORE Voltage
3.3V Voltage
5V Voltage
12V Voltage
SMART Q-Fan Function
Fan Auto Mode Start Voltage
Fan Auto Mode Start Temp
Fan Auto Mode Full Speed Temp [70°C]
MB Temperature [xxxºC/xxxºF]
CPU Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the
motherboard and CPU temperatures. Select [Disabled] if you do not wish
to display the detected temperatures.
CPU Fan Speed [xxxxRPM] or [N/A]
Chassis Fan Speed [xxxxRPM] or [N/A]
The onboard hardware monitor automatically detects and displays the CPU,
chassis, and power fan speeds in rotations per minute (RPM). If any of the
fans is not connected to the motherboard, the specific field shows N/A.
VCORE Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage
The onboard hardware monitor automatically detects the voltage output
through the onboard voltage regulators.
If any of the monitored items is out of range, the following error
message appears: "Hardware Monitor found an error. Enter Power
setup menu for details". You will then be prompted to "Press F1 to
continue or DEL to enter SETUP".
SMART Q-Fan Function [Enabled]
This item allows you to enable or disable the ASUS Smart Q-Fan feature
that smartly adjusts the fan speeds for more efficient system operation.
Configuration options: [Enabled] [Disabled]
ASUS Terminator 2 barebone system
[36°C/96.5°F]
[44°C/111°F]
[5234RPM]
[N/A]
[1.808V]
[3.376V]
[5.080V]
[11.977V]
[Enabled]
[5.0V]
[30°C]
CPU temperature.
