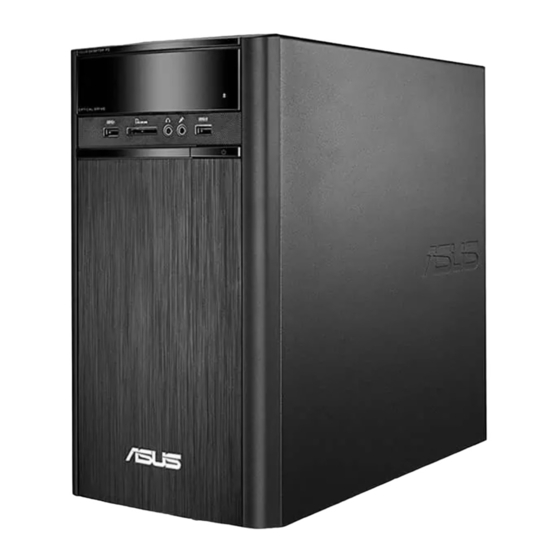

ASUS Desktop PC

A31BF / F31BF / K31BF / M32BF / K30BF

User Guide

A31BF / F31BF / K31BF
K30BF
M32BF

Advertisement

   Related Manuals for Asus A31BF

   Summary of Contents for Asus A31BF

  • Page 1: Asus Desktop Pc

    ASUS Desktop PC A31BF / F31BF / K31BF / M32BF / K30BF User Guide A31BF / F31BF / K31BF K30BF M32BF...

  • Page 2

    Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Contents Notices ..............................5 Safety information ........................... 9 Conventions used in this guide....................10 Where to find more information ....................10 Package contents ...........................11 Chapter 1: Getting started Welcome! ............................13 Getting to know your computer ....................13 Setting up your computer......................19 Turning your computer ON ......................22 Chapter 2: Connecting devices to your computer Connecting a USB storage device ....................23...

  • Page 4

    Putting your Desktop PC to sleep ....................61 Entering the BIOS Setup ......................65 Chapter 2: Using Windows® 10 Starting for the first time ......................67 Using the Windows 10 UI ......................68 ® Keyboard shortcuts ........................72 ASUS contact information ASUS contact information ......................74...

  • Page 5: Notices

    Notices ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions.

  • Page 6: Canadian Department Of Communications Statement

    Avertissement relatif aux batteries Lithium-Ion MISE EN GARDE: Danger d’explosion si la pile n’est pas remplacée correctement. Remplacer uniquement avec une pile de type semblable ou équivalent, recommandée par le fabricant. Mettez au rebut les batteries usagées conformément aux instructions du fabricant.

  • Page 7: Installation Site

    VCCI: Japan Compliance Statement VCCI Class B Statement This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or television receiver, it may cause radio interference. Install and use equipment according to the instruction manual.

  • Page 8

    BSMI: Taiwan Wireless Statement Japan RF Equipment Statement KC (RF Equipment)

  • Page 9: Safety Information

    Safety information Disconnect the AC power and peripherals before cleaning. Wipe the Desktop PC using a clean cellulose sponge or chamois cloth dampened with solution of nonabrasive detergent and a few drops of warm water then remove any extra moisture with a dry cloth. DO NOT place on uneven or unstable work surfaces.

  • Page 10: Conventions Used In This Guide

    Where to find more information Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS website www.asus.com. ASUS Local Technical Support Visit ASUS website at http://support.asus.com/contact for the contact information of local...

  • Page 11: Package Contents

    Package contents ASUS Desktop PC Keyboard x1 Mouse x1 Power cord x1 Warranty Card x1 Installation Guide x1 DVD/SDVD/RDVD x1 Dipole antenna x1 (optional) / Antenna x 1 (optional) (optional) • If any of the above items is damaged or missing, contact your retailer. • The illustrated items above are for reference only. Actual product specifications may vary with different models.

  • Page 13: Chapter 1: Getting Started

    All these values are encapsulated in a stunningly futuristic and stylish system casing. Read the ASUS Warranty Card before setting up your ASUS Desktop PC. Getting to know your computer Illustrations are for reference only. The ports, their locations and the chassis color vary with different models.

  • Page 14: Front Panel

    MultiMediaCard(MMC) / xD-Picture (XD) / Secure Digital™ (SD) / High Capacity Secure Digital™(SDHC) / Memory Stick Pro™(MS/PRO) card slot. Insert a supported memory card into this slot. Headphone port. This port connects to a headphone or speaker. Supported by ASUS Audio Wizard. Microphone port. This port connects to a microphone.

  • Page 15

    Insert a supported memory card into this slot. Microphone port. This port connects to a microphone. Headphone port. This port connects to a headphone or speaker. Supported by ASUS Audio Wizard. Power button. Press this button to turn on your computer.

  • Page 16

    Optical disk drive eject button. Press this button to eject the optical disk drive tray. Optical disk drive bay. There is an optical disk drive in this bay. K30BF MultiMediaCard(MMC) / xD-Picture (XD) / Secure Digital™ (SD) / High Capacity Secure Digital™(SDHC) / Memory Stick Pro™(MS/PRO) card slot.

  • Page 17: Rear Panel

    Headphone port. This port connects to a headphone or speaker. Supported by ASUS Audio Wizard. Power button. Press this button to turn on your computer. Optical disk drive bay. There is an optical disk drive in this bay. Rear panel Voltage selector switch.

  • Page 18

    Expansion slot brackets. Remove the expansion slot bracket when installing an expansion card. ASUS WLAN Card (on selected models only). This optional WLAN card allows your computer to connect to a wireless network. ASUS Graphics Card (on selected models only). The display output ports on this optional ASUS Graphics Card may vary with different models.

  • Page 19: Setting Up Your Computer

    Connecting an external monitor Using the ASUS Graphics Card (on selected models only) Connect your monitor to the display output port on the discrete ASUS Graphics Card. To connect an external monitor using the ASUS Graphics Card: Connect a monitor to a display output port on the ASUS Graphics Card.

  • Page 20

    Connect a VGA monitor to the VGA port, or a DVI-D monitor to the DVI-D port, or an HDMI monitor to the HDMI port on the rear panel of your computer. Plug the monitor to a power source. • If your computer comes with an ASUS Graphics Card, the graphics card is set as the primary display device in the BIOS. Hence, connect your monitor to a display output port on the graphics card.

  • Page 21: Connecting The Power Cord

    Connecting the power cord Connect one end of the power cord to the power connector on the rear panel of your computer and the other end to a power source. ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 22: Turning Your Computer On

    Turning your computer ON To turn your computer ON: Turn your monitor ON. Press the power button on your computer. Power button A31BF / F31BF / K31BF Power button K30BF M32BF Wait until the operating system loads automatically. Chapter 1: Getting started...

  • Page 23: Chapter 2: Connecting Devices To Your Computer

    This desktop PC provides USB 2.0/1.1 and USB 3.0 ports on both the front and rear panels. The USB ports allow you to connect USB devices such as storage devices. To connect a USB storage device: • Insert the USB storage device to your computer. Front panel A31BF / F31BF / K31BF K30BF M32BF ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 24: Removing A Usb Storage Device

    Rear panel Removing a USB storage device Windows ® To remove a USB storage device on Windows 8.1: ® From the Start screen, click Desktop to launch the Desktop Mode. Click from the taskbar, then click Eject [Name of USB Drive]. When the Safe to Remove Hardware message pops up, remove the USB storage device from your computer.

  • Page 25: Connecting Microphone And Speakers

    The audio I/O ports located on the rear panel allow you to connect 2.1-channel, 4.1-channel, 5.1-channel and 7.1-channel stereo speakers. Connecting Headphone and Mic A31BF / F31BF / K31BF M32BF ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 26

    K30BF Connecting 2.1-channel Speakers Connecting 4.1-channel Speakers Chapter 2: Connecting devices to your computer...

  • Page 27

    Connecting 5.1-channel Speakers Connecting 7.1-channel Speakers ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 28: Connecting Multiple External Displays

    Connecting multiple external displays Your desktop PC may come with VGA, HDMI, or DVI ports and allows you to connect multiple external displays. When a graphics card is installed in your computer, connect the monitors on the output ports of the graphics card.

  • Page 29: Connecting An Hdtv

    Connecting an HDTV Connect a High Definition TV (HDTV) to the HDMI port of your computer. • You need an HDMI cable to connect the HDTV and the computer. The HDMI cable is purchased separately. • To get the best display performance, ensure that your HDMI cable is less than 15 meters. ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 30

    Chapter 2: Connecting devices to your computer...

  • Page 31: Chapter 3: Using Your Computer

    • Place the monitor directly in front of you, and turn the top of the monitor screen even with your eye level so that your eyes look slightly downward. • Keep the mouse close to the keyboard, and if necessary, use a wrist rest for support to reduce the pressure on your wrists while typing. • Use your Desktop PC in a comfortably-lit area, and keep it away from sources of glare such as windows and straight sunlight. • Take regular mini-breaks from using your Desktop PC. ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 32: Using The Memory Card Reader

    Using the memory card reader Digital cameras and other digital imaging devices use memory cards to store digital picture or media files. The built-in memory card reader on the front panel of your system allows you to read from and write to different memory card drives.

  • Page 33: Using The Optical Drive

    • O n Windows® 8.1, right-click the CD/DVD drive icon on the Computer screen, and click Eject. • O n Windows ®10, click File Explorer from the Start menu, right-click the CD/DVD drive icon, and click Eject. Remove the disc from the disc tray. ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 34

    Chapter 3: Using your computer...

  • Page 35: Chapter 4: Connecting To The Internet

    Turn on the DSL/cable modem and your computer. Configure the necessary Internet connection settings. • Contact your network administrator for details or assistance in setting up your Internet connection. • For more details, refer to the sections Configuring a dynamic IP/PPPoE network connection or Configuring a static IP network connection. ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 36

    Connecting via a local area network (LAN) To connect via a LAN: Connect one end of an RJ-45 cable to the LAN (RJ-45) port on the rear panel of your computer and the other end to your LAN. RJ-45 cable Turn on your computer.

  • Page 37

    Windows® 10 • Do either of these two ways: , then click Open Network and Sharing Center. • F rom the taskbar, right-click • F rom the Start menu, click Settings > Network & Internet > Ethernet > Network and Sharing Center. ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 38

    From the Open Network and Sharing Center screen, click Change Adapter settings. Right-click on your LAN and select Properties. Click Internet Protocol Version 4(TCP/ IPv4) and click Properties. Click Obtain an IP address automatically and click OK. Continue to the next steps if you are using PPPoE connection. Chapter 4: Connecting to the Internet...

  • Page 39

    Click Use the following IP address. Enter the IP address, Subnet mask and Gateway from your service provider. If needed, enter the preferred DNS Server address and alternative address. When done, click OK. ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 40

    Chapter 4: Connecting to the Internet...

  • Page 41: Chapter 5: Troubleshooting

    Select the program that is not responding, then click End Task. • If the keyboard is not responding, press and hold the Power button until the computer shuts down. Then press the Power button to turn it on. I cannot connect to a wireless network using the ASUS WLAN Card (on selected models only)? • Ensure that you enter the correct network security key for the wireless network you want to connect to.

  • Page 42

    No display on the monitor. • Check if the monitor is powered on. • Ensure that your monitor is properly connected to the video output port on your computer. • If your computer comes with a discrete graphics card, ensure that you connect your monitor to a video output port on the discrete graphics card. • Check if any of the pins on the monitor video connector is bent. If you discover bent pins, replace the monitor video connector cable. • Check if your monitor is plugged to a power source properly. • Refer to the documentation that came with your monitor for more troubleshooting information. When using multiple monitors, only one monitor has display. •...

  • Page 43

    Right click anywhere on your Desktop Mode screen. When the pop-up menu appears, click Personalize > Display > Change display settings. On Windows ® From the Start menu, click Settings > System > Display. ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 44

    My speakers produce no sound. • Ensure that you connect your speakers to the Line out port (lime) on the front panel or the rear panel. • Check if your speak is connected to an electrical source and turned on. • Adjust your speakers’ volume. • Ensure that your computer’s system sounds are not Muted. • If it is muted, the volume icon is displayed as . To enable the system sounds, click from the Windows notification area, then click • If it is not muted, click and drag the slider to adjust the volume. •...

  • Page 45

    • I f you are using a discrete VGA card, after turning the VGA port on your computer. connect the signal cable to the discrete computer on VGA port. (Black screen) Signal cable problems Try connecting to another monitor. ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 46

    Ensure the LAN LED is on. If not, try LAN cable problems another LAN cable. If it still does not work, contact the ASUS service center. Your computer is not Ensure that your computer is properly Cannot access the properly connected to a connected to a router or hub.

  • Page 47

    There is not enough Move your computer to an area with air ventilation for your better air flow. computer. Incompatible softwares are Reinstall the OS and reinstall installed. compatible softwares. ASUS A31BF / F31BF / K31BF / M32BF / K30BF...

  • Page 48

    • C ontact the ASUS Service Center for assistance. If the problem still persists, refer to your Desktop PC’s warranty card and contact the ASUS Service Center. Visit the ASUS Support site at http://support.asus.com for the service center information. Chapter 5: Troubleshooting...

  • Page 49: Windo S® 10 User Manual

    ASUS Desktop PC Windows 8.1 / Windows® 10 ® User Manual Appendix Windows 8.1 / Windo s® 10 User Manual ® E10899 First Edition September 2015 Copyright © ASUSTeK Computer Inc. All Rights Reserved...

  • Page 51: Chapter 1: Using Windows 8.1

    Windows®8.1 functionalities. Windows 8.1 lock screen ® The Windows®8.1 lock screen may appear when your Desktop PC enters the Windows®8.1 operating system. To proceed, tap on the lock screen or press any key on your Desktop PC's keyboard. ASUS Desktop PC...

  • Page 52: Using The Windows Ui

    Using the Windows ® The Windows User Interface (UI) is the tile-based display used in Windows 8.1. It includes the ® ® following features you can use while working on your Desktop PC. Start screen The Start screen appears after successfully signing in to your user account. It helps organize all the programs and applications you need in just one place.

  • Page 53

    Onscreen hotspots allow you to launch programs and access the settings of your Desktop PC. The functions in these hotspots can be activated using your mouse. Hotspots on a running app Hotspots on the Start screen Refer to the next page for the Hotspots’ functions. ASUS Desktop PC...

  • Page 54

    Hotspot Action upper left corner Hover your mouse pointer then click on the recent app’s thumbnail to go back to that app. Move your mouse pointer down to display all the running apps. lower left corner From a running app screen: Hover your mouse pointer on the lower left corner then to go back to the Start screen.

  • Page 55: Working With Windows Apps

    Move your mouse pointer on the top side of the launched app then wait for the pointer to change to a hand icon. • Drag then drop the app to the bottom of the screen to close it. • From the running app’s screen, press <Alt> + <F4>. ASUS Desktop PC...

  • Page 56

    Accessing the All Apps screen From the All Apps screen, you can configure an apps settings or pin an app to the Start screen or to the Desktop mode taskbar. Launching the All Apps screen • On the Start screen, click • From the Start screen, press <Tab>, then press <Enter> on your keyboard. Pinning an app on the Start screen Launch the All Apps screen.

  • Page 57: Charms Bar

    When called out, the Charms bar initially appears as a set of white icons. The image above shows how the Charms bar looks like once activated. Use your Desktop PC’s mouse or keyboard to launch the Charms bar. • Move your mouse pointer on the upper or lower right corner of the screen. • Press + <C>. ASUS Desktop PC...

  • Page 58

    Inside the Charms bar Search This charm allows you to look for files, applications, or programs in your Desktop PC. Share This charm allows you to share applications via social networking sites or email. Start This charm reverts the display back to the Start screen. From the Start screen, you can also use this to revert back to a recently opened app.

  • Page 59

    Once the pointer changes to a hand icon, drag and drop the app to the right or left side of the display panel. Using your keyboard • Launch an app then press + < . > + left or right key to place the first app on the left or right side of the display panel. ASUS Desktop PC...

  • Page 60: Other Keyboard Shortcuts

    Other keyboard shortcuts Using your keyboard, you can also use the following shortcuts to help you launch applications and navigate Windows 8.1. ® Switches between the Start screen and the last running app. Launches the desktop. + <D> Launches the Computer window on the desktop. + <E>...

  • Page 61: Recovering System

    Back up all your data before using this option. To reset your PC: Press <F9> during bootup. From the screen, click Troubleshoot. Select Reset your PC. Click Next. Select Only the drive where the Windows is installed. Select Just remove my files. Click Reset. ASUS Desktop PC...

  • Page 62: Recovering From A System Image File

    8.1. In case your operating system fails, use the bundled recovery DVD to ® reinstall your system. • Ensure that all data are backed up before doing a full recovery of your operating system to avoid losing important files. Download the multi-language versions of this notice from the ASUS Support site at http://support.asus.com To reset your PC by using Recovery DVD: • Back up all your data before using this option. • Disconnect all external hard disk drives before performing system recovery on your Desktop PC to avoid restoring Windows on the wrong partition or drive.

  • Page 63

    Next. Select the USB storage device where you want to copy the recovery files. Click Next. Click Create. Wait for a while for the process to complete. When the process is completed, click Finish. ASUS Desktop PC...

  • Page 64: Removing Everything And Reinstalling Windows

    Removing everything and reinstalling Windows Restoring your PC to its original factory settings can be done using the Remove everything and reinstall option s in PC Settings. Refer to the steps below to use this option. Back up all your data before using this option. This process may take a while to complete.

  • Page 65: Entering The Bios Setup

    Reconnect the power cord and press the power button to turn on your Desktop PC. Press <Del> during POST. POST (Power-On Self Test) is a series of software controlled diagnostic tests that run when you turn on your Desktop PC. ASUS Desktop PC...

  • Page 66

    Chapter 1: Using Windows ®...

  • Page 67: Chapter 2: Using Windows

    Follow the onscreen instructions to configure the following basic items: • Personalize • Get online • Settings • Your account Wait until Windows® 10 finishes installing the apps and system settings. After the installation, the Windows® 10 desktop appears. ASUS Desktop PC...

  • Page 68: Using The Windows 10 Ui

    Using the Windows 10 UI ® The Windows 10 User Interface (UI) includes the favorite Start menu and the tiled-format on the ® Start screen. It includes the following features you can use while working on your Desktop PC. Click your account name to change the Click to expand the Start screen picture, sign out of your account, or lock your Desktop PC...

  • Page 69: Start Screen

    Moving apps on the Start screen You can move apps from the Start screen simply through dragging and dropping the app to your preferred location. Unpinning apps from the Start screen To unpin an app from the Start screen, right-click on the app to activate its settings bar then click Unpin from Start. ASUS Desktop PC...

  • Page 70

    Taskbar Windows® 10 comes with the standard taskbar, which stores all your currently running apps or items in the background. Unpinning apps from the taskbar From the Start screen or taskbar, right-click the app you want to unpin. Click Unpin from Start or Unpin this program from taskbar to remove the app from the Start screen or taskbar.

  • Page 71

    Snap another app to your preferred location on the screen. Using your keyboard a) Launch an app, press and the arrow keys to select the direction where you want to snap the app in place. b) Snap another app using and the arrow keys. ASUS Desktop PC...

  • Page 72: Keyboard Shortcuts

    Keyboard shortcuts Using your keyboard, you can also use the following shortcuts to help you launch apps and navigate Windows ® Switches between the Start screen and the last running app Launches the desktop + <D> Launches File Explorer + <E> Activates the File search function + <F> or + <W>...

  • Page 73

    This process may take a while to complete. From the Start menu, click Settings > Update & security > Recovery. Scroll down to view the Remove everything and reinstall Windows option. Under this option, click Get started. Follow the onscreen instructions to complete the reinstallation and reset process. ASUS Desktop PC...

  • Page 74: Asus Contact Information

    +1-510-739-3777 Fax +1-510-608-4555 Web site usa.asus.com Technical Support Telephone +1-812-282-2787 Support fax +1-812-284-0883 Online support support.asus.com ASUS COMPUTER GmbH (Germany and Austria) Address Harkort Str. 21-23, D-40880 Ratingen, Germany Fax +49-2102-959931 Web site asus.com/de Online contact eu-rma.asus.com/sales Technical Support Telephone (Component) +49-2102-5789555...
