12. IOC_MB Connector (22-pin)
This connects the motherboard to the CGAEX extension module
which contains the COM1 and GAME ports.

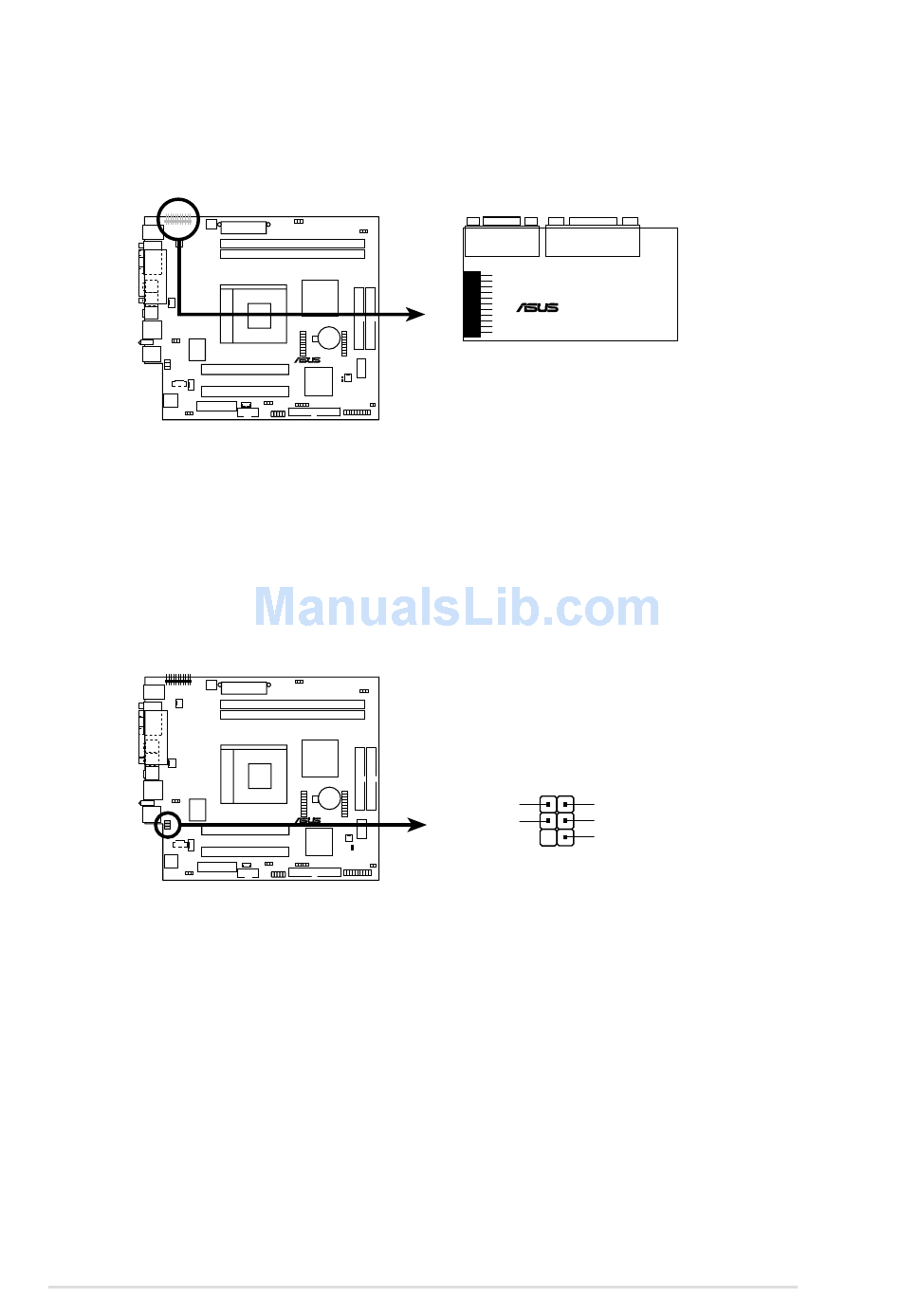

A7VC IOC_MB Connector
13. Internal Microphone (2-pin) and FLOUT (3-pin) Connectors
This connector allows you to connect chassis mounted
microphone to the motherboard instead of having to attach an
external microphone onto the ATX connectors. Connect the Line
Out/Mic cable to the FLOUT/MIC2 connector.
A7VC Microphone Header
60
A7VC
®
A7VC
MIC PWR
MIC Signal
®
Chapter 3: Motherboard Information
COM1 GAME
®
CGAEX
IOC_DC
MIC2 FLOUT
1
Head set Right channel
Head set Left channel
GND
