INSTALLATION

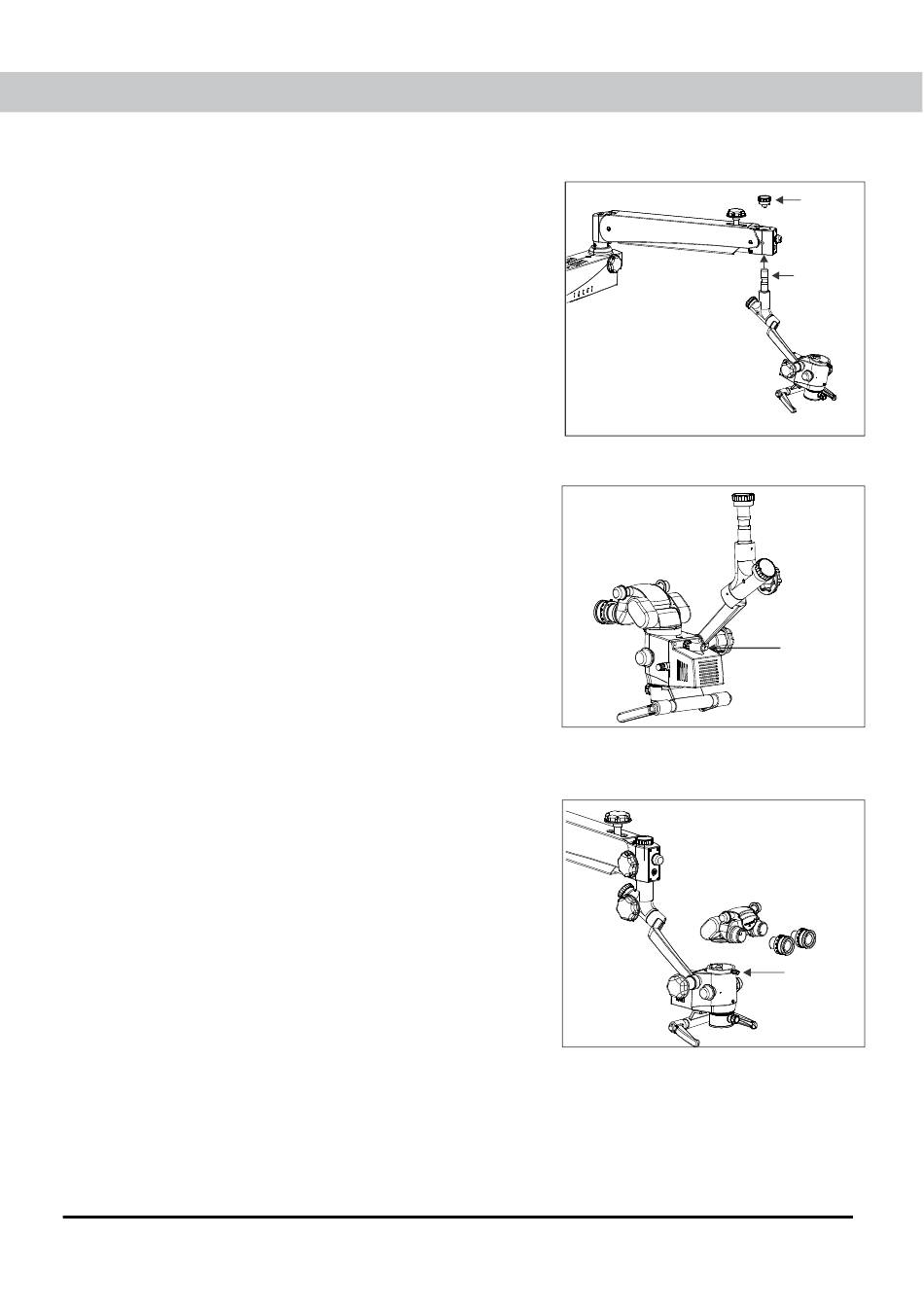

7.4 Retrieve the carrier assembly from the packing
and follow as below refer Fig.-4.
•
Install the coupling to the suspension arm by
sliding the guiding shaft (1) into the suspension
arm.
•
Lock the inclined coupling with the threaded plug
(2).
7.5 Providing power to LED
•
Switch off the illumination system
•
The power comes pre-routed through swivel arm
(that houses the power system) and the suspension
arm.
•
Insert the power supply wire into the receptacle in
the microscope till it properly tighten into position
as shown as A in Fig.-5.
•
Make sure that wire has been routed in such a way
that the carrier system and the surgical microscope
are not obstructed, and that they
in their entire range of movement without stretch-
ing, extreme, kinking or twisting of the light guide.
7.5 Install the binocular head and eyepieces on the
magni-changer. Secure the binocular head with
head locking screw shown as (A) in Fig.-6.
6210000-795
be moved
Prima Mµ
Prima Mµ
2
1
Fig. 4
A
Fig. 5
A
Fig. 6
Issue 1.6
Printed on Jan.,2021
9
