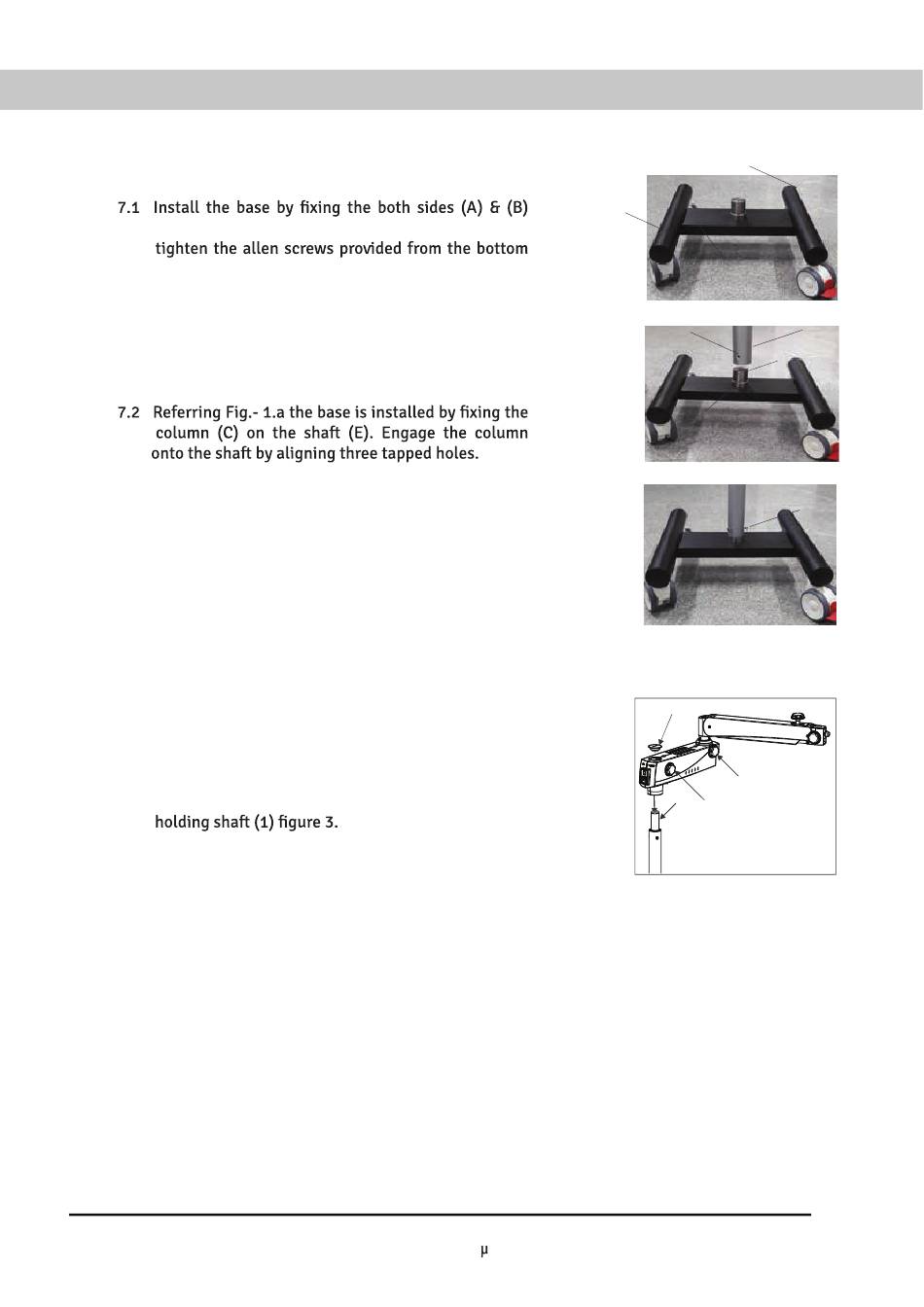

7. INSTALLATION
on the metal plate (D) as shown in Fig.-1 by
of the metal plate.
Referring Fig.- 2 tighten three allen screws (H) with
4mm allen wrench.
7.3 Retrieve the swivel arm and suspension arm
assembly from the packing box and follow
Instruction as below (refer Fig.-3)
Ensure loosening of swivel arm lock knob (A).
Install the swivel arm assembly on the upright
Lock the swivel arm with threaded screw (2) from
the top.
Loosen suspension arm locking (B) knobs so that it
can be rotated.
