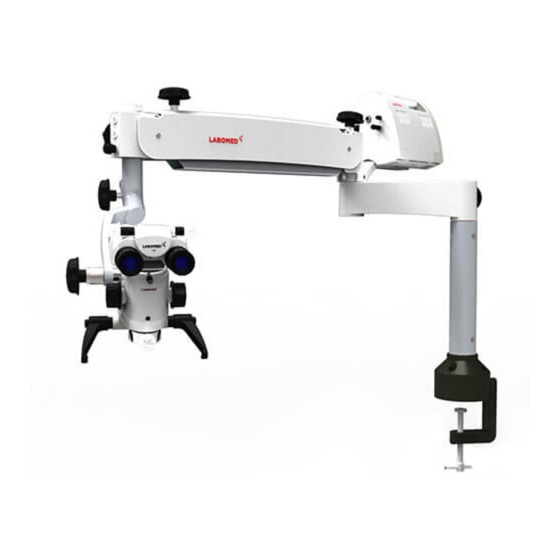

- Page 1 PRIMA DNT Trainer User Manual Operating Surgical Microscopy Part No: 6167500-795 Issue1.0 Printed on: May 2013 To ensure proper use of this instrument as well as to avoid injury while operating instrument, understanding this manual completely before use is highly recommended.
- Page 2 Prima DNT Trainer Warnings & Cautions LABOMED is not responsible for the safety and reliability of this instrument when: • Assembly, disassembly, repair, or modification is made by unauthorized dealers or persons. • Instrument is not used in accordance with this User’s Guide.
- Page 3 CAUTION: THIS INSTRUMENT IS NOT TO BE US ED NEAR HIGH-FREQUENCY EMITTING SURGICAL EQUIPMENT. CAUTION: THIS INSTRUMENT IS NOT INTENDED TO BE CONNECTED TO EQUIPMENT OUTSIDE THE CONTROL OF LABOMED OR MUST BE TESTED TO AN APPLICABLE IEC OR ISO STANDARDS. Issue 1.0...
-
Page 4: Table Of Contents
Prima DNT Trainer CONTENTS Key to symbols Introduction Safety Instructions Special Instruction for Installation & Use Warning labels and notes Unpacking Description of Parts System Diagram Installation & Instruction Installation 10-11 Electric Connection Controls Instruction for using the microscope 13-14 Changing the Objectives &... -
Page 5: Introduction
Prima DNT Trainer INTRODUCTION The LABOMED Prima DNT Trainer is designed to be used during teaching program in restorative dentistry, which is adaptable for different surgical needs without compromise to performance. The microscope provides extremely high optical image quality, good depth of focus and wide field of view for precise surgery. -
Page 6: Safety Instructions
Safety This instrument described in this manual has been developed and tested in accordance with LABOMED safety standards and with national and international regulations. A high degree on instrument safety is thus ensured. This manual contains information on safety aspects governing the use of this product and brief summary of important precaution for this user. - Page 7 — The instrument must be operated for its intended use and only after duly understanding the operation instructions or undergoing training on use of the instrument by a LABOMED authorized representative. — Only use the instrument with the accessories supplied. Should you wish to use other accessories equipment, make sure that LABOMED or the equipment manufacturer has certified that its use will not repair the safety of the instrument.
-
Page 8: Special Instruction For Installation & Use
Prima DNT Trainer Requirement for operation Installation of the instrument must only be carried out by an authorized LABOMED agent or representative. Please make sure that the following requirements for operation remain fulfilled in the future: - All mechanical connections(details in the user’s manual) which are relevant to safety and properly connected and screw connections tightened. - Page 9 Prima DNT Trainer safety compliance brand name of 7.5 kg. Please consult the user manual for the suspension system about the admissible maximum load. Compliance to Medical Device Directive 93/42/EEC Accompanying Document must be consulted Catalog Number Protective Earth Issue 1.0...
-
Page 10: Warning Labels And Notes
Prima DNT Trainer (Conti...) This Way Up – Indicates correct upright position of the transport package. Keep Dry – Transport package shall be kept away from rain. The CE mark (an acronym for the French "Conformite Europeenne") certifies that a product... -
Page 11: Unpacking
Prima DNT Trainer UNPACKING The appliance is delivered in sub-assembled groups along with one set of Installation Kit and one instruction / service manual. Please check following at the time of unpacking: Table Mount 2. Column 3. Swivel arm and Suspension arm assembly with fibre optic cable. -
Page 12: Description Of Parts
Prima DNT Trainer DESCRIPTION OF PARTS Fig. 1 Table Clamp Column Swivel Arm locking knob eVALUX Illumination Box Tension Adjustment Knob Suspension Arm Suspension arm hydraulic movement lock Illumination Control Knob Binocular head with eyepieces Magnichanger Knob 11. Magnichanger Locking Knob 12. -
Page 13: System Diagram
Prima DNT Trainer SYSTEM DIAGRAM 6167500-815 6167500-500 6167500-803 6132012 6132012 6137000-000 6122015 6135100-800 6121035 6133250-801 6133400-801 6133200-801 6133300-801 6165000-979 6137300 Issue 1.0... - Page 14 Prima DNT Trainer Description of Part No. Part No. Description 1. 6167500-803 Swivel arm 2. 6167500-815 Suspension Arm Assembly 3. 6167500-500 eVALUX Illumination Box 4. 6137000-000 Microscope Carrier & Magnichanger Assembly 5. 6132012 12.5x Eyepiece 6. 6132010 10x Eyepiece 7. 6121035 45°...
-
Page 15: Installation
Prima DNT Trainer INSTALLATION 7.1 Engage the column on the table top by tighten the clamping screw from the bottom as shown as (A) in Fig. 2. Fig. 2 7.2 Retrieve the swivel arm and suspension arm assembly from the packing box. - Page 16 Prima DNT Trainer 7.4 Retrieve the carrier assembly from the packing and follow as below refer Fig. 5. — Install the coupling to the suspension arm by sliding the guiding shaft (1) to the suspension arm. — Lock the inclined coupling with the threaded plug (3).
-
Page 17: Electric Connection
Prima DNT Trainer Electrical Connections Connect the power cable to the AC inlet socket (2) provided on the back of the illumination box as shown as(1) in the fig 7. Switch on the power from on/off switch provided in the front of illumination box. -
Page 18: Instruction For Using The Microscope
Prima DNT Trainer INSTRUCTIONS FOR USING THE MICROSCOPE Setting up of Microscope: Clamp the table mount on the table properly. Although tension on microscope is factory preset as per the ordered configuration. Still user can adjust up and down force by tuning the knob (B) clockwise or anticlockwise. -
Page 19: Instruction For Using The Microscope
Prima DNT Trainer INSTRUCTIONS FOR USING THE MICROSCOPE Intended use: The PRIMA DNT Trainer surgical microscope has been designed for teaching procedures in the field of dentistry, i.e. the microscope meets the special requirements of this discipline. Description of the modules... -
Page 20: Changing The Objectives & Eyepieces
Prima DNT Trainer Changing the objectives / eyepieces 1. The objectives can be taken out by rotating it in anti-clock wise direction. It can be threaded in by rotating in clock wise direction. 2. To install the eyepieces, insert in the eye tubes of observation head. -
Page 21: Adjustment Of Tension
LED may get fuse. Here user needs to replace the LED only and thermal cut-off will start working again. To replace LED user may call LABOMED service personal or authorized dealer. LED Specifications: 3.7V, 13.5Amp... -
Page 22: Cleaning & Servicing
Wipe off any residue with a mixture of 50% ethyl alcohol and 50% distilled water plus a dash of household dish-washing liquid. 17.4 Sterilization The asepsis sets available from LABOMED contain rubber caps, sleeves and grips which can be sterilized in autoclaves. We recommend the following program for sterilization: Sterilization temperature: 134°... -
Page 23: Ambient Requirement
Prima DNT Trainer Ambient Requirement For operation Temperature Rel. +10°C..+40° C humidity (without 30%..90% condensation) Air pressure 700hPa..1,060hPa For transportation Temperature Rel. -40°C..+70°C and storage humidity (without 10%..100% condensation) Air pressure 500hPa..1,060hPa The unit meets the essential requirements stipulated in Annex I to the 93/42/EEC directive governing medical devices. -
Page 24: Troubleshooting Table
Prima DNT Trainer TROUBLESHOOTING TABLE This instrument is a high grade technological product and not required any special periodical maintenance if handed carefully. To ensure optimum performance and safe working order of the instruments, its safety must be checked once every 12months. We recommended having this check performance by our service representative as part of regular maintenance work. - Page 25 Prima DNT Trainer Problem Possible Cause Remedy Thermal cut-off in lamp Clean thermal cut-off with a housing is contaminated. dry brush; blow it clean, if necessary Defective fan. Failure of Contact service dept. system electronics. Illuminate surgical field using an Or illuminator. Contact service dept.
-
Page 26: Disposal
Prima DNT Trainer DISPOSAL Disposal must comply with locally applicable laws and regulations. Issue 1.0... -
Page 27: Specification
Prima DNT Trainer SPECIFICATIONS Technical Data (Specifications) Binocular tubes ° or 45° inclined head Eyepieces WF 10x/16mm with eye guards; optional WF 12.5x/16mm. Apochromatic magnichanger 0.4x, 0.6x, 1.0x, 1.6x & 2.5x Objective f=250mm, manual fine focus, Light source 50W LED Built-in filters Green &... -
Page 28: Dimensions
Prima DNT Trainer DIMENSIONS Dimensions Table Mount 600 mm 265 mm ±135° ±150° ±90° Issue 1.0... - Page 29 Fax: 510 991 9862 CA 94538 sales@laboamerica.com A16372 ISO 13485 LABOMED LABOMED and Prima DNT TRAINER are registered trademarks of Labo America, Inc. With a policy of continuous development, Labo America, Inc. reserves the right to change design and specifications without prior notice.
