USE OF ACCESSORIES
1. Install double beam splitter by replacing the binocular tube (straight or ergo).
2. Total four accessories are provided as follows
2.1 DSLR camera adapter for Nikon, Canon and Sony
2.2 CCD camera adapter for Mintron.
2.3 Adapter for Sony Handy-Cam.
2.4 Assistoscope for assistant viewing
3. Install any one or two accessories on any side (Left or right) of the beam splitter.
4. Reinstall binocular tube (straight or ergo) on double beam splitter.

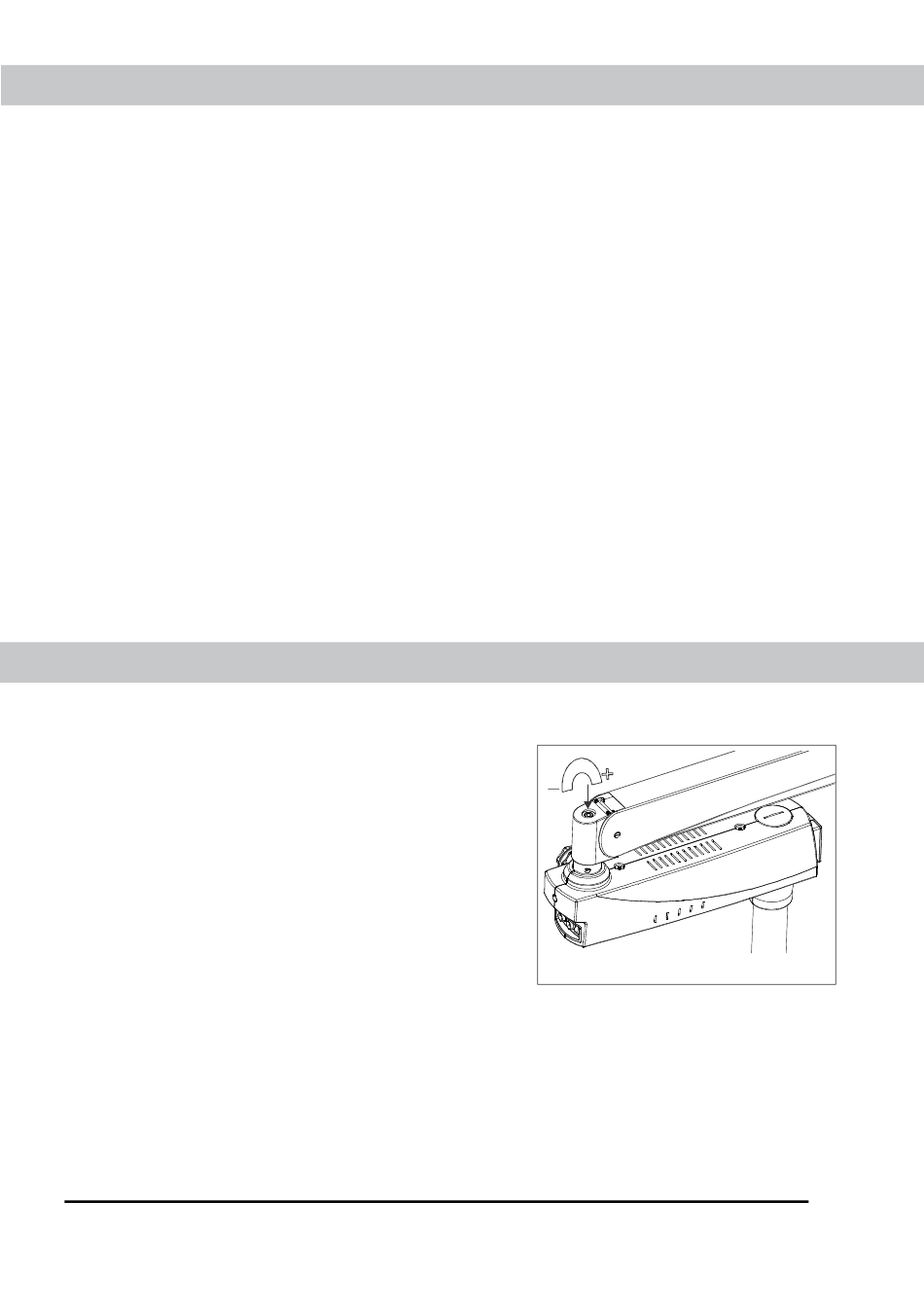

13. TENSION ADJUSTMENT
After Supplementary accessories are mount-
ed, the additional load of suspension arm
must be compensated by adjusting tension
on tension control screw provided on suspen-
sion arm by moving it clockwise or anticlock-
wise.
6210000-795
Prima Mµ
Prima Mµ
Prima Mµ
Fig 18
