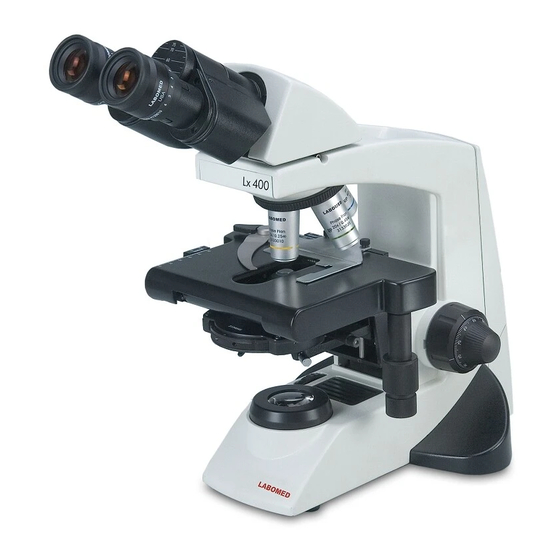

Summary of Contents for Labomed Lx 400
- Page 1 Lx 400 Research Microscopy User Manual To ensure proper use of this instrument as well as to avoid injury while operating Part No: 9126000-795 Instrument, understanding this manual completely before use is highly recommended. Issue 1.5 Printed on April,2019...
-
Page 3: Table Of Contents
Lx 400 TABLE OF CONTENTS 1. INTRODUCTION 2. SAFETY INFORMATION 3. Lx 400 BINOCULAR 4. Lx 400 TRINOCULAR 5. UNPACKING YOUR MICROSCOPE 6. STANDARD COMPONENTS 7. OPTIONAL ACCESSORIES 9-11 8. INITIAL SETUP 9. ASSEMBLY 13-14 10. SUMMARY OF BRIGHT FIELD OBSERVATION PROCEDURE 11. -
Page 4: Introduction
Lx 400 INTRODUCTION The Lx 400 is a research microscope reflecting a modern design as well as the latest in optical and mechani- cal advancements. Designed for professionals as well as clinicians, this microscope offers many features and functions for a diverse of applications. Here are a few points highlighting the benefits of the Lx400: -Extra clarity and contrast is provided through a 360°... -
Page 5: Safety Information
Do not place microscope on a flexible surface, as this could result in blocking the air vents and cause overheating. 4. Always use the power cord provided by LABOMED. If the proper power cord is not used, product safety performance cannot be warranted. - Page 6 Lx 400 Caution If the microscope is used in a manner not specified by this manual, the safety of the user may not be warranted. In addition, the equipment may also suffer damage. Always use the equipment as outlined in this instruction manual.
- Page 7 Lx 400 CARE & MAINTENANCE Your microscope had been engineered for a long and safe operational life with the least amount of main- tenance required. In general, routine maintenance is limited to keeping the microscope working parts lubricated and optics clean. Always cover the microscope with the provided dust cover when not in use.
-
Page 8: Lx 400 Binocular
Lx 400 Lx 400 BINOCULAR Binocular viewing tube, 30° inclined Eyepieces Observation tube Clamping screw Revolving nose piece Objectives Specimen holder Mechanical stage Abbe condenser Coarse and fine focus knob Filter holder On/Off intensity regulator X-Y movement control knob Issue 1.5... -
Page 9: Lx 400 Trinocular
Lx 400 Lx 400 TRINOCULAR Trinocular Port Trinocular viewing tube Eyepieces Observation tube clamping screw Revolving nose piece Objectives Specimen holder Mechanical stage Abbe condenser Coarse and Filter holder fine focus knob On/Off intensity regulator X-Y movement control knob Issue 1.5... -
Page 10: Unpacking Your Microscope
Lx 400 UNPACKING YOUR MICROSCOPE Power Cord Observation head Microscope Arm Eyepieces 9126000-795 Lx 400 Issue 1.5 Printed on April,2019... -
Page 11: Standard Components
Lx 400 STANDARD COMPONENTS After removing your microscope from its packaging, make sure that all of the following contents are present. “Please note that the contents of your microscope may vary as the optional configuration, contrasting method or viewing body opted for may not be of the standard configuration highlighted here”. -
Page 12: Optional Accessories
Lx 400 OPTIONAL ACCESSORIES SYSTEM DIAGRAM OF OPTIONAL ACCESSORIES VEGA CMOS CAMERA ATLAS CMOS CAMERA TOUCH SCREEN C-MOUNT ATLAS C-MOUNT VEGA C-MOUNT TOUCH SCREEN WF 10x WF 16x WF 20x BINOCULAR HEAD TRINOCULAR HEAD RP 4x RP 20x RP 40x (SL) - Page 13 Lx 400 OPTIONAL EYEPIECES 10X eyepieces are provided. To replace: 1. Pull out the 10x eyepieces out from the observation heads Ocular tube. 2. Insert desired eyepieces in empty ocular tube. Fig. 5 PHASE TURRET 1. Remove the condenser from its position by loosening the thumb screw (1) on right side of the condenser bracket as shown in figure 6.
- Page 14 Lx 400 Rotate anti clockwise 4. Open the illumination assembly as in (figure 9), by rotating T Ring the T Ring. Replace the lens B with frosted lens provided with the Lens B Koehler kit. Lens Spacer Secure the lens assembly back.
-
Page 15: Initial Setup
Lx 400 INITIAL SETUP OBJECTIVES Objectives are factory set. Objectives are par-centered and parfo- calised during assembly. All objectives have been secured for a tight fit to prevent them from coming loose during transit. To remove an objective, rotate it counterclockwise while holding it with a rubber grip to avoid any slippage. -
Page 16: Assembly
Always use the designated bulb. Using a bulb other than those specified by LABOMED may lead to a fore hazard or and low illumination. Fingerprints or stains on the lamp bulb reduce its life. - Page 17 3. Detach connector of connecting wires (shown as 4) 4. Remove two screws (shown as 6) provided on battery clamp with Cross head screw driver. 5. Replace existing Battery with new battery from LABOMED (Refer part no. below) 6. Reverse steps 5 to 1, to complete the process.
-
Page 18: Summary Of Bright Field Observation Procedure
Lx 400 SUMMARY OF BRIGHT FIELD OBSERVATION PROCEDURE Flip the main switch to “ON” Place the specimen on the stage. Fuse Holder Main switch Engage the required filters if not pre-installed. Engage the 10X objective in the light path. Bring the specimen in light path using X-Y Motion of mechanical stage. -
Page 19: Detailed Observation Procedure
Lx 400 DETAILED OBSERVATION PROCEDURE TURNING THE LAMP ON 1. Flip the main switch to “I” (ON) as shown in figure 20. Fig. 20 2. Rotating the light intensity adjustment knob (Fig. 21) in the direction of the arrow increases brightness and rotating knob in the opposite direction decreases brightness. - Page 20 Lx 400 Cover glass Cover glass This is the glass plate paced on the specimen. For optimum optical performance, the cover glass thickness, which is the distance from its surface to the specimen surface, should be 0.17mm. Slide glass Slide glass Fig.
- Page 21 Lx 400 ADJUSTING THE INERPUPILLARY DISTANCE (IPD) The inter-pupillary distance adjustment consists of regulating the two eyepieces to align with both eyes’ pupils so that you can observe a single microscope image through two eyepieces in stereo vision. This greatly helps to reduce fatigue and discomfort during observation.
- Page 22 Lx 400 CENTERING THE CONDENSER The condenser is fixed and cannot d-center. In case of any error, remove the condenser by loosening thumb screw and re-install the same. For models with Koehler illumination: The Koehler mount has the floating diaphragm mount (fig.
- Page 23 USING THE 100X IMMERSION OBJECTIVE The designated immersion oil should be in contact with the cover lens of the 100X immersion objective. If not, the specimen will appear distorted and dull. It is recommended that LABOMED immersion oil is always used. Immersion Process 1.
-
Page 24: Cleaning & Servicing
Lx 400 CLEANING AND SERVICING 12.1 CLEANING OF OPTICAL SURFACES: The Max lite multi-layer coating of the optical components (e.g. eyepieces objective lenses) ensured optimum images quality. Image quality is impaired by even slight contamination. To protect the internal optics from dust, the system should never be left without the objective lens, binocular tube and eyepieces. - Page 25 Lx 400 Ambient Requirement +10˚C..+40˚C For Operation Temperature Rel. Humidity 30%..90% (without condensation) Air Pressure 700hPa..1,060hPa Temperature -40˚C..+70˚C For Transportation and Storage Rel. Humidity 10%..100% (without condensation) Air Pressure 500hPa..1,060hPa The unit meets the essential requirements of directive 73/23/EEC (Low Voltage Directive) . The unit is marked with : CE and is compliant to IEC 61010-1.
-
Page 26: Disposal
Lx 400 DISPOSALS Disposal must comply with locally applicable laws and regulations. Issue 1.5 Lx 400 9126000-795 Printed on April,2019... -
Page 27: Troubleshooting Guide
Under certain conditions, performance of the unit may be adversely affected by factors other than defects. If problems occur, please review the following list and take corrective action as needed. If problem persists, please contact LABOMED or your local LABOMED dealer. OBSERVATION... - Page 28 Lx 400 OBSERVATION REMEDY CAUSE Set the specimen correctly with the The specimen slide is upside down 8. Objective hits the specimen when cover glass facing upwards an objective is switched to a higher magnification objective The cover glass is too thick Use a cover glass with thickness of 0.17mm...
-
Page 29: Specifications
Lx 400 SPECIFICATIONS 1. Illumination Built-in illumination system Halogen/ LED 2. Focusing mechanism Stage height adjustment mechanism Fine adjustment scale: 3.0µm per graduation Fine adjustment stroke: 0.3mm per turn Total stroke: 12.7mm Co-axial coarse and fine focusing on ball drive 3. -
Page 30: Dimensions
Lx 400 DIMENSIONS Issue 1.5 9126000-795 Lx 400 Printed on April,2019... - Page 31 Revision History Rev. No. Date of Release ECR # Change App. By System Diagram March 27,2019 ECR/08/19 S.Bal...
- Page 32 920 Auburn Court Fremont, CA 94538 U.S.A. Phone: 510-445-1257 Fax: 510-991-9862 E-mail: sales@laboamerica.com www.laboamerica.com EU REP. Labomed Europe Essebaan 50 NL-2908 LK Capelle a/d IJssel The Netherlands Tel: +31 (0)10 4584222 Fax: +31 (0)10 4508251 E-mail: info@labomedeurope.com A28240 ISO9001 LABOMED...
