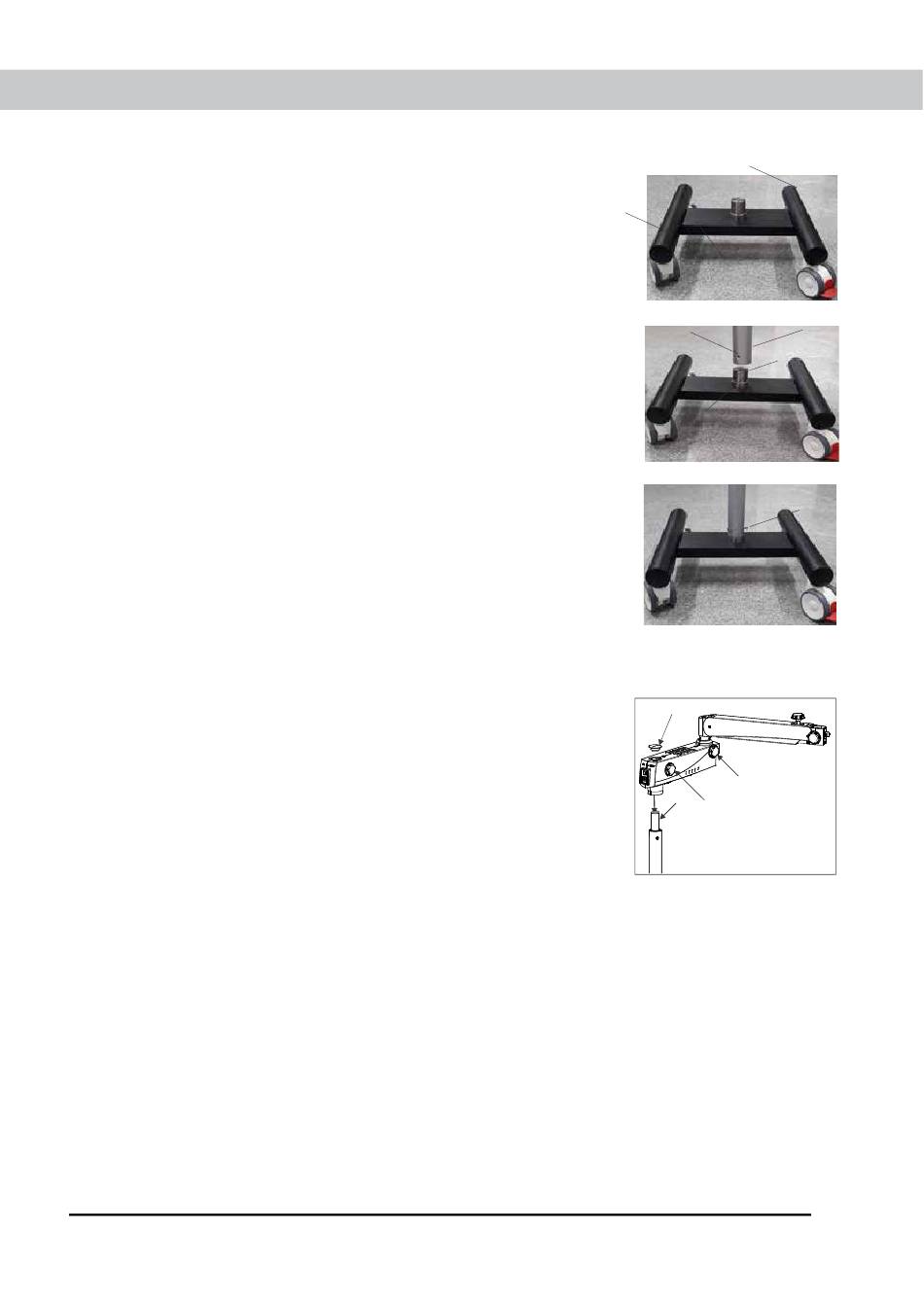

7. INSTALLATION
7.1 Install the base by fixing the both sides (A) & (B)
on the metal plate (D) as shown in Fig.-1 by
tighten the allen screws provided from the bottom
of the metal plate.
7.2 Referring Fig.- 1.a the base is installed by fixing the
column (C) on the shaft (E). Engage the column
onto the shaft by aligning three tapped holes.
Referring Fig.- 2 tighten three allen screws (H) with
4mm allen wrench.
7.3 Retrieve the swivel arm and suspension arm
assembly from the packing box and follow
Instruction as below (refer Fig.-3)
Ensure loosening of swivel arm lock knob (A).
Install the swivel arm assembly on the upright
holding shaft (1) figure 3.
Lock the swivel arm with threaded screw (2) from
the top.
Loosen suspension arm locking (B) knobs so that it
can be rotated.
6210000-795
Prima Mµ
B
A
D
Fig. 1
F
G
E
Fig. 1a
Fig. 2
2
B
1
A
Fig. 3
Issue 1.6
Printed on Jan.,2021
Prima Mµ
C
H
8
