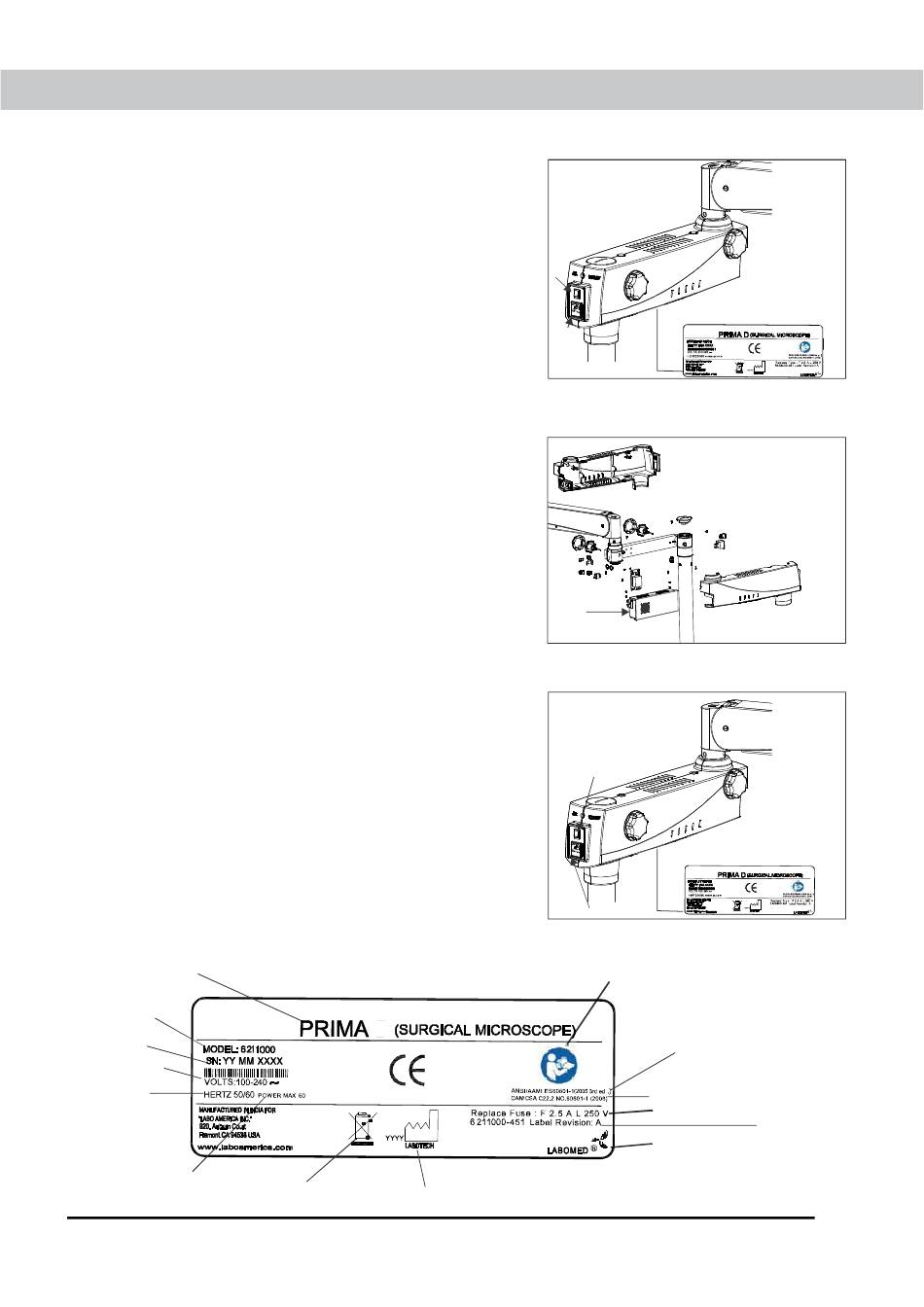

8. ELECTRICAL CONNECTIONS
Connect the power cable to the AC inlet socket
(2) provided on the back of the swivel arm as
shown in the fig.-7.
Switch on the power from on/off switch (1).
Note:
Power
supply
input 100V - 240V AC, 50/60HZ. To plug in follow
Instruction on electrical label provided at bottom
of the arm as shown (3) here in Fig.-7.

8.1 REPLACING THE ILLUMINATION SOURCE

Open
the
swivel
arm
optic cable and replace the illumination assembly
A with new assembly. Secure back the arm cover's.

8.2 FUSE REPLACEMENT

The fuse is located with the AC inlet, provided near
the on/off switch. Use a flat head screw driver to
open the fuse compartment. Two fuses are provided
in this, i.e. one is live fuse and second as spare fuse.
Replace the blown fuse with live fuse and secure
back the fuse compartment. For fuse replacement refer
label shown in fig.-9.
8.3 DATA PLATE FOR PRIMA Mµ MICRO-
SCOPE
Device Name
Model Number
Serial Number
Input Voltage
Frequency
Max. Load
6210000-795
is
designed
with
cover's.
Detach
Mu
W
Separate Disposal
Manufacturer
waste electric device
1
universal
2
the
fibre
A
On/Off Switch
AC Inlet
Prima Mµ
3
Fig. 7
Fig. 8
Fig. 9
Accompanying Document
must be consulted
IEC60601-1:2005
Labeling for USA & Europe
IEC60601-1:2005
Labeling for Canada
Fuse Rating
Label Control
Number
Company
Trademark
Issue 1.6
Printed on Jan.,2021
Prima Mµ
10
