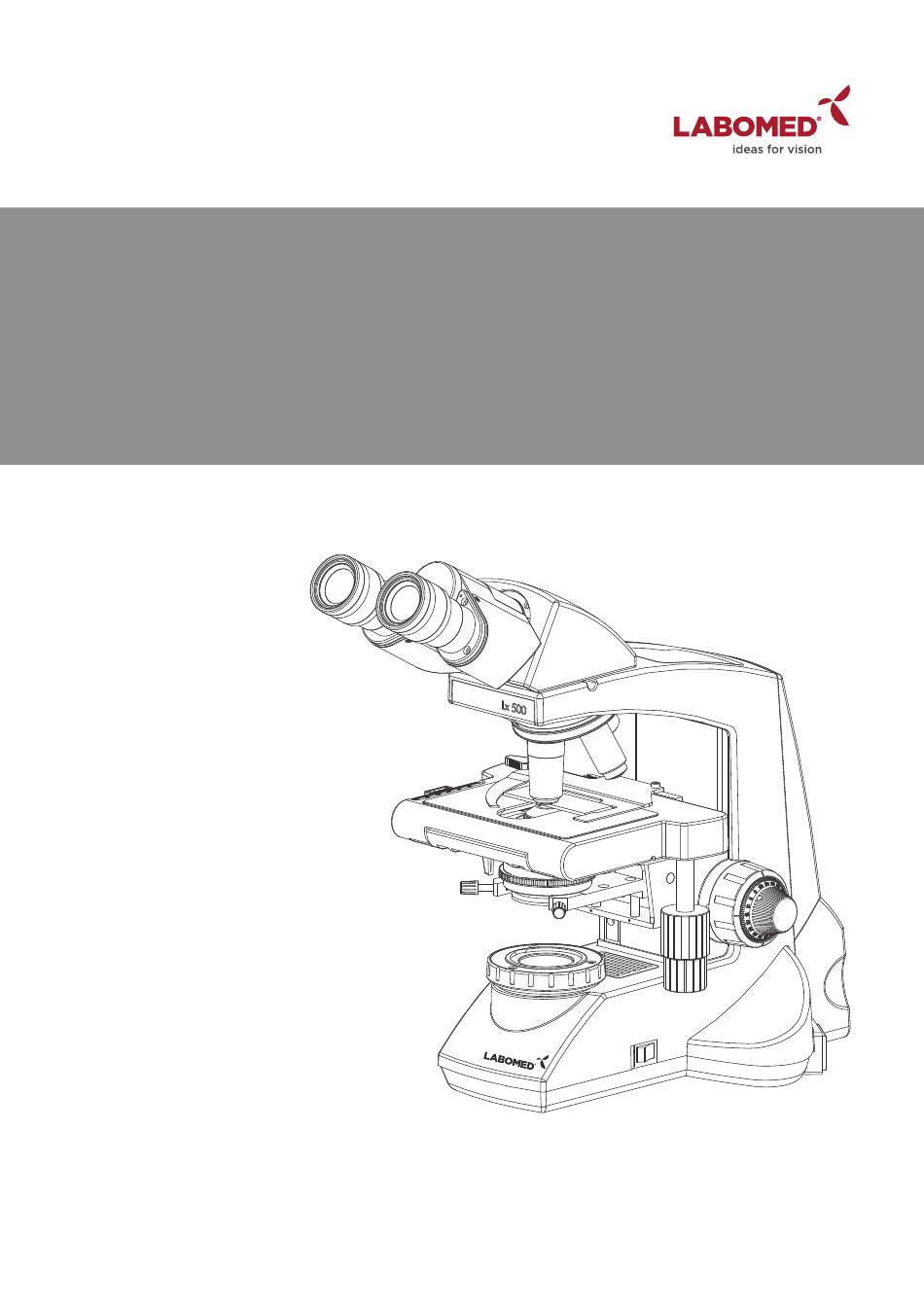

- Page 1 Lx 500 Research Microscopy User Manual To ensure proper use of this instrument as well as to avoid injury while operating Part No: 9144000-795 Issue 1.6 Instrument, understanding this manual completely before use is highly recommended. Printed on April,2022...
-
Page 2: Table Of Contents
Lx 500 TABLE OF CONTENTS 1. INTRODUCTION 2. SAFETY INFORMATION 3. Lx 500 BINOCULAR 4. Lx 500 TRINOCULAR 5. Lx 500 ERGONOMIC 6. STANDARD COMPONENTS 7. OPTIONAL ACCESSORIES 9-10 8. INITIAL SETUP 9. ASSEMBLY 12-13 10. SUMMARY OF BRIGHT FIELD OBSERVATION PROCEDURE 11. -
Page 3: Introduction
Lx 500 INTRODUCTION The Lx 500 is a research microscope with a modern design and the latest in optical and mechanical advancements. Designed for professionals as well as clinicians, this microscope offers many features and functions for a diverse of applications. Here are some of the benefits of the Lx500: -Extra clarity and contrast is provided through a 360°... -
Page 4: Safety Information
Do not place microscope on a flexible surface, as this could result in blocking the air vents and cause overheating. 3. Always use the power cord provided by LABOMED. If the proper power cord is not used, product safety performance cannot be warranted. - Page 5 Lx 500 Caution If the microscope is used in a manner not specified by this manual, the safety of the user may not be warranted. In addition, the equipment may also suffer damage. Always use the equipment as outlined in this instruction manual.
- Page 6 Lx 500 CARE & MAINTENANCE Your microscope had been engineered for a long and safe operational life with the minimal maintenance required. In general, routine maintenance is limited to keeping the microscope working parts lubricated and optics clean. Always cover the microscope with a dust cover when not in use.
-

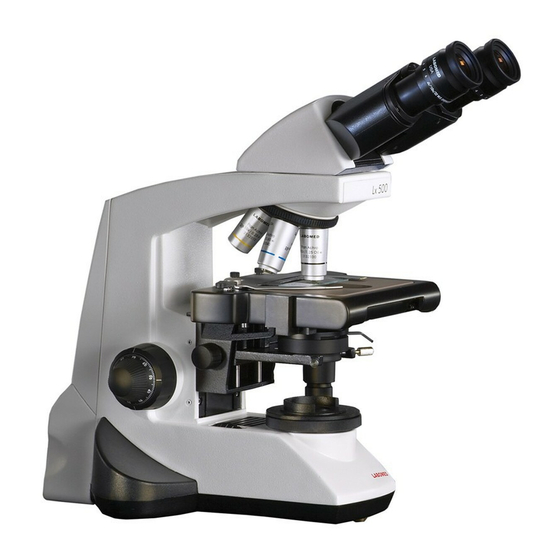

Page 7: Lx 500 Binocular
Lx 500 Lx 500 BINOCULAR Binocular viewing tube, 30° inclined Eyepieces Observation tube clamping screw Revolving nose piece Objectives Specimen holder Mechanical stage Aperture iris Diaphragm ring Abbe condenser Coarse and Filter holder fine focus knob Lamp housing Koehler mount... -
Page 8: Lx 500 Trinocular
Lx 500 Lx 500 TRINOCULAR Trinocular Port Trinocular viewing tube, 30° inclined Eyepieces Observation tube clamping screw Revolving nose piece Objectives Specimen holder Mechanical stage Aperture iris diaphragm ring Abbe condenser Coarse and Filter holder fine focus knob Lamp housing... -
Page 9: Lx 500 Ergonomic
Lx 500 Lx 500 ERGONOMIC BINOCULAR Eyepieces Ergonomic Binocular viewing tube, 0° to 25° inclined Observation tube clamping screw Revolving nose piece Objectives Specimen holder Mechanical stage Aperture iris diaphragm ring Coarse and Abbe condenser fine focus knob Filter holder... -
Page 10: Standard Components
Lx 500 STANDARD COMPONENTS After removing your microscope from its packaging, you may observe the following contents .Please note that the contents of your microscope may vary as the optional configuration, contrasting method or viewing body opted for may not be of the standard configuration highlighted here”. -
Page 11: Optional Accessories
Lx 500 OPTIONAL ACCESSORIES SYSTEM DIAGRAM OF OPTIONAL ACCESSORIES CMB CAMERA ADAPTER ATLAS CMOS CAMERA VEGA CMOS CAMERA IVU TOUCH SCREEN WF 10x WF 16x WF 20x BINOCULAR HEAD TRINOCULAR HEAD ERGONOMIC HEAD RP 4x RP 10x RP 20x RP 40x (SL) - Page 12 Lx 500 INSTALLATION AND OPERATION OF OPTIONAL ACCESSORIES CAMERA MODULE SYSTEM 1. Mount the Video adapter provided on Trinocular observation head. 2. Mount Camera Module System on Video adapter. Fig. 4 OPTIONAL EYEPIECES 10X eyepieces are provided. To replace: 1. Pull out the 10x eyepieces out from the observation heads Ocular tube.
-
Page 13: Initial Setup
Lx 500 INITIAL SETUP OBJECTIVES Objectives are factory set. They are par-centered and parfocal- ised during assembly. All objectives have been secured for a tight fit to prevent them from coming loose during transit. To remove an objective, rotate it counter clockwise while holding it with a rubber grip to avoid any slippage. -
Page 14: Assembly
3. Replace the lamp house cover. Always use the designated bulb. Using a bulb other than those specified by LABOMED may lead to a fore hazard and decenter- ing of light . Fingerprints or stains on the lamp bulb reduce its life. - Page 15 3. Detach connector of connecting wires (4) . 4. Remove two screws (6) provided on battery clamp with phillips screw driver . 5. Replace existing battery with new battery from Labomed (refer part no. below) 6. Reverse steps 5 to 1, to complete the process .
-
Page 16: Summary Of Bright Field Observation Procedure
Lx 500 SUMMARY OF BRIGHT FIELD OBSERVATION PROCEDURE Flip the main switch to “ON” Place the specimen on the stage. On/Off A/C Inlet Engage the 10X objective in the light path. Bring the specimen in focus. Adjust the observation tube and eyepieces Adjust the interpupillary distance. -
Page 17: Detailed Observation Procedure
Lx 500 DETAILED OBSERVATION PROCEDURE TURNING THE LAMP ON 1. Flip the main switch to “I” (ON) as shown in figure 13. Fig. 13 2. Rotating the light intensity adjustment knob (Fig. 14) in the direction of the arrow increases brightness and rotating knob in the opposite direction decreases brightness. - Page 18 Lx 500 Cover glass Cover glass This is the glass plate placed on the specimen. For optimum optical performance, the cover glass thickness, which is the distance from its surface to the specimen surface, should be 0.17mm. Slide glass Slide glass Fig.
- Page 19 Lx 500 ADJUSTING THE INTERPUPILLARY DISTANCE (IPD) The inter-pupillary distance adjustment consists of regulating the two eyepieces to align with both eyes’ pupils so that you can observe a single microscope image through two eyepieces in stereo vision. This greatly helps to reduce fatigue and discomfort during observation.
- Page 20 Lx 500 CENTERING THE CONDENSER There is a possibility of having the condenser de-centered during shipping. it is mandatory to check the centering before observing the specimen as it is required to distribute even light to the specimen. For models with Koehler illumination: 1.
- Page 21 USING THE 100X IMMERSION OBJECTIVE The designated immersion oil should be in contact with the cover lens of the 100X immersion objective. If not, the specimen will appear distorted and dull. It is recommended that LABOMED immersion oil is always used. Immersion Process 1.
-
Page 22: Troubleshooting Guide
Under certain conditions, performance of the unit may be adversely affected by factors other than defects. If problems occur, please review the following list and take corrective action as needed. If problem persists, please contact LABOMED or your local LABOMED dealer. OBSERVATION... - Page 23 Lx 500 OBSERVATION CAUSE REMEDY Set the specimen correctly with the 8. Objective hits the specimen when The specimen slide is upside down cover glass facing upwards an objective is switched to a higher magnification objective The cover glass is too thick Use a cover glass with thickness of 0.17mm...
-
Page 24: Specifications
Lx 500 SPECIFICATIONS 1. Illumination Built-in illumination system Halogen/ LED 2. Focusing mechanism Stage height adjustment mechanism Fine adjustment scale: 0.003m per graduation Fine adjustment stroke: 0.3mm per turn Total stroke: 12.7mm Co-axial coarse and fine focusing on ball drive 3. - Page 25 Revision History DCR # Rev. No. Date of Release Change App. By April 14, 2022 DCR/06/22 Reviewed & Up S.Bal dated for typo error...
- Page 26 Labo America Inc. 920 Auburn Court Fremont, CA 94538 U.S.A. Phone: 510-445-1257 Fax: 510-991-9862 Email: sales@laboamerica.com www.laboamerica.com EU REP. Labomed Europe Essebaan 50 NL-2908 LK Capelle a/d IJssel The Netherlands Tel: +31 (0)10 4584222 Fax: +31 (0)10 4508251 E-mail: info@labomedeurope.com...
