10. INSTRUCTIONS FOR USING THE MICROSCOPE
WARNING:
SETTING UP OF MICROSCOPE:
1. Lock all the brakes on base wheels after
setting up of microscope on the attendance
area for stability.
2. Although tension on microscope is factory
present as per the ordered configuration. Still
user can adjust up and down force by tuning
the allen screw clockwise or anticlockwise
with the help of a 8mm allen wrench.

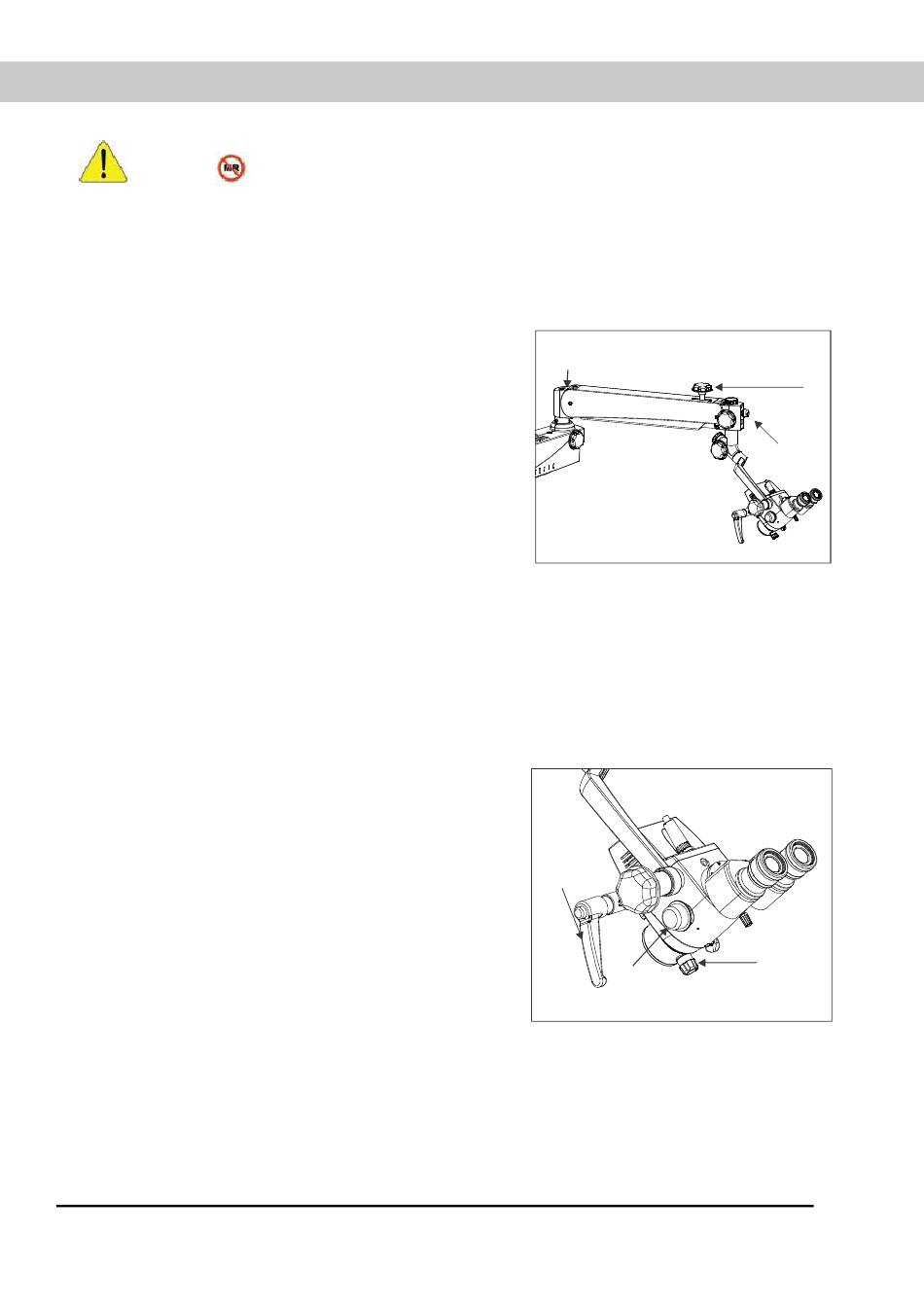

Refer Fig.-12 to see the exact location of
tension adjusting screw.
3. Lock the up & Down movement of
suspension arm using locking knob (B) in
fig.-12 after focusing of the area of interest.
4. Adjust the eye distance as per IPD scale
According to your convenience.
5. The illumination is controlled through the
control knob (A), fig.-12. Rotate it clockwise
or anticlockwise to achieve desired illumina-
ation level.
SETTING UP OF MAGNIFICATION
(Ref. Fig. 13)
1. Adjust to highest magnification with one of
the rotating knobs (11a) provided at magnifi-
cation changer.
2. Fine focusing is done by knob provided on
CMO shown as (11d) in fig. 13.
3. Centering of observation area in field of
view can be done by up & down movement
with the help of manual handles (11c).
4. Make sure that the magnification changer is
engaged in the index point at the click stop
position.
6210000-795
INSTRUMENT IS UNSAFE FOR MRI ENVIRONMENT.
Tension
adjustment screw
11c
Prima Mµ
A
Fig. 12
11d
11a
Fig. 13
Issue 1.6
Printed on Jan.,2021
Prima Mµ
B
13
