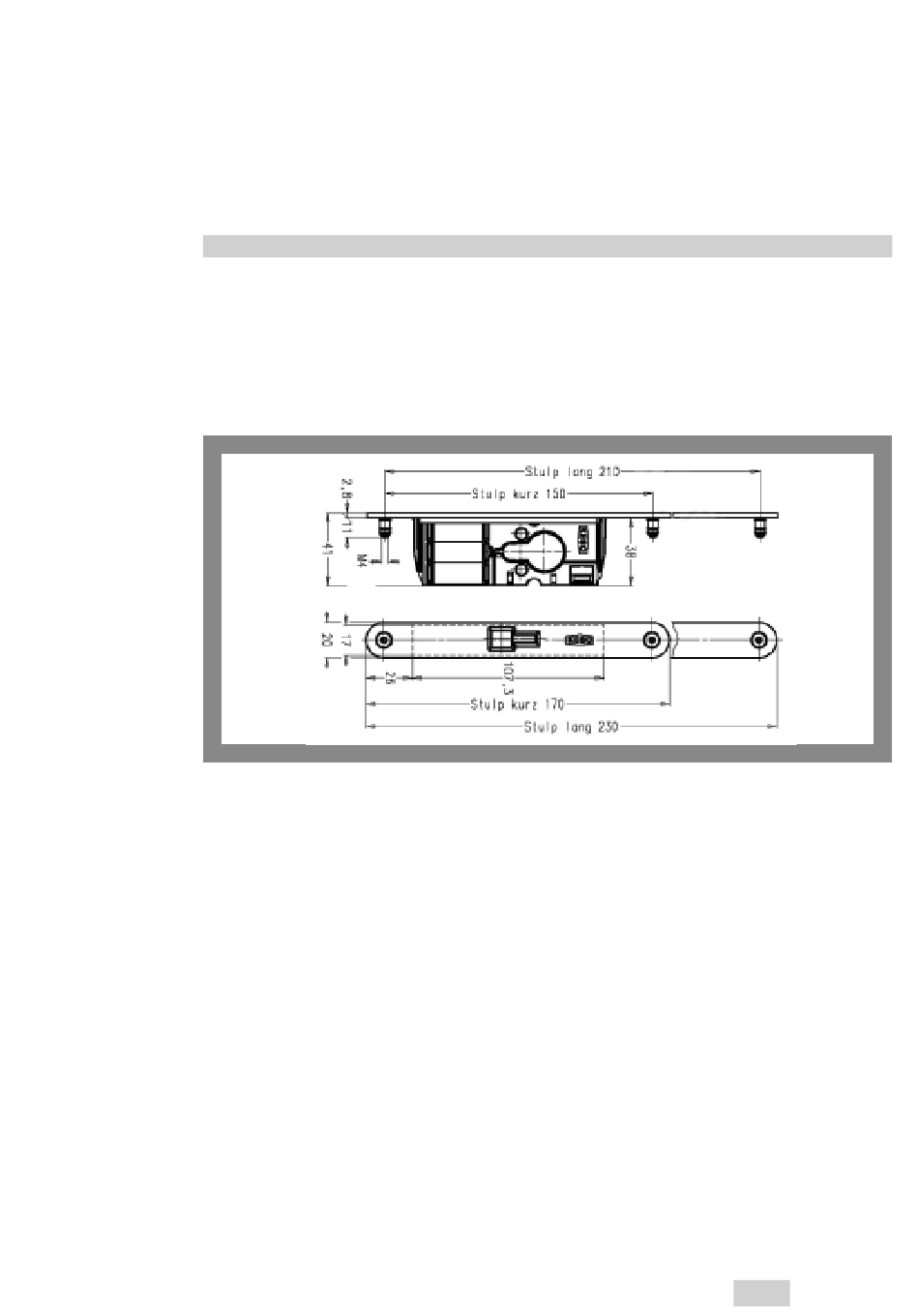

Fig. 11:
Dimensional drawing
electronics EG.707
in the faceplate
4 Installation and commissioning
How to mount the electronics in the face plate
If the electronics are to be concealed in the door, mount the electronics in the face plate. Please note the
following:
· Use the installation example as a reference „4.5.1 Für Montage im Stulp", Seite 32.
· The door must be milled out according to the dimension drawings of the selected face plate housing.
· Mount the face plate housing with 2 M4 screws and 2 stretching thread inserts.
· If the distance between face plate housing and cylinder is greater than 0.5 m, use a connection plug
and an extension cable to connect the face plate housing to the cylinder, see„4.4 Kabel verlängern",
Seite 30.
EN
89
