KESO KEK i-turn
Documentation
1
Introduction ............................................................................3
2
Product description..............................................................4
3
Application site ......................................................................4
4
Ordering information...........................................................4
5
Dimensional drawing ...........................................................5
6
Requirements .........................................................................6
7
Operation .................................................................................6
8
9
Alarm and status signals......................................................8
10
Installation ...............................................................................9
11
Replacing the batteries..................................................... 10
12
Emergency power / emergency opening.................... 11
13
Technical data...................................................................... 12
14
Accessories and individual parts ................................... 13
15
Appendix ............................................................................... 14
16
Service & support ............................................................... 15
17
Notes....................................................................................... 16
Date of issue:
29.10.2010
Version:
009
ASSA ABLOY is the global leader in door opening solutions.
TM
..................................6
ASSA ABLOY,
the global leader in
door opening solutions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Assa Abloy KESO KEK i-turn
Summary of Contents for Assa Abloy KESO KEK i-turn
-
Page 1: Table Of Contents
Accessories and individual parts ........13 Appendix ................14 Service & support ............... 15 Notes..................16 ASSA ABLOY, the global leader in Date of issue: 29.10.2010 door opening solutions Version: ASSA ABLOY is the global leader in door opening solutions. -
Page 2: Introduction
KESO KEK i-turn Introduction This documentation is part of the KESO KEK i-turn thumbturn product family. It contains important information on product handling and set-up operations. For this reason, you should familiarise yourself with the content and, in particular, observe the instructions on safe handling, operation and installation. -
Page 3: Product Description

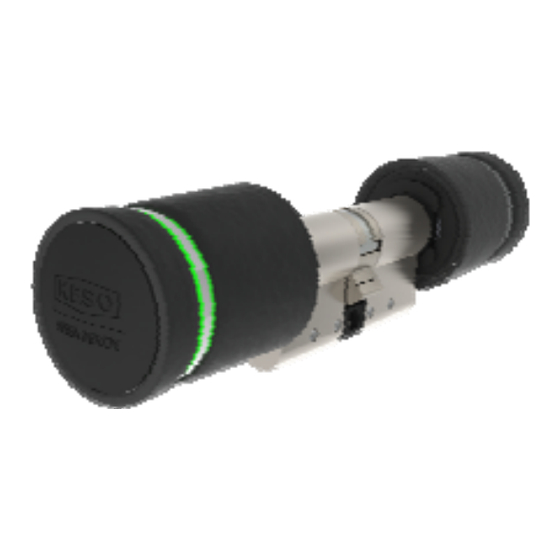

KESO KEK i-turn Product description The KESO KEK i-turn thumbturn is an electronic cylinder. It is intended for indoor use only in locations where stricter control and safety requirements need to be met. The KESO KEK i-turn thumbturn can be easily and quickly installed into existing doors without any wiring. -
Page 4: Dimensional Drawing
KESO KEK i-turn Dimensional drawing KESO KEK i-turn thumbturn double knob cylinder in EU profile Article No.: 21.43V Euro profile cylinders: Diameter ø17 mm with valve cut-out 36.5 50.5 Outside Inside KESO KEK i-turn thumbturn single cylinder in EU profile Article No.:... -
Page 5: Requirements
KAPI programming cable. Battery requirements The KESO KEK i-turn thumbturn is fully battery-operated. Note the signals which indicate the battery is running low. In cold weather, or if fitted in “cold” environments, check the battery status several times a year. You can check the battery status using the KESO KEK Programmer PPG V2 or a multimeter. - Page 6 KAPI cable (see Item 14.6). KESO k-entry Management Software settings The KEK settings for the KESO KEK i-turn thumbturn can be programmed using the KESO k-entry Management Software. Release time: Once access has been enabled, the outside knob remains engaged for the pre-set time.
-
Page 7: Alarm And Status Signals
KESO KEK i-turn Alarm and status signals Alarm and status signals can be set or changed at any time using the KESO k-entry Management Software (see Item 8.4). Such messages are set by default for each delivery as follows: Function... -
Page 8: Installation
KESO KEK i-turn Installation Follow the installation instructions; your warranty becomes invalid if the product is used or installed incorrectly. Read this installation guide carefully before installing. If you have any queries regarding installation, please contact your dealer. 10.1 Individual parts of double door knob Pos. -
Page 9: Replacing The Batteries
KESO KEK i-turn Replacing the batteries Remove cover Replace cover KESO AG, 10/2010 Subject to change Page 10 of 18 Pages... -
Page 10: Emergency Power / Emergency Opening
An authorised KESO identification medium must be inserted into, or placed on the KESO KEK Programmer PPG V2. Insert the KAPI programming cable into the KESO KEK i-turn thumbturn interface. Connect the KAPI programming cable to the KESO KEK Programmer PPG V2. -
Page 11: Technical Data
KESO KEK Programmer PPG V2 Certification: Application type: interior stand-alone 13.2.1 Data regarding KESO KEK i-turn thumbturn double knob cylinder Standard cylinder length: min. 30.5/30.5 mm max. 80.5/80.5 mm Extendable on inside: 5 mm increments up to a max. 50 mm extensions Extendable on outside: 5 mm increments up to a max. -
Page 12: Accessories And Individual Parts
KESO KEK i-turn Accessories and individual parts 14.1 Inside door knob mechanism Article no.: E.071 14.2 Outside door knob mechanism (without electronics) Article no.: E.072 14.3 Black cover Article no.: E.066/92 Packing unit: 10 units per pack 14.4 Battery Article no.: K.533... -
Page 13: Appendix
KESO KEK i-turn Appendix 15.1 Maintenance / Care / Repair To ensure trouble-free operation of all electronic systems, we recommend calling in an approved service partner to carry out annual maintenance. Approved service partners will be pleased to provide you with information regarding maintenance contracts. -
Page 14: Service & Support
KESO KEK i-turn Service & support 16.1 Specialist service The first point of contact is your dealer. 16.2 KESO Support Software and hardware updates http://www.keso.com/de/site/KESO/Downloads/Software/ Telephone KESO support You can contact our support team between Monday and Friday from 7:30 am to 12 pm and again from 1 pm to 5 pm on the telephone number +41 44 787 34 33. -
Page 15: Notes
+41 21 811 29 00 Telefax +39 51 681 24 01 E-Mail info@keso.de E-Mail keso.sa@keso.com E-Mail info@keso.it Internet www.keso.de Internet www.keso.com Internet www.keso.it ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safty and convenience.
