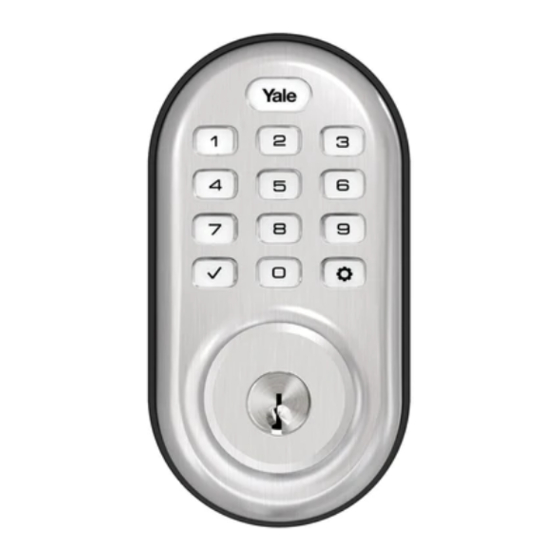

Yale Assure Lock
®
®
Push Button Deadbolt
®
Installation and Programming Instructions
(
YRD
216/YRD416)
Optional
Network Module
Before you begin
DOWNLOAD
THE BILT APP
for step-by-step installation
instructions & to register
your product
x3
#8-32 x 5/16"
Machine screws
x4
x2
#7 wood & #8-32
M6x59.5mm
machine x 20mm
Long through bolt
Combination screws
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO
THE PRODUCT AND VOID THE FACTORY WARRANTY
1
P/N
YRL PBINSTL FUL
-
-
Rev E
Advertisement
Related Manuals for Assa Abloy Yale Real Living Assure Lock YRD216
Summary of Contents for Assa Abloy Yale Real Living Assure Lock YRD216
- Page 1 Yale Assure Lock ® ® Push Button Deadbolt ® Installation and Programming Instructions 216/YRD416) Optional Network Module Before you begin DOWNLOAD THE BILT APP for step-by-step installation instructions & to register your product #8-32 x 5/16" Machine screws #7 wood & #8-32 M6x59.5mm machine x 20mm Long through bolt...
- Page 2 Preparing Door YRL PBINSTL FUL Rev E...
- Page 3 Installing Latch & Strike Plate 2-3/8" position d faut 2-3/4" position optional Pull Press Bolt must be in retracted (unlocked) position. Note horizontal orientation of mechanism. YRL PBINSTL FUL Rev E...
- Page 4 Installing Keypad Escutcheon Inside of Door Outside of Door Bolt must be in retracted (unlocked) position. Note horizontal orientation of mechanism. YRL PBINSTL FUL Rev E...
- Page 5 Installing Interior Mounting Plate Loosen screw to remove cover. YRL PBINSTL FUL Rev E...
- Page 6 Attaching the Cable Assembly YRL PBINSTL FUL Rev E...
- Page 7 Installing Interior Escutcheon YRL PBINSTL FUL Rev E...
- Page 8 Testing Operation Bolt must be in retracted (unlocked) position before installing batteries. YRL PBINSTL FUL Rev E...
- Page 9 Testing Operation YRL PBINSTL FUL Rev E...
- Page 10 Installing Optional Network Module Installing Batteries & Cover Tighten screw to replace cover. Congratulations, you've installed the Yale Assure Lock ® ® Push Button Deadbolt ( 216)! Continue with Programming Instructions to customize your product. YRL PBINSTL FUL Rev E...
- Page 11 Programming Instructions Low Battery Warning- Flashes RED Lock-out Mode- Keypad Flashes Privacy Mode Button Exterior Escutcheon Interior Escutcheon Master Code must be created before any further programming. Max User Codes = 250 with Network Module. Max User Codes = 25 without. YRL PBINSTL FUL Rev E...
- Page 12 Creating Master Code Press Press Press Enter 4-8 digit Master Code. Press YRL PBINSTL FUL Rev E...
- Page 13 Creating User Codes Master code must be created first. *Max User Codes = 250 with Network Module. Max User Codes = 25 without. Enter Master code Press Press Press Press Enter 4-8 digit code Press Press YRL PBINSTL FUL Rev E...
- Page 14 Unlocking Door with Code Enter PIN Press "Unlock" Code Chart Duplicate if necessary PIN Code Management (With Network Module - Up to 250 Users) User Type User Name User # PIN Code Master User ___ User ___ User ___ User ___ User ___ User ___ User ___...
- Page 15 Resetting Lock to Factory Default When lock is reset to factory defaults all user codes (including the Master code*) are deleted and all programming features are reset to original default settings (see below). 1. Remove the battery cover and batteries. 2.
- Page 16 Definitions All Code Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all user (except Master) code access. When attempting to enter a code while the unit is in Lockout, the keypad flashes 8 times and the lock beeps 3 times as well. Audio Mode: Choosing Disable (3)
- Page 17 Feature Programming Through Menu Mode Using Master code* key. 1. Enter the 4-8 digit Master PIN code followed by the 2. Enter digit corresponding to the function to be performed followed by the key. *The Master code must be registered prior to any other programming of the lock. Master Code Setting User...
- Page 18 Programming Troubleshooting Symptom Suggested Action • Press each keypad button for response when pressed. • Check batteries are installed and oriented correctly (polarity) Lock does not respond – in the battery case. door is open and • Check batteries are in good condition; replace batteries* accessible.
- Page 19 Hardware Troubleshooting Cycle lock in both the locked and unlocked positions. If problems are found: Bolt will not deadlock a. Check for sufficient clearance of the bolt within the strike-side jamb. Correct this by increasing the depth of the pocket for the bolt. b.
- Page 20 Cet appareillage numérique de la classe A répond à toutes les exigences de l'interférence canadienne causant des règlements d'équipement. Product Support Tel 1-855-213-5841 • www.yalehome.com Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company. Yale®, Yale Real Living® and Assure Lock® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group company.
- Page 21 ® ® Yale Real Living Z -Wave Plus Module ® Installation and Programming Instructions ® Installing the Z -Wave Plus Module IMPORTANT: the batteries must be removed prior to removing and/or inserting the network module: • Remove battery cover and batteries. •...
- Page 22 Product Support Tel 800.810.WIRE (9473) • www.yalelocks.com Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2016, Yale Security Inc., an ASSA ABLOY Group company.
- Page 23 Yale Locks YRD416 Z-Wave Plus System Integrators Guide Yale Assure Deadbolt Lock Document Revision: 1 January 14, 2019...
-
Page 24: Table Of Contents
Contents Yale Z-Wave Plus Product Info ........................3 Supported Command Classes ........................3 Association Table ............................ 3 Notifications Table ..........................4 Configurable Parameters ......................... 6... -
Page 25: Yale Z-Wave Plus Product Info
Yale Z-Wave Plus Product Info Manufacturer ID: Assa Abloy (0x0129) Z-Wave Device Type: Door Lock Keypad Z-Wave Role Type: Listening Sleeping Slave (LSS) Product ID: 0x1000 Product Type ID: 0x8004 – YRD416-ZW2 (Push Button Deadbolt) Supported Command Classes Command Class Z-Wave Plus Info... -
Page 26: Notifications Table
Notifications Table Alarm Alarm Reports Alarm Level Description type 0x00 Master code was changed at keypad Master Code changed. 0xFB Master code was changed over RF 0x70 0x(01-max User added User added. Alarm level = user slot number users) 0x(01-max User deleted 0x21 User was deleted. - Page 27 Where Alarm level represents user slot number Alarm generated in response to add user RF cmd. This alarm is not generated when attempting to add Duplicate Pin-code 0x (01-max 0x71 duplicate pin at the keypad. The lock simply denies it error users) and plays the “Denied”.
-
Page 28: Configurable Parameters
Configurable Parameters Configuration Parameter Size Description Parameters Number Level control, 1 = High Volume, 3 = Silent. Default is 1 Silent mode on/off 1 1 byte or High Volume Auto Relock on/off 2 1 byte 0x00 = OFF, 0xFF = ON default is 0x00 or OFF Auto Relock time 3 1 byte 10 to 180 seconds default is 30 seconds...
