The following test switch routes Input 1 to Output 2 on Level 0 (or use the level indicated on your
"AutoPatch Epica DG Connector Guide").
To execute the test switch:
1.
Enter the following BCS command line:
CL0I1O2T
When the "T" appears, the system has successfully executed the command. If any other character(s)
appears, the command was not successful. Verify that the source signal is present (visible and/or audible)
at the destination.
For a complete list of BCS commands and responses, see the BCS Protocol Instruction Manual on the
AMX AutoPatch CD or at www.amx.com.
Troubleshooting
If the test switch did not execute correctly:

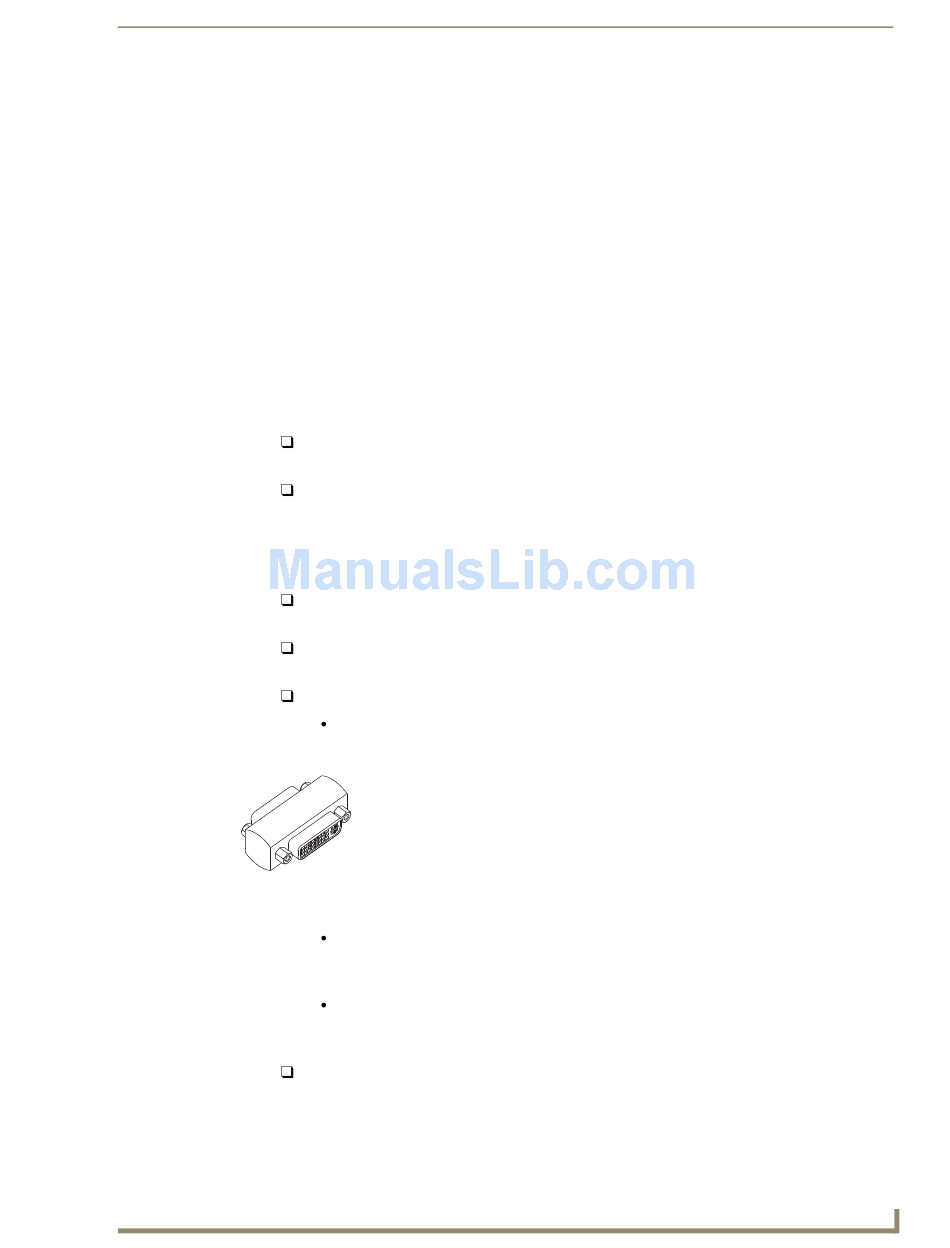

DVI cable adapter
FIG. 19
Epica DG Instruction Manual
Check the power indicator on the front of the enclosure.
If it is not illuminated, check the power cords.
Verify the status of the test switch.
If using BCS commands, enter "SL0O2T". If "SL0O2T(1)" appears, the test switch is
routed.
If the status returns as routed correctly, the system established a connection between the
specified input and output connectors within the enclosure.
Check all link and signal connections on the rear of the enclosure(s) to make sure everything is
physically set up correctly.
Check all power switches on the source and destination devices to make sure they are all
turned on.
Depending on the board type:
Isolate source/destination equipment and cable problems by patching around the router
using cable adapters (FIG. 19) to check the overall signal path.
Check the MTP fiber connectors to make sure they are fully inserted into the fiber
module and that there is no dust or debris on the exposed fiber ends of the cable or on the
module.
Check the documentation for the fiber conversion modules to be sure they are installed
correctly. Isolate source and destination devices using the fiber conversion modules to
bypass the enclosure to check the fiber cable and overall signal path.
Attempt the switch again.
If the switch still does not work, contact technical support (see page 40).
Installation & Setup
39
